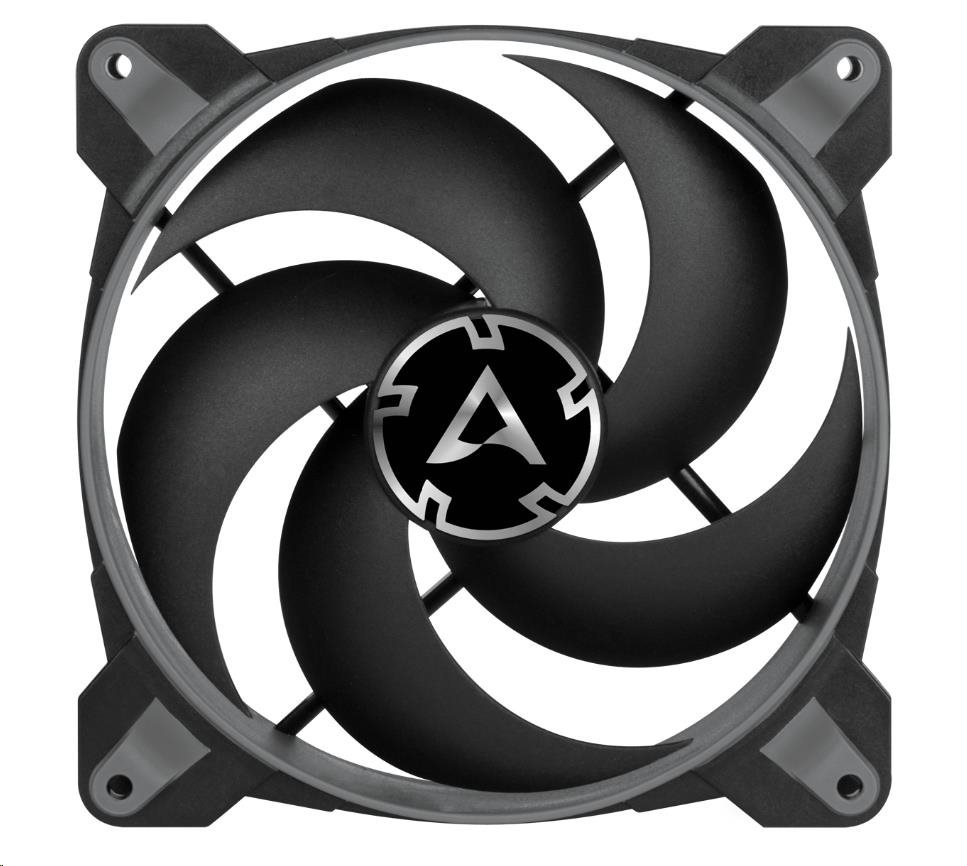

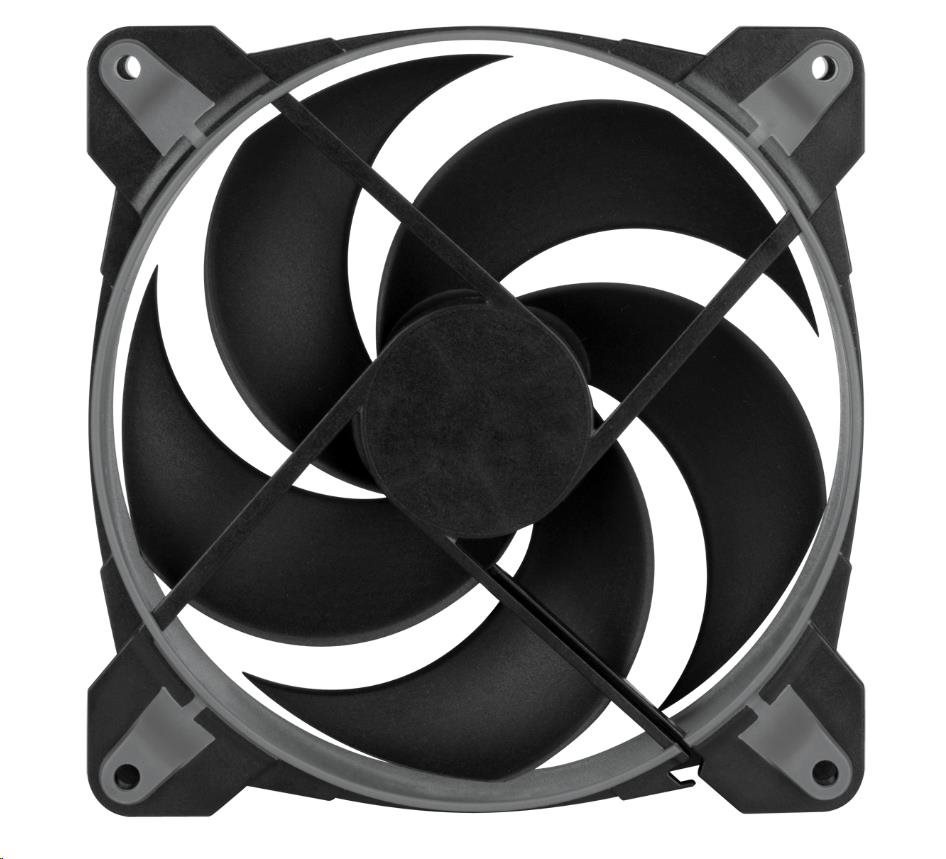

ARCTIC ventilátor BioniX P140 PWM PST 140x140x28mm, šedá

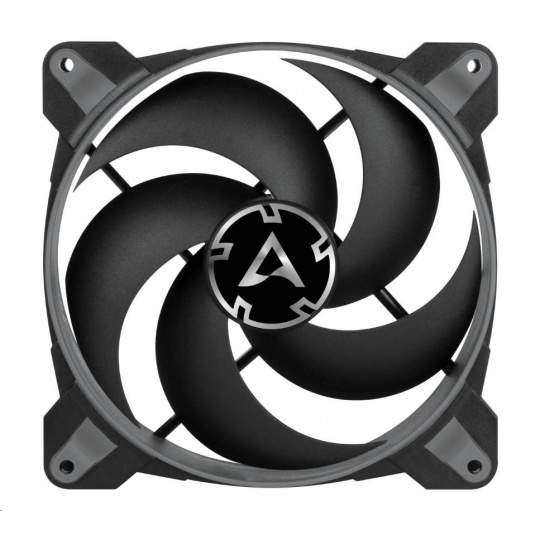

BioniX P140
- OPTIMISED FOR STATIC PRESSURE - During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure.
The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators. - MORE EFFICIENT TECHNOLOGY - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
- MAXIMUM QUIETNESS, MINIMUM VIBRATION - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor. - EXTENDED LIFE SPAN - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
- 200 TO 1950 RPM REGULATED VIA PWM PST - With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
- HIGH QUALITY BEARING - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TECHNICAL SPECIFICATIONS
| Performance | |
| Fan Speed | 200 - 1950 rpm |
| Airflow | 77.6 CFM / 131.92 m3/h |
| Static Pressure | 2.85 mm/H2O |
| Noise Level | 0.45 Sone |
| Fan | |
| Fan Frame | BioniX |
| Controll Type | PST |
| Connector | 4-Pin-Connector + 4-Pin-Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 0 V |
| Current / Voltage | 0.15 A / 12 V |
| Cable Leght | 400 mm |
| Size & Weight | |
| Lenght | 140 mm |
| Width | 140 mm |
| Height | 28 mm |
| Weight | 181 g |
.
ParametryPorovnání
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Barva podsvícení
bez podsvícení
Napájecí konektor
4pin
Velikost ventilátoru
140x140
