ASUS MB Sc AM4 ROG STRIX B550-F GAMING, AMD B550, 4xDDR4, 1xDP, 1xHDMI

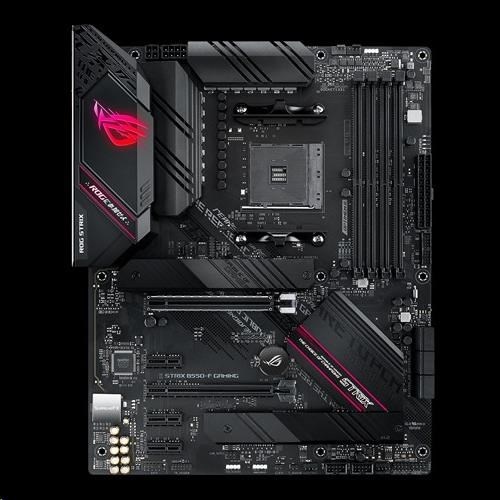

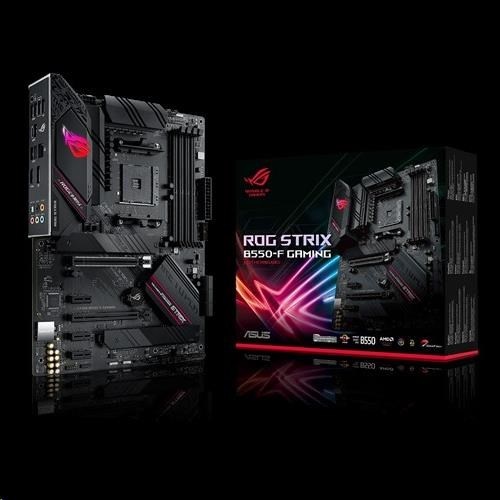

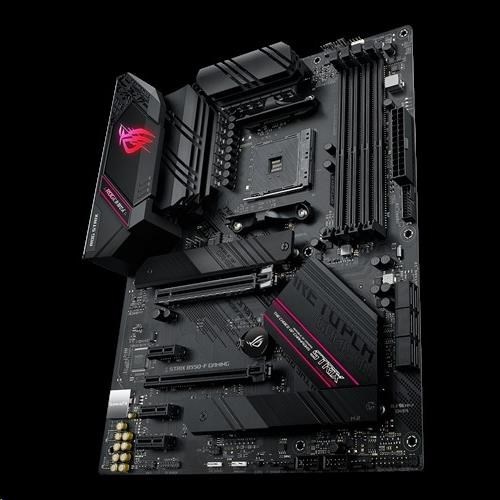

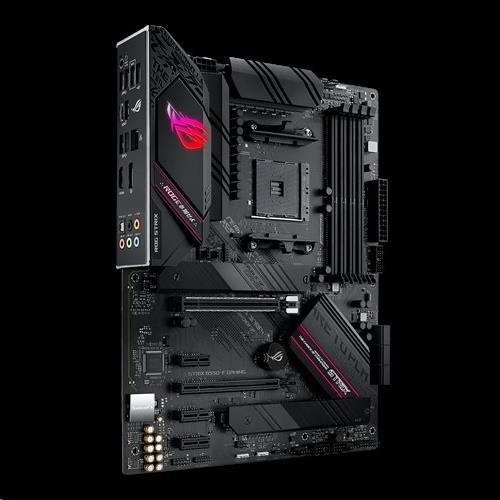

ROG STRIX B550-F GAMING
AMD B550 ATX gaming motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Best gaming connectivity: PCIe®0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
TECHNICAL SPECIFICATIONS
| CPU | AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * Refer to www.asus.com for CPU support list |
| Chipset | AMD B550 |
| Memory | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) |
| AMD B550 Chipset: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 | |
| LAN | Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature: - SupremeFX Shielding™ Technology - Gold-plated jacks - Optical S/PDIF in port(s) at back panel - Audio Shielding - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports | Rear USB Port (Total 8) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) |
| Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) | |
| Software Features | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot |

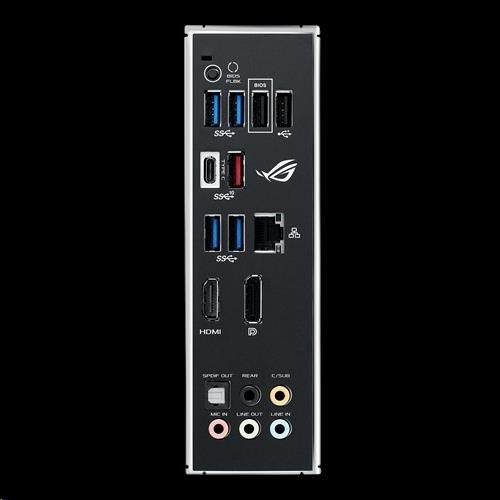

| Back I/O Ports | 1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |

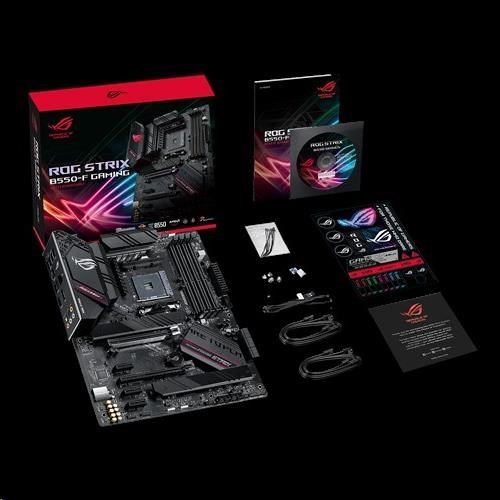

| Accessories | User's manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled. |
.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Chipset
AMD
Chipset
AMD B550
PCI Express x16
2
Podpora RAID
1
Podpora RAID
10
COM port
Ne
LPT port
Ne
Formát základní desky
ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
1
TPM
Ne
USB 2
6
USB 3
8
PCI
0
M.2 slot
2
VGA
0
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
3
USB C
1
