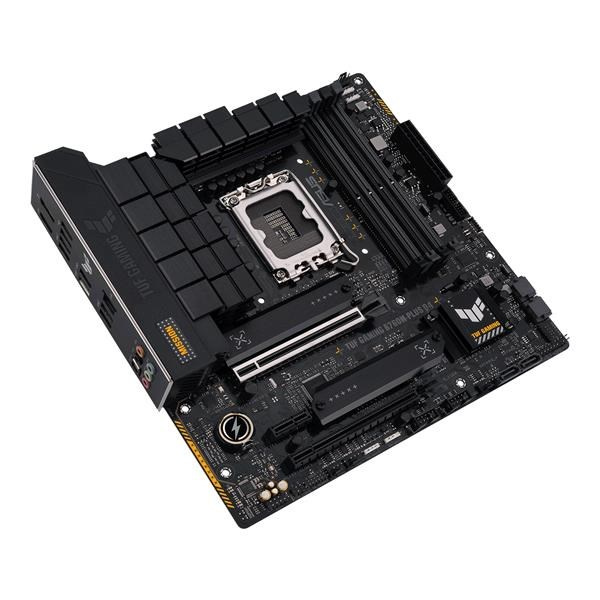

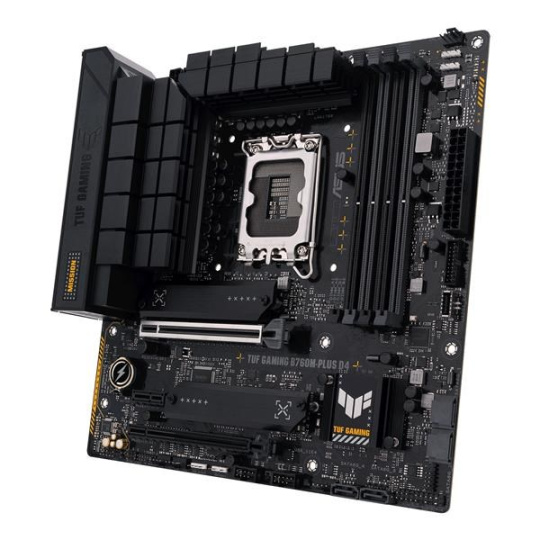

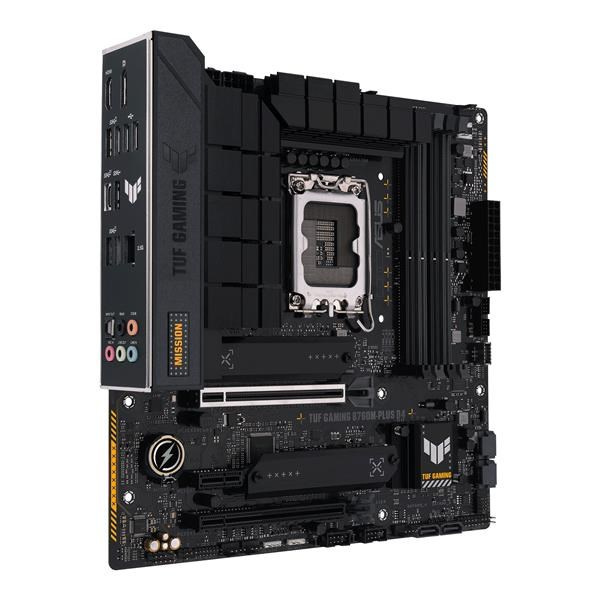

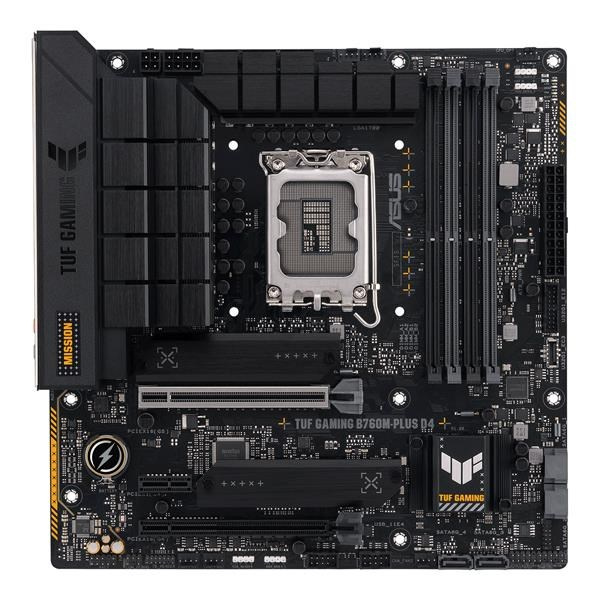

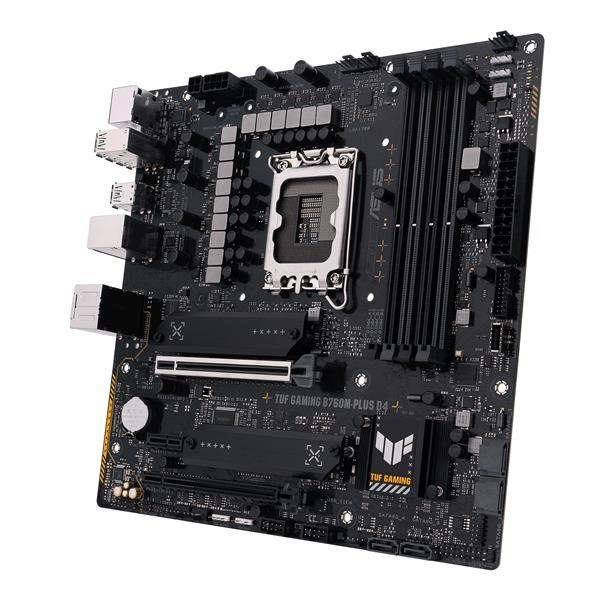

ASUS MB Sc LGA1700 TUF GAMING B760M-PLUS D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, mATX

Name: ASUS MB Sc LGA1700 TUF GAMING B760M-PLUS D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, mATX
Brand: ASUS
SKU: 431944
Price: 3929 CZK
Availability: OutOfStock

-13%

Kód: 431944

EAN: 4711387005316

Záruka: 36 Měsíc(ů)

Výrobce: ASUS

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

ASUS MB Sc LGA1700 TUF GAMING B760M-PLUS D4, Intel B760, 4xDDR4, 1xDP, 1xHDMI, mATX

TUF GAMING B760M-PLUS D4

TECHNICAL SPECIFICATIONS

CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B760 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel^® Extreme Memory Profile (XMP)
	OptiMem II
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
Graphics	1 x DisplayPort**
	1 x HDMI® port***
	*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® 13^th & 12^th Gen Processors
	1 x PCIe 5.0 x16 slot
	Intel® B760 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x1 slot
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® 13^th & 12^th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	Intel® B760 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
	4 x USB 3.2 Gen 2 ports (4 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)*
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports *
	* USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Dedicated audio PCB layers

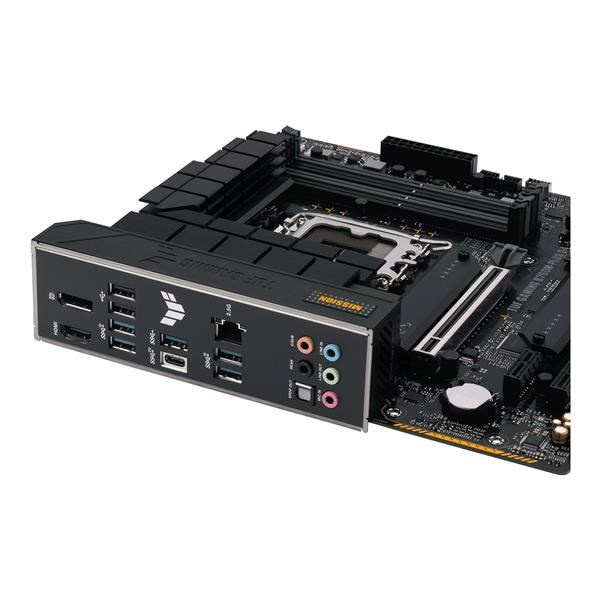

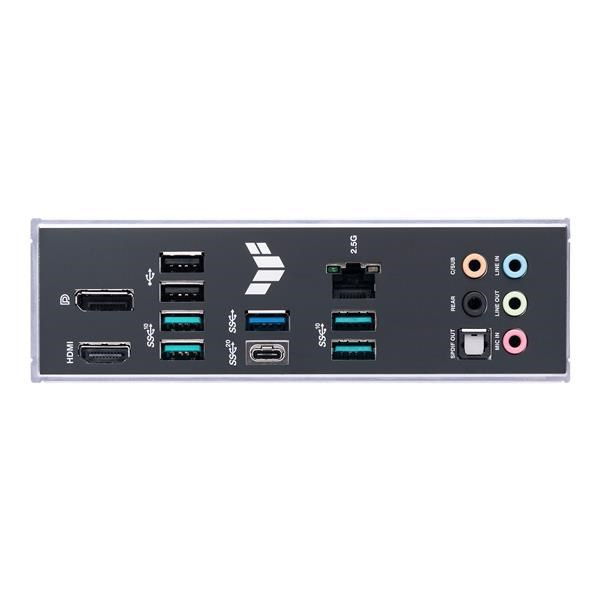

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
	4 x USB 3.2 Gen 2 ports (4 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI^® port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt™ (USB4®) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- CPU Socket lever protector
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	AURA Sync
	- AURA RGB header
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- AURA Creator
	- AURA Sync
	- Fan Xpert 2+
	- Power Saving
	- Two-Way AI Noise Cancelation
	AI Suite 3
	DIGI+ VRM
	- PC Cleaner
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton 360 for Gamers
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

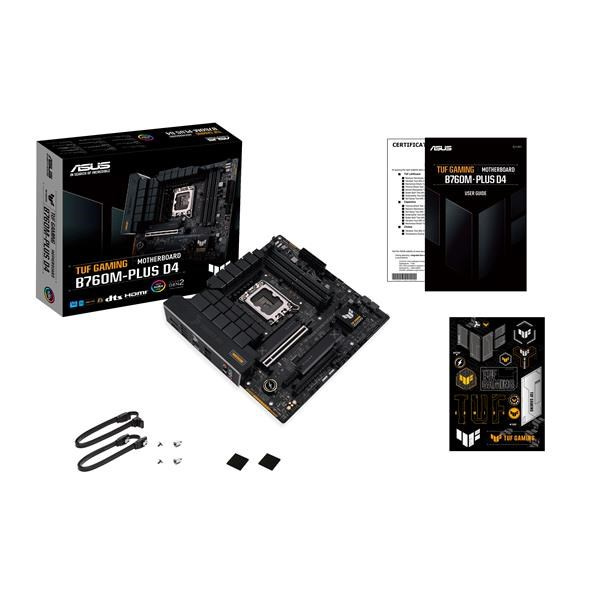

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x M.2 Rubber Package
	1 x M.2 SSD screw package
	1 x TUF Gaming sticker
	Documentation
	1 x TUF Certification card
	1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor
Form Factor	9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
