AC Input:

100V / 9A | 240V / 5A

Frequency:

47-63 Hz

+5V:

32A

+3,3V:

32A

+12V1:

57A

+5V & +3,3V combined:

190W

+5V & +3,3V +12V1 combined:

N/A

P.F.:

>0,9

-5V:

N/A

-12V:

0,8A

+5VSB:

3,5A

Maximum Load:

700W

20+4PIN:

===550mm===[24PIN]

SATA:

===550mm===[SATA]===200mm===[SATA]

SATA:

===550mm===[SATA]===200mm===[SATA]

SATA:

===550mm===[SATA]===200mm===[SATA]

Molex:

===550mm===[Molex]===200mm===[Molex]

Molex:

===550mm===[Molex]===200mm===[Molex]

Molex/Floppy:

===550mm===[Molex]===200mm===[Floppy]

8PIN PCIe (6+2):

===550mm===[PCIe]

8PIN EPS:

===550mm===[8PIN]

8PIN EPS (4+4):

===550mm===[EPS]

6PIN PCIe:

===550mm===[PCIe]

TTL signal cable (red/black):

===1140mm===[2PIN]

Buzzer reset cable (yellow/black):

===740mm===[2PIN]

System power LED (red/black/green):

===1130mm===[LED]

Specification:

ATX 12V 2.3

Form faktor:

PS II

Efficiency:

>80%

Dimension (DxWxH):

210 mm x 150 mm x 87 mm

PFC:

Active PFC (0,9)

Fan:

40mm fan (2x 40mm pro Module)

Security:

Metal frame

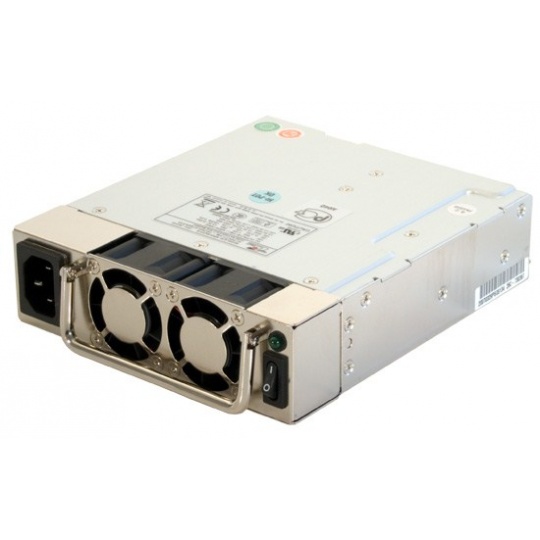

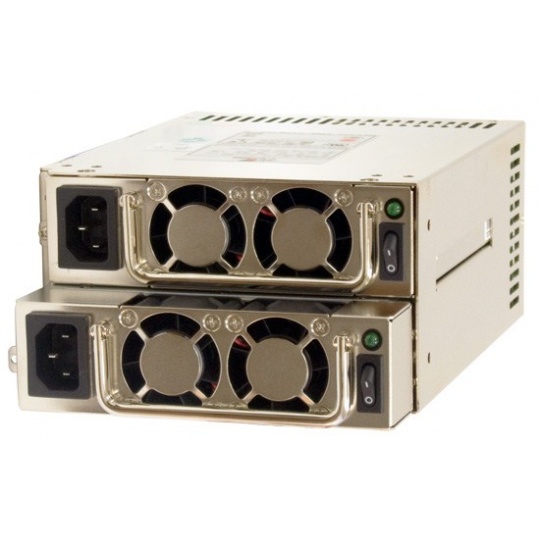

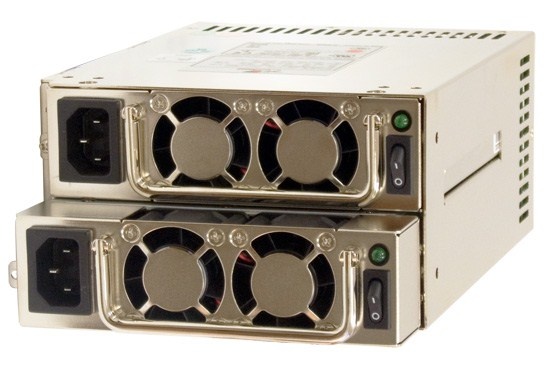

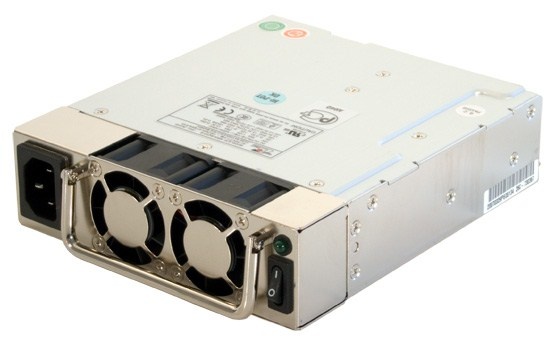

2 x 700W Module

TTL-Signal

Buzzer- & LED Alarm

Hot-swap, hot-plug features

Full range Eingang 100V~240V

Meet FCC, CISPR EMI regulation

Balanced load sharing design

UVP (Undervoltage protection)

Dual OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

OCP (Overcurrent protection)

OTP (Over Temperature Protection)

MTBF (mean time between failure): >100.000h
