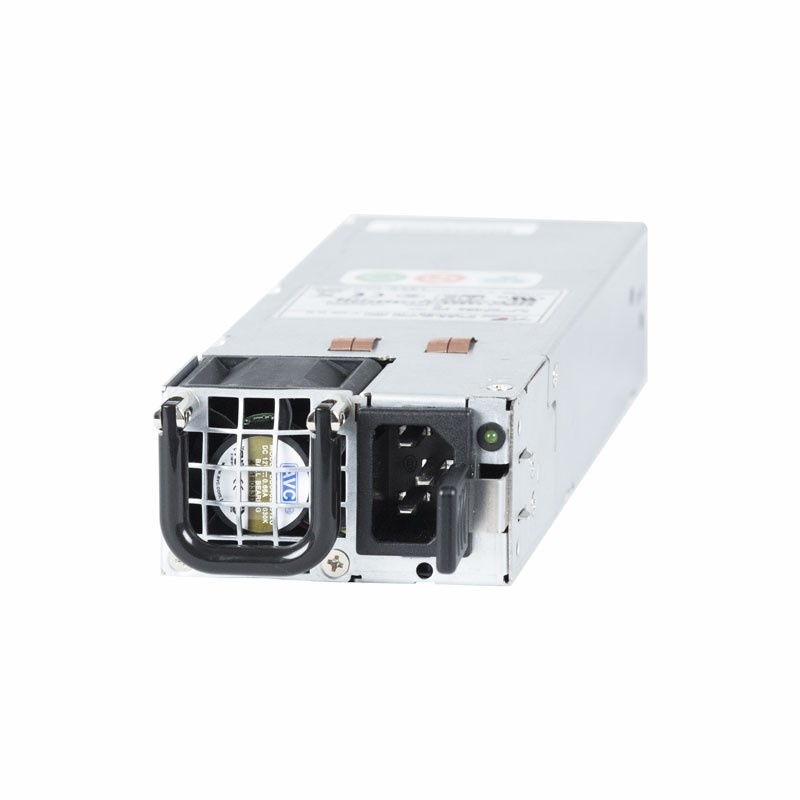

CHIEFTEC redundantní zdroj MRZ-5800K2V, 2x800W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum

Name: CHIEFTEC redundantní zdroj MRZ-5800K2V, 2x800W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum
Brand: Chieftec
SKU: 1022630
Price: 21879 CZK
Availability: OutOfStock

-3%

Kód: 1022630

EAN: 0753263076687

Záruka: 24 Měsíc(ů)

Výrobce: Chieftec

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

CHIEFTEC redundantní zdroj MRZ-5800K2V, 2x800W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Platinum

Performance

Model	MRZ 800W
Article no.	MRZ-5800K2V
EAN code	0753263076687
Weight (without/with package)	5.2 kg / 5.7 kg
AC Input	100 - 240V / 6-10A
Frequency	47 - 63Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	165W
+12V 1	66A
+12V 2	-
+12V 1 & +12V 2 combined	-
P.F.	>0,9
-12V	0.5A
+5VsB	3.5A
Maximum Power	800W

Connectors

20+4PIN ATX	1
8 PIN EPS (4+4)	1
8 PIN EPS	1
8 PIN PCIe (6+2)	6
SATA	4
MOLEX	2
MOLEX/FLOPPY	2
TTL Signal	1
LED (Total Power)	1
BUZZER RESET/PUSH SW	1
PMBus SIGNAL	1

Cable length

20+4PIN ATX	550
8 PIN EPS (4+4)	550
8 PIN EPS	550
8 PIN PCIe (6+2)	3x 550/200
SATA	2x 550/200
MOLEX	550/200
MOLEX/FLOPPY	550/200
TTL Signal	1070
LED (Total Power)	1070
BUZZER RESET/PUSH SW	770/200
PMBus SIGNAL	500

Features

Specification	ATX 12V 2.3
Form factor	PS II mini redundant
Efficiency	80 PLUS® Platinum
Dimension (DxWxH)	222mm x 150mm x 86mm
PFC	Active PFC
Fan	2x 40mm fan (1 fan per module)
Security	OCP (Over Current Protection) OPP (Over power protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short Circuit Protection) UVP (Over Voltage Protection)
Warranty	24 Months
