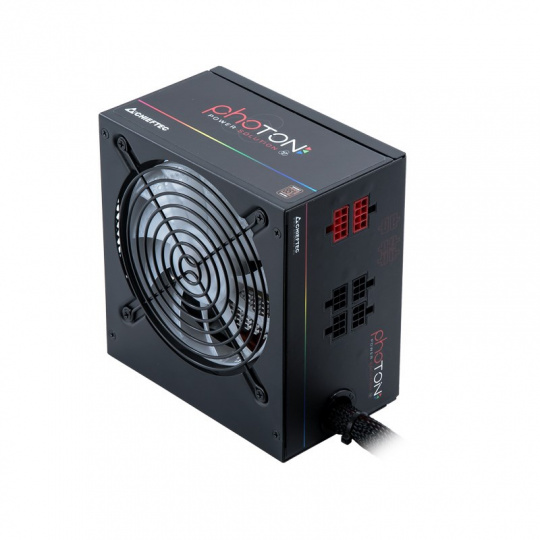

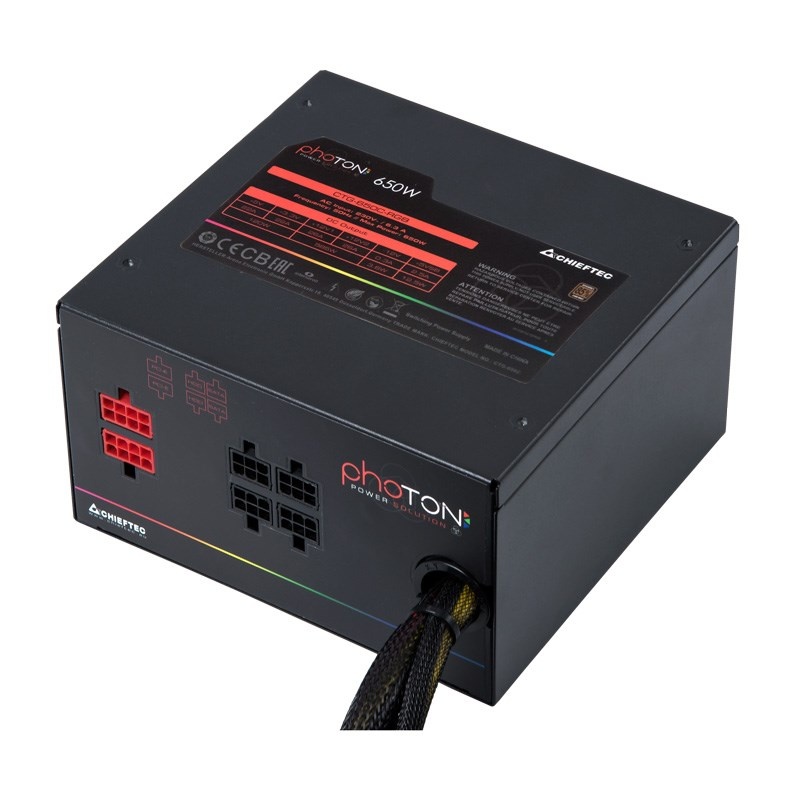

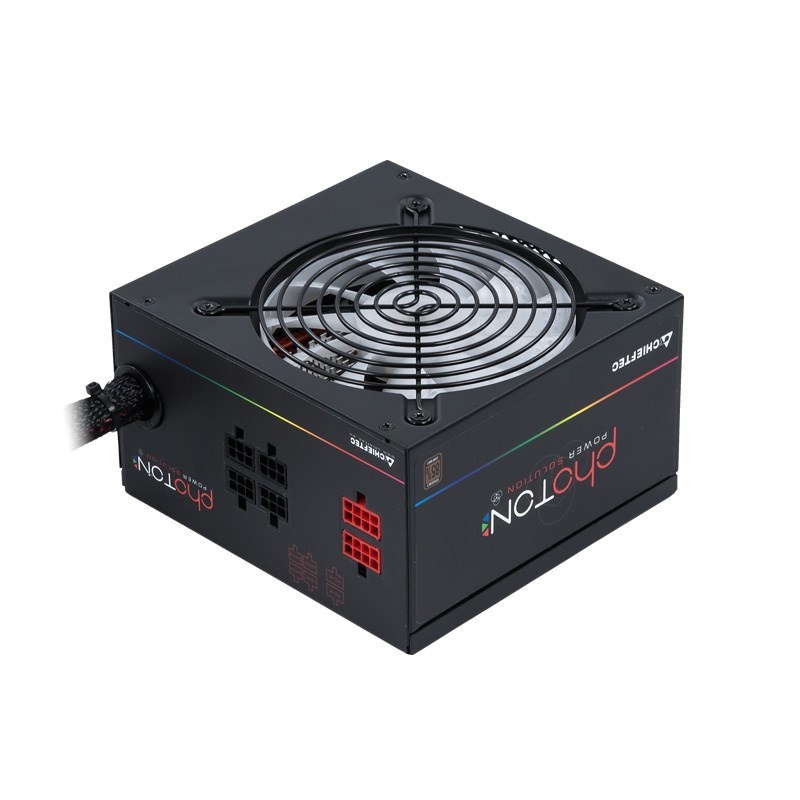

CHIEFTEC zdroj Photon Series, CTG-650C-RGB, 650W, 12cm RGB fan, Active PFC, Modular, Retail, 85+
CHIEFTEC zdroj Photon Series, CTG-650C-RGB, 650W, 12cm RGB fan, Active PFC, Modular, Retail, 85+
Supports all renowned RGB synchronization systems
- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (85% Eff. @230V) RGB Gaming
The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.

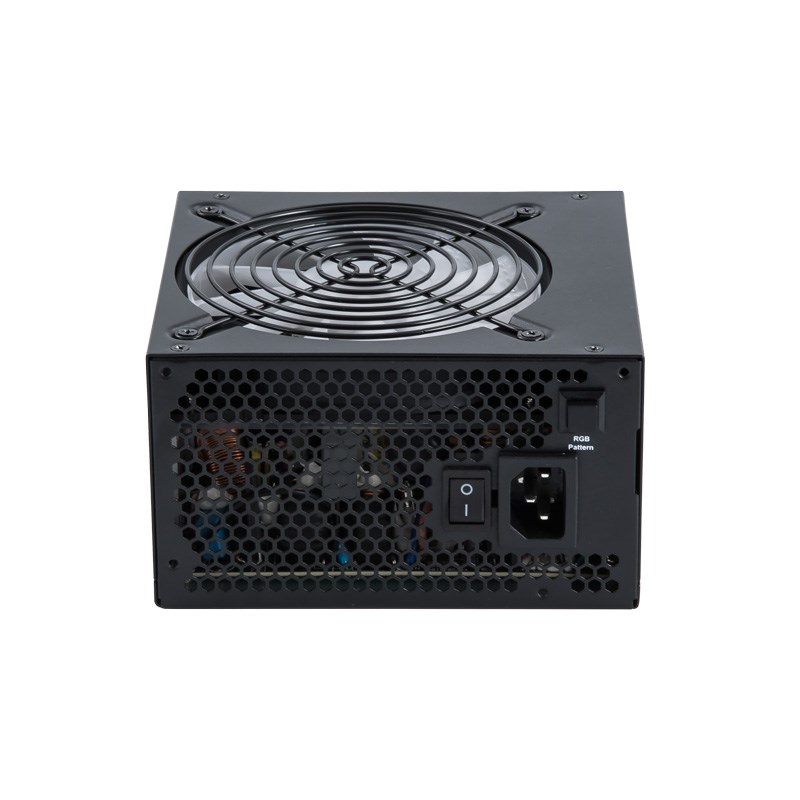

Photon series in addition provide a vast number of predefined and MB-independent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.
Performance
Model | Photon 650W |
Article no. | CTG-650C-RGB |
EAN code | 0753263075918 |
Weight (without/with package) | 2,14 kg / 2,54 kg |
AC Input | 230V / 6,3A |
Frequency | 50Hz |
+5V | 22A |
+3,3V | 22A |
+5V & +3,3V combined | 120W |
+12V 1 | 26A |
+12V 2 | 26A |
+12V 1 & +12V 2 combined | 585W |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VsB | 2,5A / 12,5W |
Maximum Power | 650W |

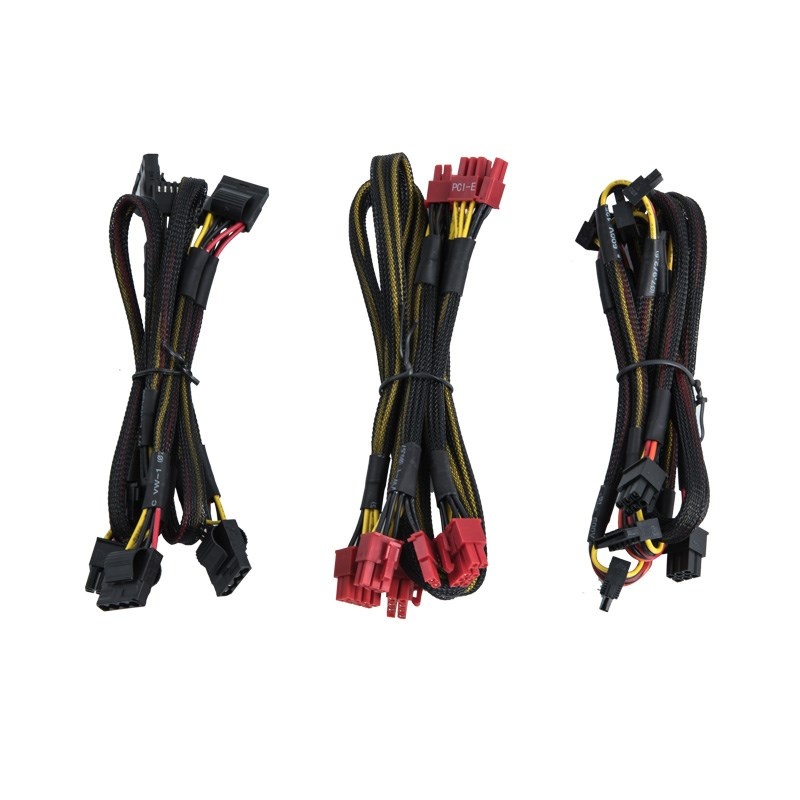

Connectors
24PIN ATX | 1 |
8 PIN EPS (4+4) | 1 |
8 PIN PCIe (6+2) | 4 |
SATA | 6 |
MOLEX | 4 |
FLOPPY | 2 |

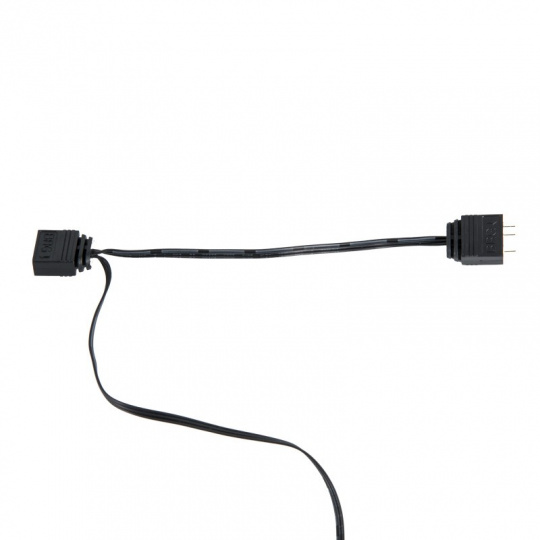

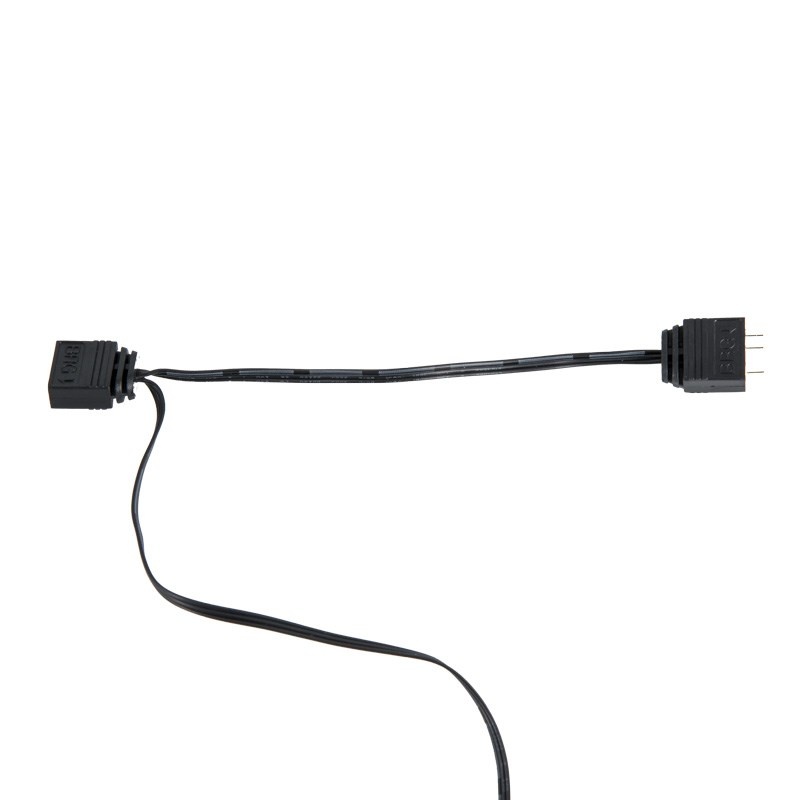

+5V RGB LED | 1 |
Cable length
24PIN ATX | 550 |
8 PIN EPS (4+4) | 600 |
8 PIN PCIe (6+2) | 2x 550/150 |
SATA | 2x 450/150/150 |
MOLEX | 2x 450/150/150 |
FLOPPY | Molex |
+5V RGB LED | 600/100 |
Features
Specification | ATX 12V 2.3 |
Form factor | PS II |
Efficiency | >85% |
Lightning modes | 17x dynamic modes integrated |
Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
PFC | Active PFC (0,9) (only 230V) |
Fan | 120mm silent RGB Rainbow fan |
Security |
|
Warranty | 24 Months |
.
