CHIEFTEC zdroj Polaris Series, PPS-850FC, 850W, Fully modular, 80+ Gold

Name: CHIEFTEC zdroj Polaris Series, PPS-850FC, 850W, Fully modular, 80+ Gold
Brand: Chieftec
SKU: 1022655
Price: 3909 CZK
Availability: OutOfStock

-13%

Kód: 1022655

EAN: 753263077356

Záruka: 24 Měsíc(ů)

Výrobce: Chieftec

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

CHIEFTEC zdroj Polaris Series, PPS-850FC, 850W, Fully modular, 80+ Gold

POLARIS SERIES

80 PLUS® Gold certified efficiency
Fully modular cable management
LLC Half-Bridge converter with DC-to-DC technology

TECHNICAL SPECIFICATIONS

Model	POLARIS 850W
Article no.	PPS-850FC
EAN code	0753263077356
Weight (wthout/with package)	2.6 kg / 3.3 kg
AC input	100 - 240 V / 15A
Frequency	50 - 60 Hz
+5V	22 A
+3.3 V	22 A
+5 V & +3.3 V combined	120 W
+12 V1	70.8 A
+12V2	-
+12V1, +12V2 combined	850 W
P.F.	0.9
-12 V	0.3 A / 3.6 W
+ 5VBS	3.0 A / 15 W
Maximum Power	850 W

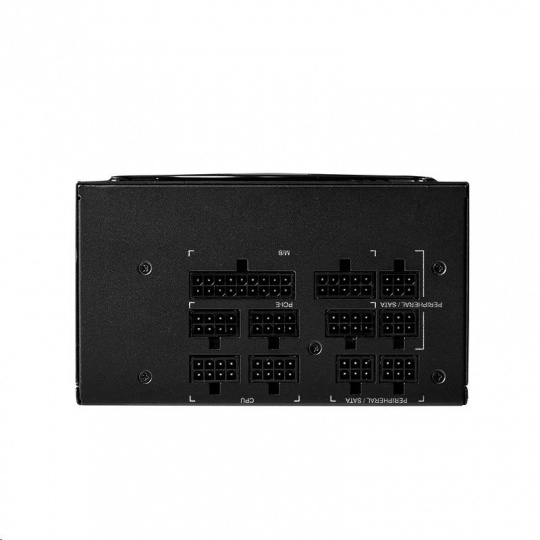

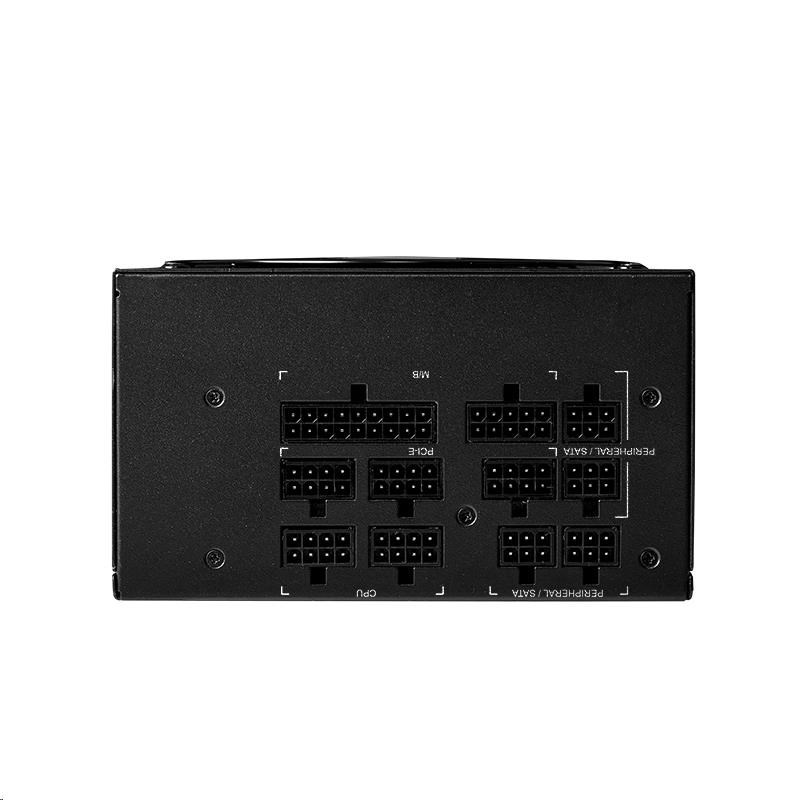

Connectors
20+4 PIN ATX	1
8 PIN EPS (4+4)	2
8 PIN PCIe (6+2)	4
SATA	12
MOLEX	4
Cable length (mm)
20+4 PIN ATX	650
8 PIN EPS (4+4)	2 x 650
8 PIN PCIe (6+2)	2 x 600/100
SATA	3 x 550/100/100/100
MOLEX / FLOPPY	550/100/100/100
Features
ATX12V Version	ATX 12V 2.3
Efficiency	80+ Gold
Dimension (D x W x H)	160 x 150 x 86 mm
PFC	Active PFC
Fan	140 mm silent fan
Security	AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Warranty	24 Months
