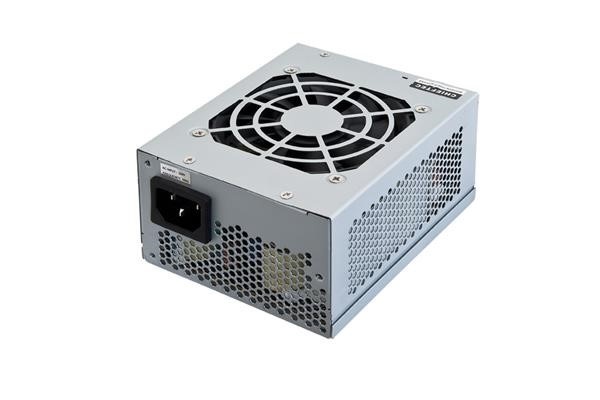

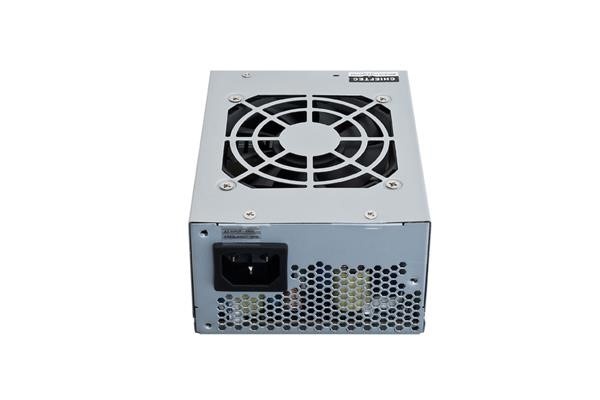

CHIEFTEC zdroj SFX 350W, 90 ° rotated layout, active PFC, 8cm fan,> 85% efficiency, 230V

Name: CHIEFTEC zdroj SFX 350W, 90 ° rotated layout, active PFC, 8cm fan,> 85% efficiency, 230V
Brand: Chieftec
SKU: 1022374
Price: 1289 CZK
Availability: OutOfStock

-6%

Kód: 1022374

EAN: 4710713230347

Záruka: 24 Měsíc(ů)

Výrobce: Chieftec

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

CHIEFTEC zdroj SFX 350W, 90 ° rotated layout, active PFC, 8cm fan,> 85% efficiency, 230V

http://www.chieftec.eu/en/psus/smart-series/sfx-350bs-l.html

The SFX-350BS-L is a special version with a layout turned around by 90o in comparison to regular SFX power supplies. The SFX-350BS-L is always used when the space is very tight. The SFX-350BS-L convinces by its 350W performance and an efficiency of over 85%. Its Ultra Silent fan is powerful enough to give up other case fans.

Performance

AC Input:	230V / 3A

Frequency:	50 Hz

+5V:	15A

+3,3V:	16A

+5V & +3,3V combined:	105W

+12V 1:	18A

+12V 2:	18A

+12V 1 & +12V 2 combined:	324W

+12V 3:	N/A

+12V 4:	N/A

+12V 3 & +12V 4 combined:	N/A

P.F.:	>0,9

-12V:	0,3A / 3,6W

+5VSB:	3A / 15W

Maximum Load:	350W

Connectors

Native cable:

20+4PIN:

===300mm===[20+4PIN]
SATA:

===300mm===[SATA]===100mm===[SATA]
Molex/Floppy:

===300mm===[Molex]===100mm===[Molex]===100mm===[Floppy]
4PIN 12V:

===300mm===[4PIN 12V]
4PIN 12V:

===300mm===[4PIN 12V]

Specification:	ATX 12V 2.3

Form factor:	SFX

Efficiency:	>85%

Dimension (DxWxH):	125 mm x 100 mm x 64 mm

PFC:	Active (0,9)

Fan dimension:	80mm silent fan

Security:	UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) AFC (Automatic Fanspeed Control)
