CHIEFTEC zdroj SteelPower Series 750W, BDK-750FC, 80+ Bronze

Name: CHIEFTEC zdroj SteelPower Series 750W, BDK-750FC, 80+ Bronze
Brand: Chieftec
SKU: 1022661
Price: 2509 CZK
Availability: OutOfStock

-13%

Kód: 1022661

EAN: 0753263077431

Záruka: 60 Měsíc(ů)

Výrobce: Chieftec

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

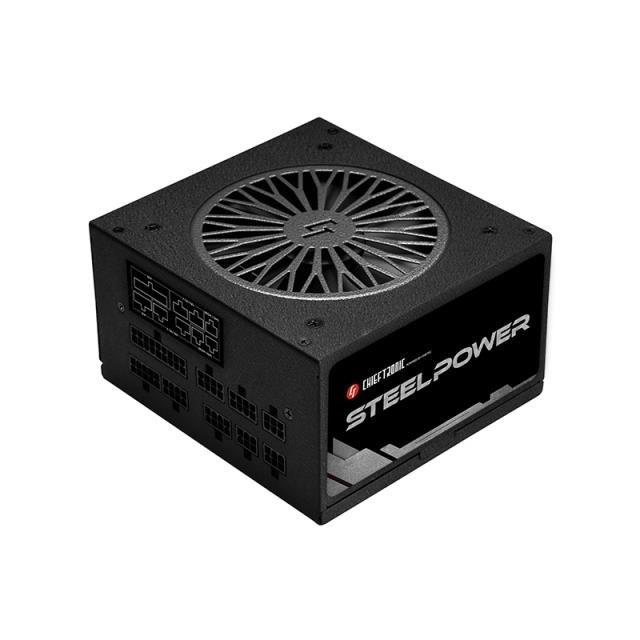

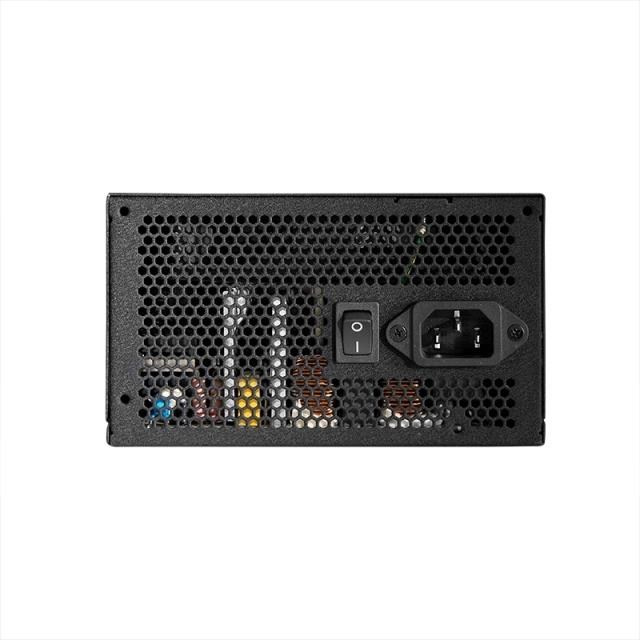

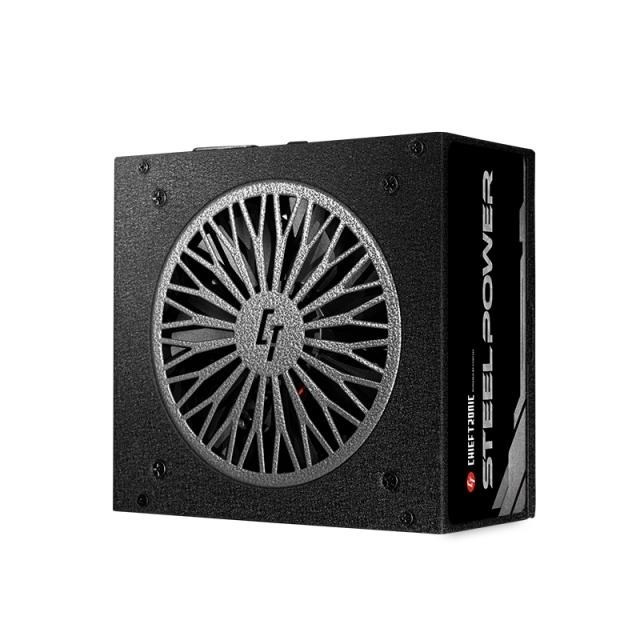

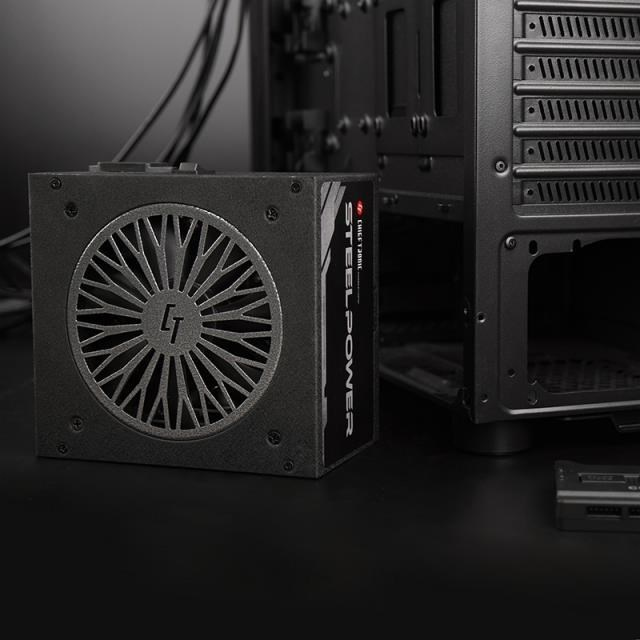

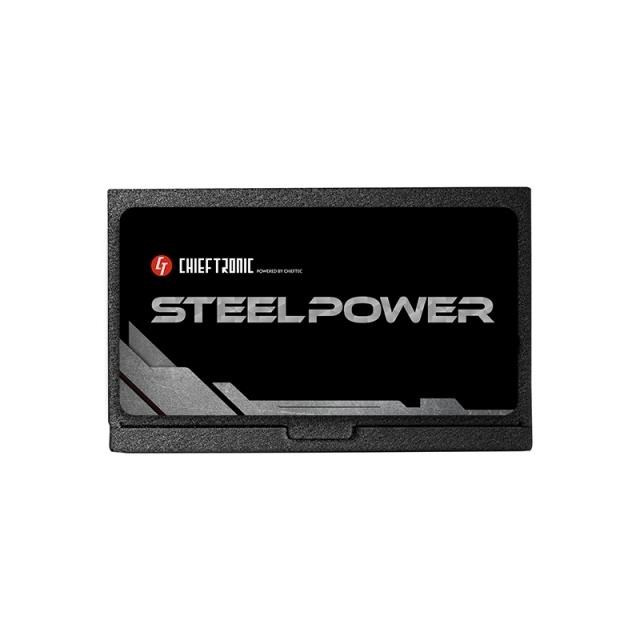

CHIEFTEC zdroj SteelPower Series 750W, BDK-750FC, 80+ Bronze

SteelPower SERIES

80 PLUS® Bronze certified efficiency
Fully modular cable management
Half-bridge LLC converter with DC-to-DC technology
Premium Japanese capacitors
FDB 12cm fan

TECHNICAL SPECIFICATIONS

Model	Steel Power
Article no.	BDK-750FC
EAN code	0753263077431
Weight (without/with package)	1.7kg / 2.24kg
AC input	100-240V / 10.0A
Frequency	47 - 63Hz
+5V	20.0A
+3.3 V	20.0A
+5 V & +3.3 V combined	120W
+12 V1	62.5A
+12V2	-
+12V1, +12V2 combined	750W
P.F.	>0,9
-12 V	0,3A / 3,6W
+ 5VBS	2,5A / 12,5W
Maximum Power	750W

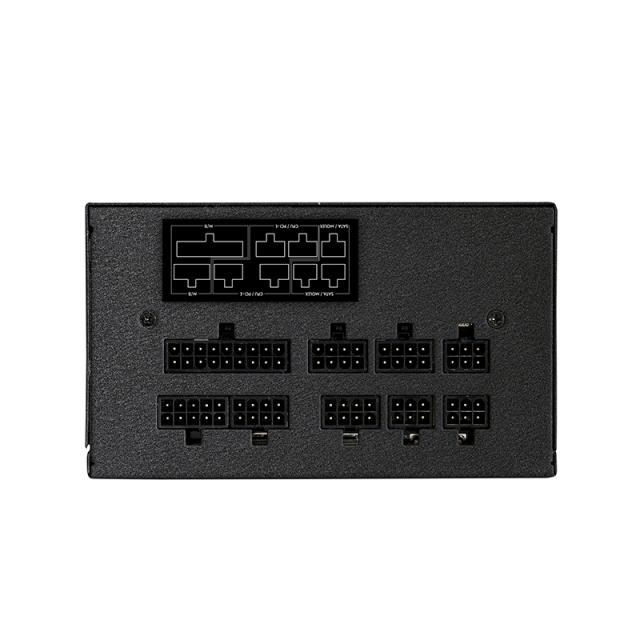

Connectors
20+4 PIN ATX	1
8 PIN EPS (4+4)	2
8 PIN PCIe (6+2)	4
SATA	6
MOLEX	3/1
Cable length (mm)
20+4 PIN ATX	650
8 PIN EPS (4+4)	600/150
8 PIN PCIe (6+2)	2 x 500/150
SATA	2 x 500/150/150
MOLEX / FLOPPY	500/150/150/150
Features
ATX12V Version	ATX 12V 2.3
Efficiency	80 PLUS® Bronze
Dimension (D x W x H)	140 x 150 x 86mm
PFC	Active PFC (0,9)

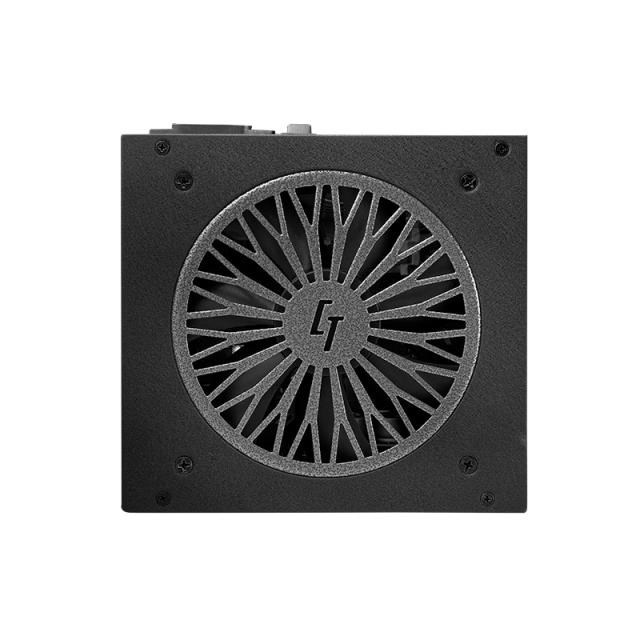

Fan	120mm FDB silent fan
Security	AFC (Automatic Fan speed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over-temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection)
Warranty	60 Months
