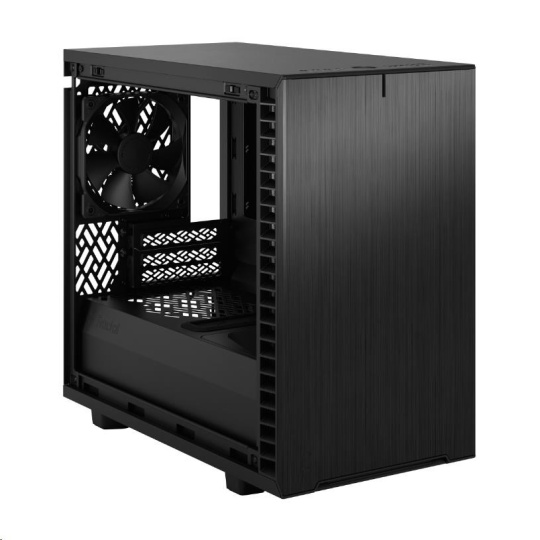

FRACTAL DESIGN skříň Define 7 Nano Black Solid, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, mATX

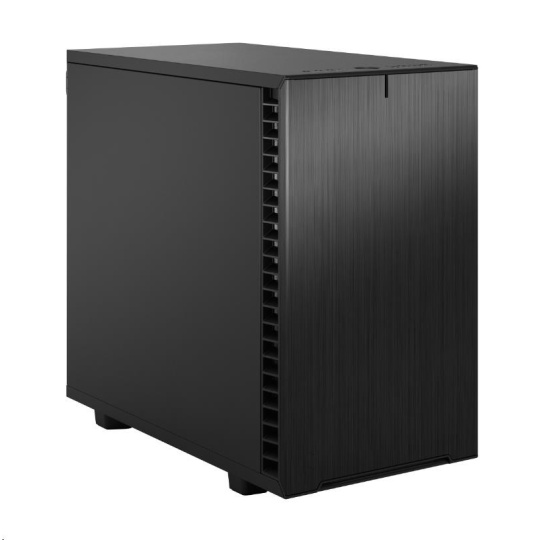

Define 7 Nano

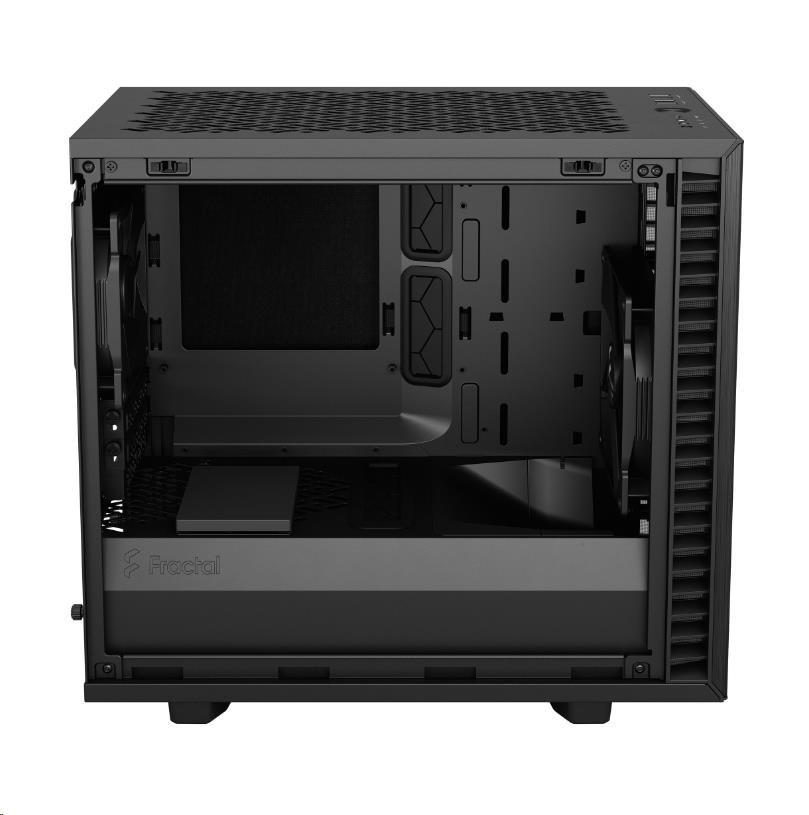

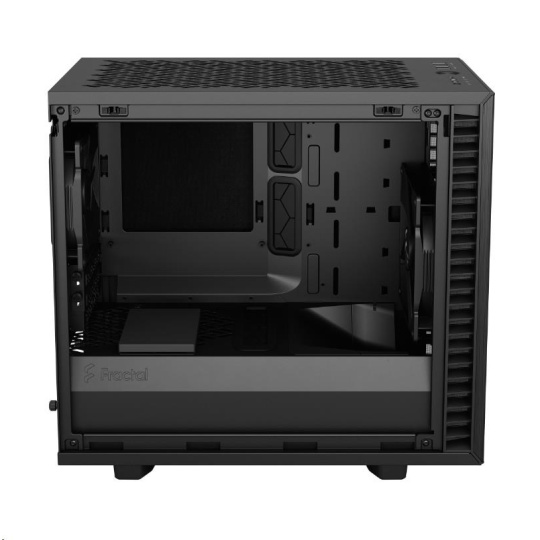

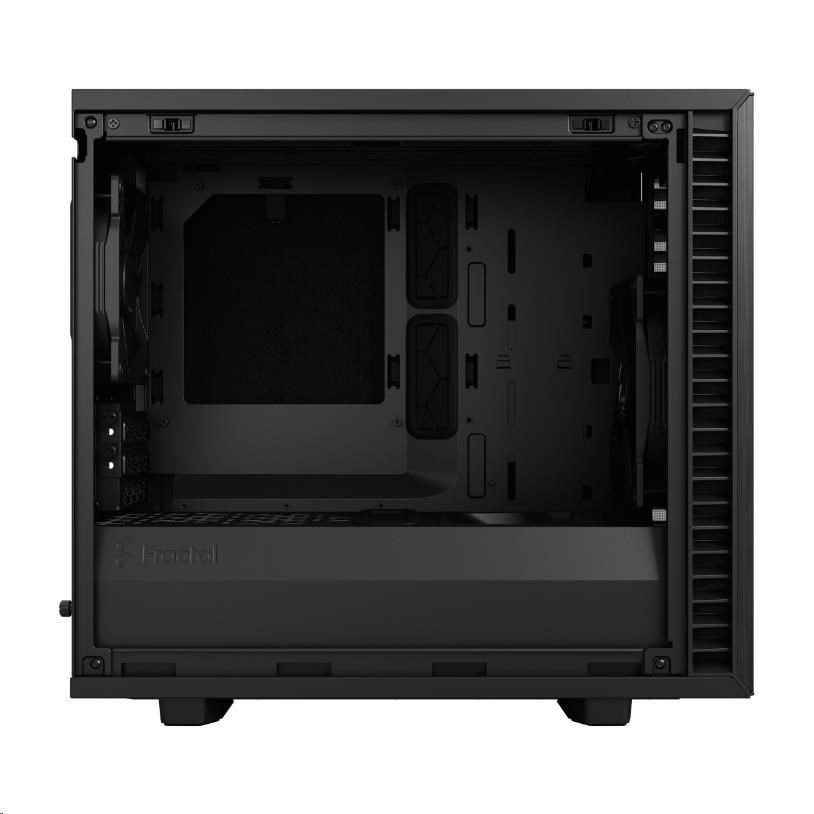

The Define 7 Nano re-defines precision, bringing clean design and a host of features from its larger siblings to a minimized form factor. The compact yet spacious interior can accommodate all Mini ITX and Mini-DTX motherboards, and the option to house a GPU up to 306 mm, making it highly versatile.

Compact yet spacious interior accommodates any Mini ITX and Mini-DTX motherboard
Room for GPU up to 306 mm with a 25 mm front fan
Flexible storage option supporting one 3.5” drive and three 2.5’’ drives

TECHNICAL SPECIFICATIONS

3.5"/2.5" drive mounts	1 (included)
Dedicated 2.5" drive mounts	3 (2 included)
Expansion slots	2
Front interface	1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
Total fan mounts	6x 120 mm or 3x 140 mm (top 140mm fan mount requires 15 mm slim fans)
Front fan	2x 120/140 mm (1x Dynamic X2 GP-14 included)
Top fan	2x 120 or 1x 140 slim fan (max 15 mm)
Rear fan	1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan	1x 120 mm (requires removal of HDD tray)
Dust filters	Top, Front, Bottom and PSU

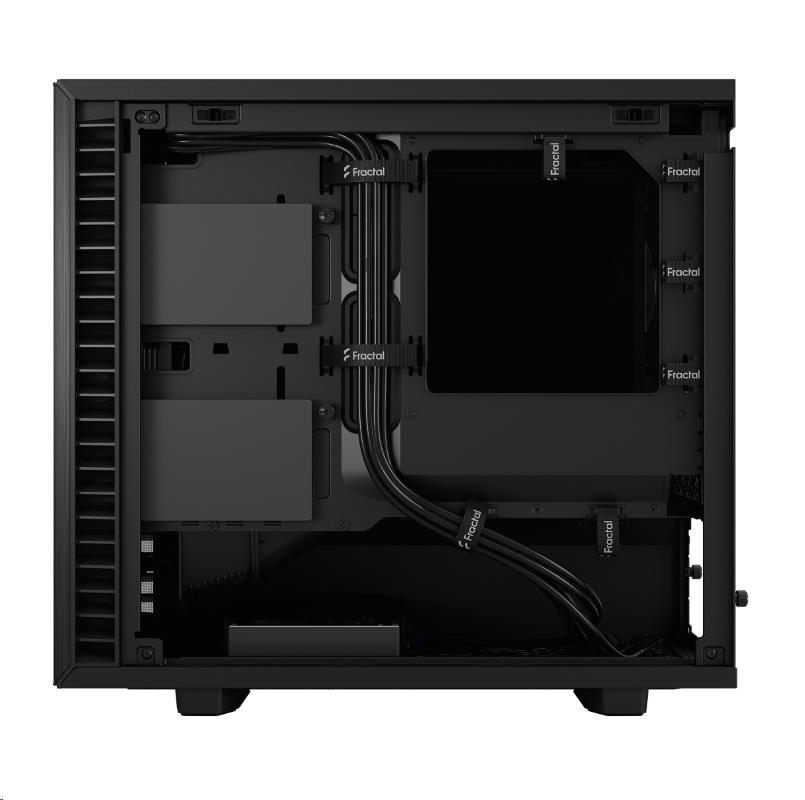

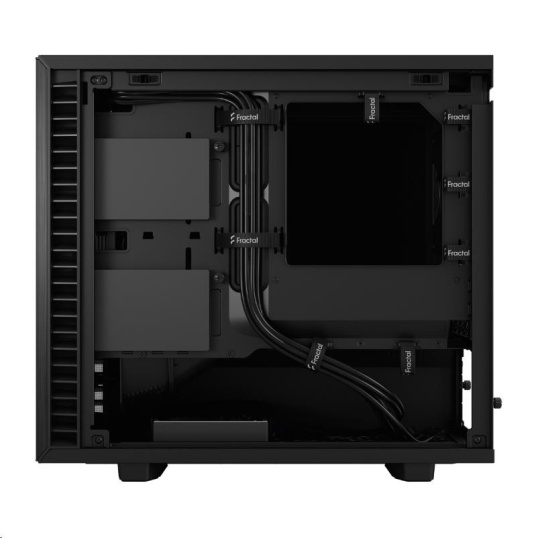

Cable routing space	15-25 mm
Cable routing grommets	Yes
Fixed cable ties	Yes
Tool-less push-to-lock	Both side panels
Captive thumbscrews	SSD and PSU brackets

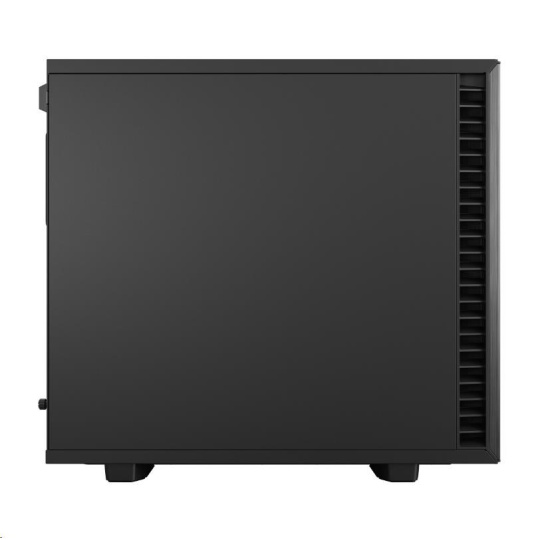

Left side panel	Industrial sound-damped steel (Solid) or Tinted Glass panel (TG)
Right side panel	Industrial sound-damped steel
Compatibility
Motherboard compatibility	Mini ITX / Mini-DTX
Power supply type	ATX
Front radiator	120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “push” configuration for easier fit)
Top radiator	N/A
Rear radiator	120 mm
Bottom radiator	N/A
PSU max length	165 mm recommended (200 mm without HDD-tray and modular air duct)
GPU max length	331 mm, 306 mm with front fan
GPU max thickness	57 mm / 2.8 slot
CPU cooler max height	167 mm
Dimensions
Case dimensions (L x W x H)	399 x 205 x 361 mm
Case dimensions w/o feet/protrusions/screws	390 x 205 x 345 mm
Net weight	7.1kg (TG) / 7.2kg (solid)
Package dimensions (L x W x H)	417 x 277 x 471 mm
Gross weight	8.5kg (TG) / 8.6 (solid)
