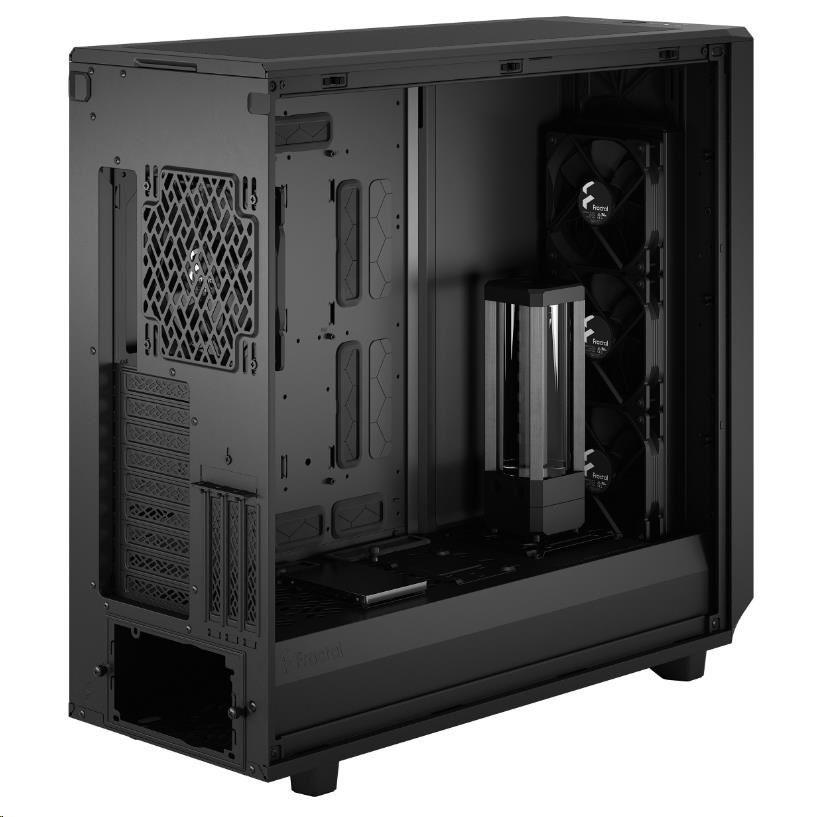

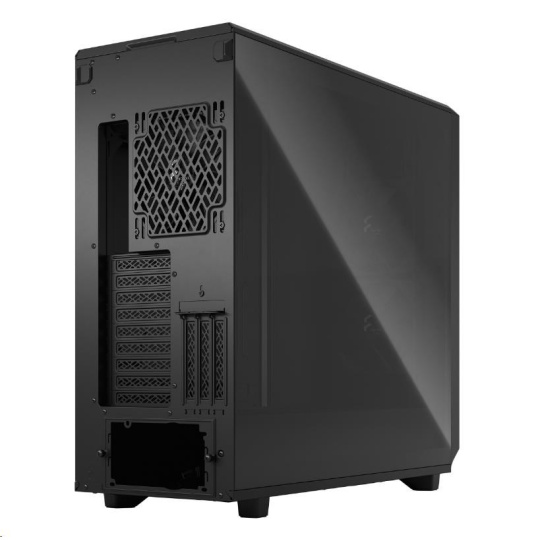

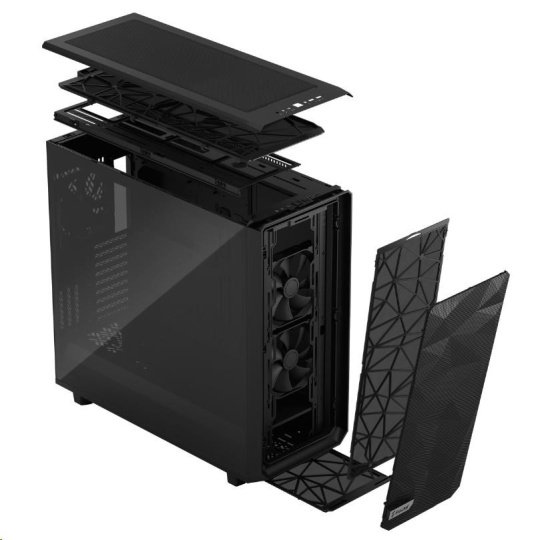

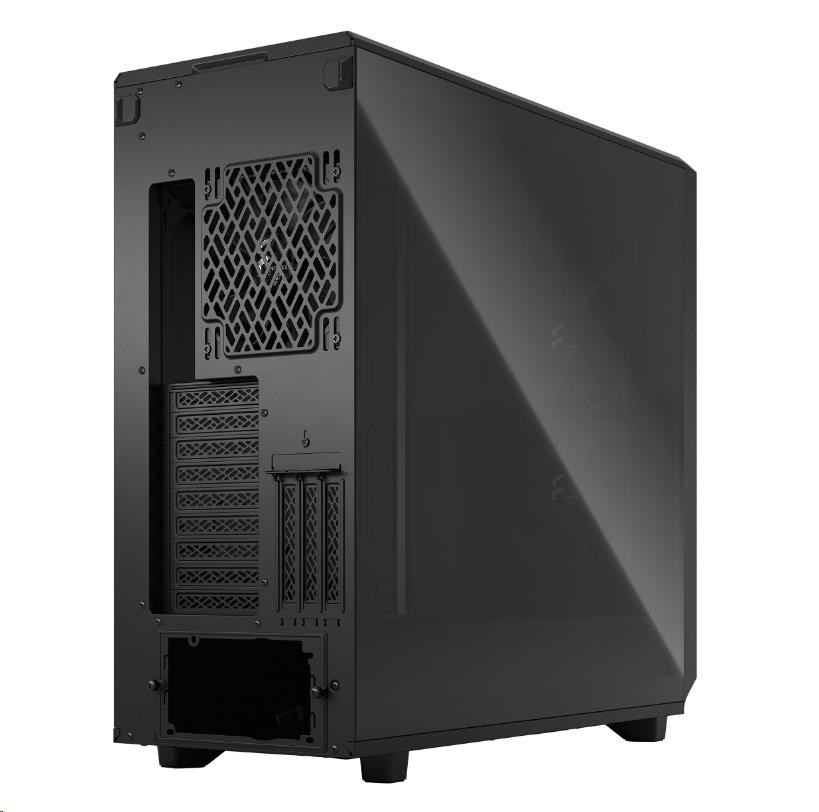

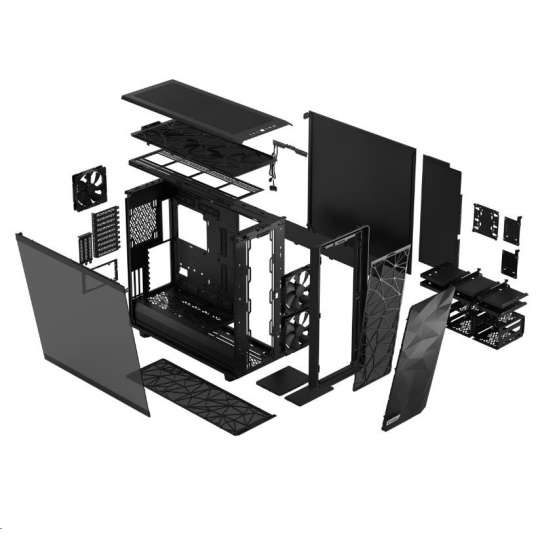

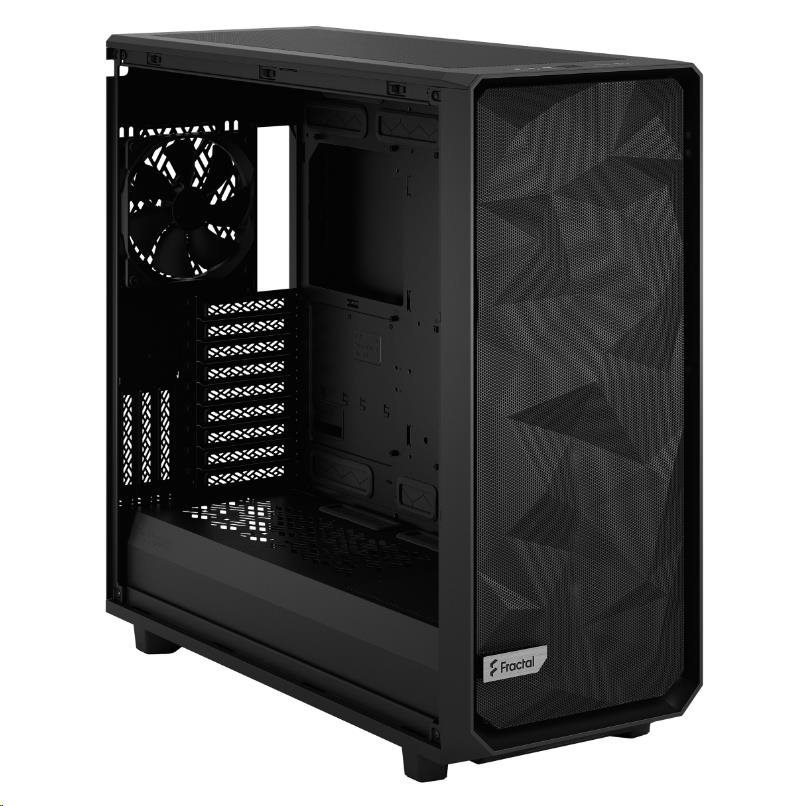

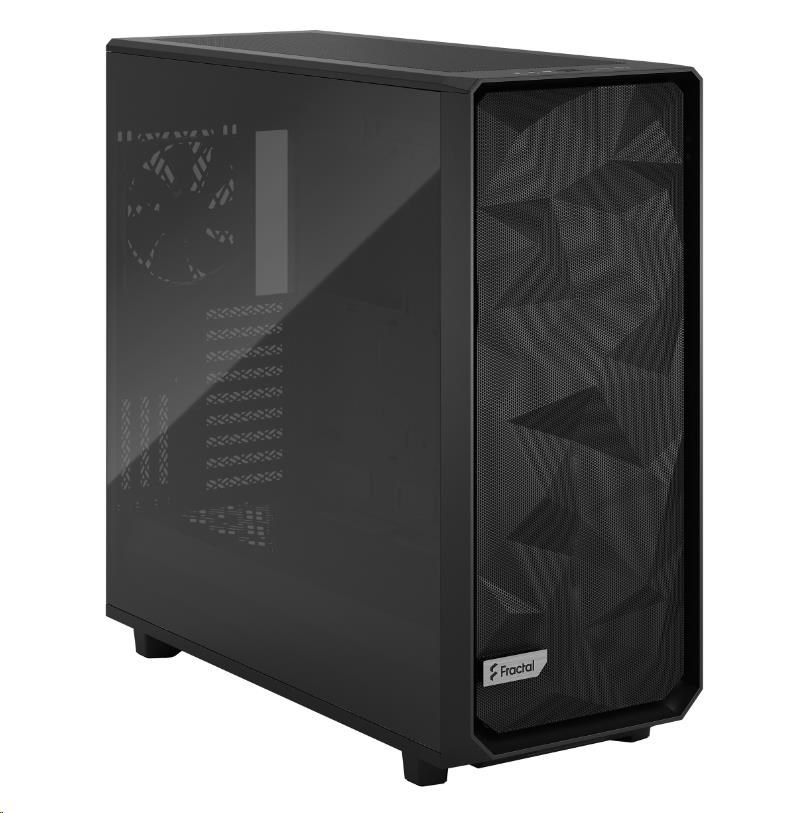

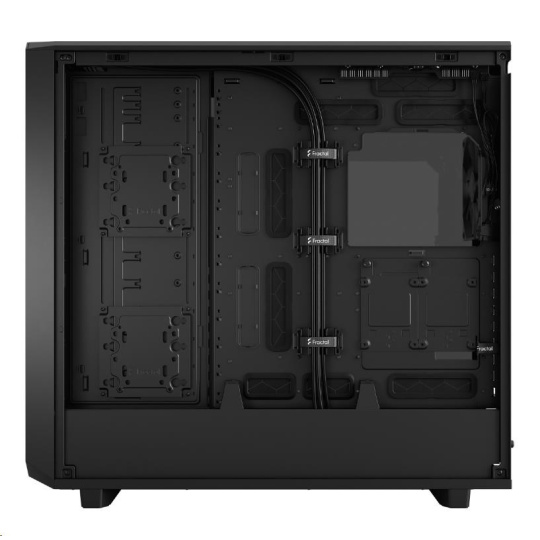

FRACTAL DESIGN skříň Meshify 2 XL Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, E-ATX
Meshify 2 XL
Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

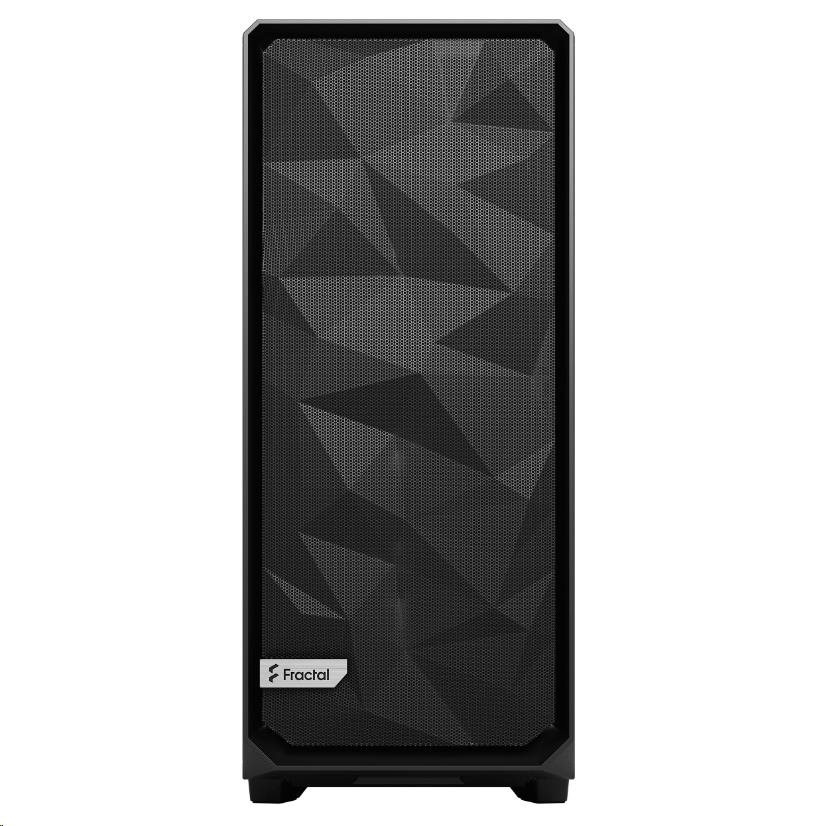

- Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic

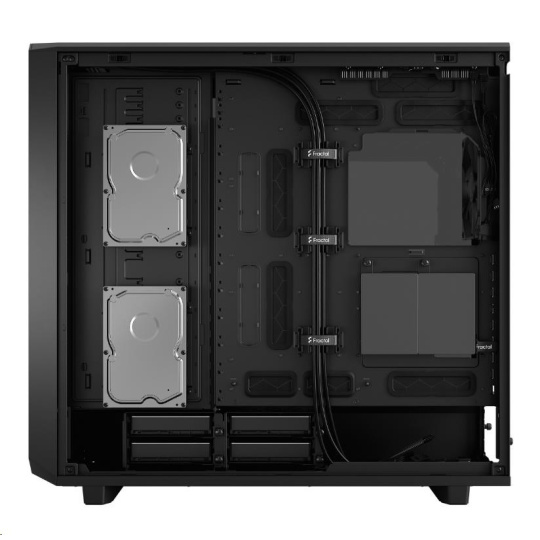

- Spacious and extensively adaptable dual-layout interior
- Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
- Open Layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
TECHNICAL SPECIFICATIONS
3.5"/2.5" drive mounts | 6 included, 18 positions total + 2 Multibrackets |
Dedicated 2.5" drive mounts | 2 included, 5 positions total |
Expansion slots | 9 + 3 |

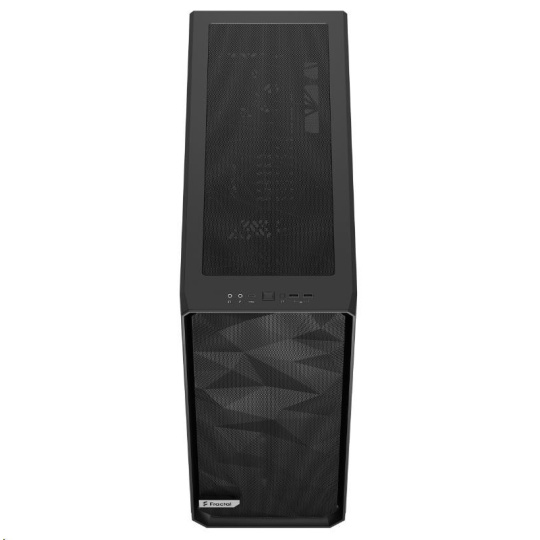

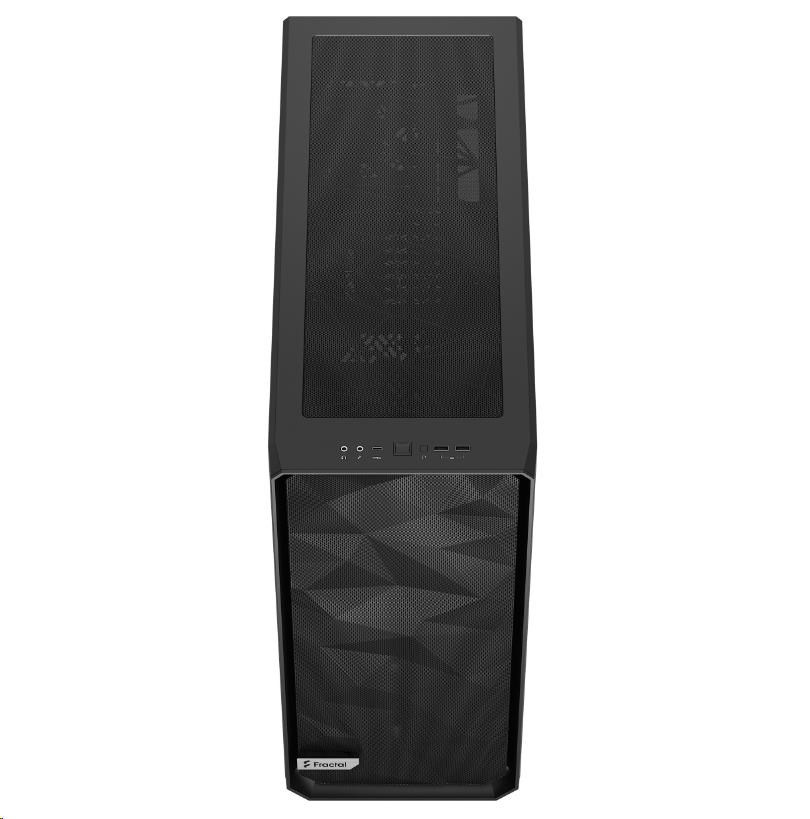

Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 11x 120 mm or 9x 140 mm |
Front fan | 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included) |
Top fan | 4x 120 mm or 3x 140 mm |
Rear fan | 1x 120/140 mm, (1x Dynamic X2 GP-14 included) |
Bottom fan | 2x 120/140 mm |
Dust filters | Top, front and bottom |
Cable routing grommets | Yes |
Fixed velco straps | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |
Left side panel | Tempered glass dark tint |

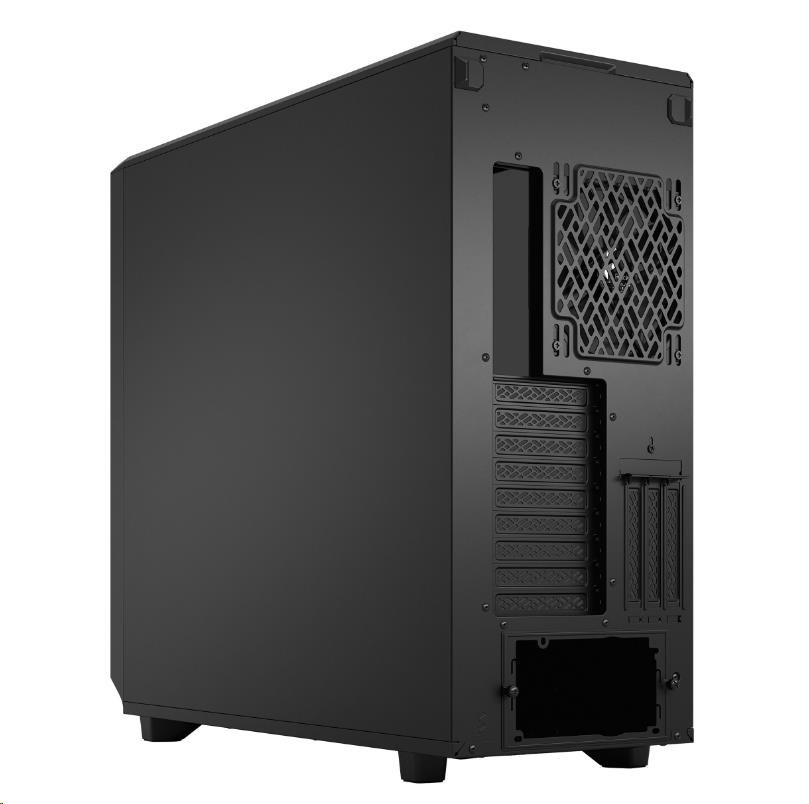

Right side panel | Steel |
Compatibility | |
Motherboard compatibility | E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB |
Power supply type | ATX |
Front radiator | Up to 480/420 mm |
Top radiator | Up to 480/420 mm |
Rear radiator | 120 mm |
Bottom radiator | Up to 240/280 mm |
PSU max length | 250 mm (both HDD cages installed) |
GPU max length | Storage layout: 359 mm Open layout: 549 mm (524 mm w/ front fan) |
Cable routing space | 30 mm |
CPU cooler max height | 185 mm |
Dimensions | |
Case dimensions (L x W x H) | 600 x 240 x 566 mm |
Case dimensions w/o feet/protrusions/screws | 588 x 240 x 547 mm |
Net weight | 14.1 kg |
Package dimensions (L x W x H) | 651 x 330 x 684 mm |
Gross weight | 16.4 kg |
Volume | 77,2 liters |
.
ParametryPorovnání
Provedení skříně
Big Tower
Počet pozic 3.5" (HDD)
6
Počet pozic 2.5" (SSD)
2
Vybavení PC skříně
Bez integrovaného zdroje
Vybavení PC skříně
Přední USB panel
Vybavení PC skříně
Přední Audio panel
Bočnice
Prosklená
