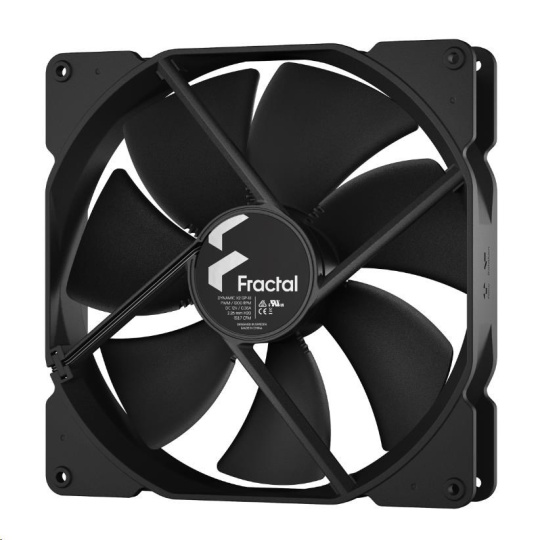

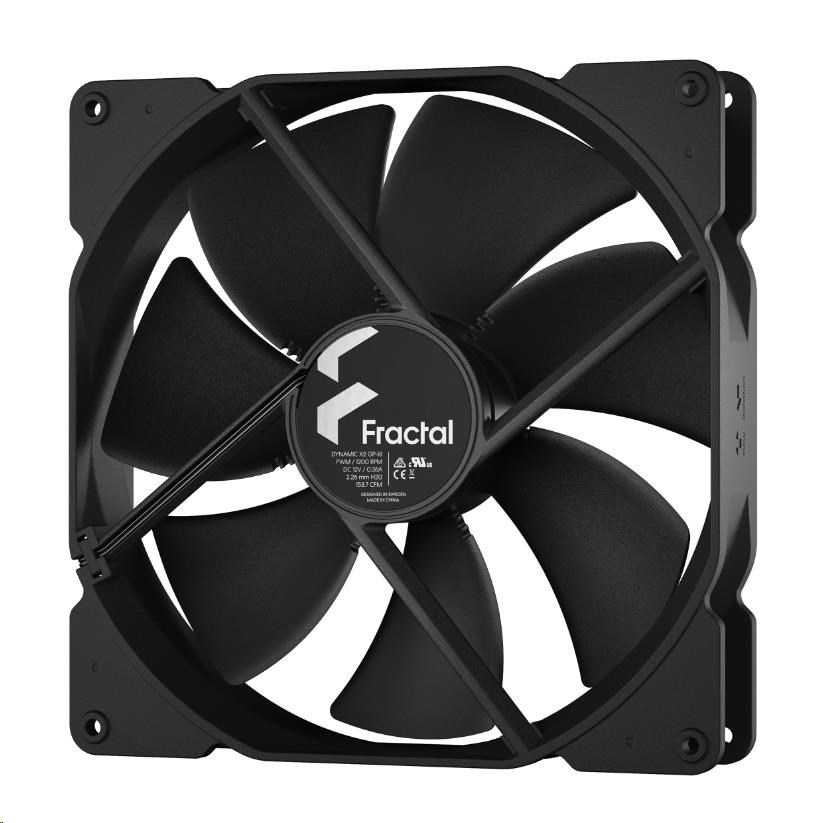

FRACTAL DESIGN ventilátor Dynamic X2 GP PWM,180mm
Dynamic X2 GP-18 PWM
The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.
- Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
- High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
- PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
TECHNICAL SPECIFICATIONS
Size | 180 x 180 x 38 mm |
Screw hole pattern | 165 x 165 mm |
Fan Connector | 4-pin |
Bearing | LLS |
Number of blades | 7 |
Rotation speed | 300 – 1200 RPM |
Noise level | 16 – 35.4 dB(A) |
Max airflow | 44.9 – 153.7 CFM |
Max airflow | 76.33 – 261.29 m3/h |
Max pressure | 0.4 – 2.26 mmH2O |
Input power | 4.2W at 12VDC |
Maximum rated input current | 0.35A |
Nominal input Voltage | 12V |
Minimum startup voltage | 6V |
MTBF | 90,000 hrs |
Fan weight | 499 g |
Cable length | 1000 mm |
Cable type | Black ribbon cable |
.
ParametryPorovnání
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Napájecí konektor
4pin
Velikost ventilátoru
180x180
