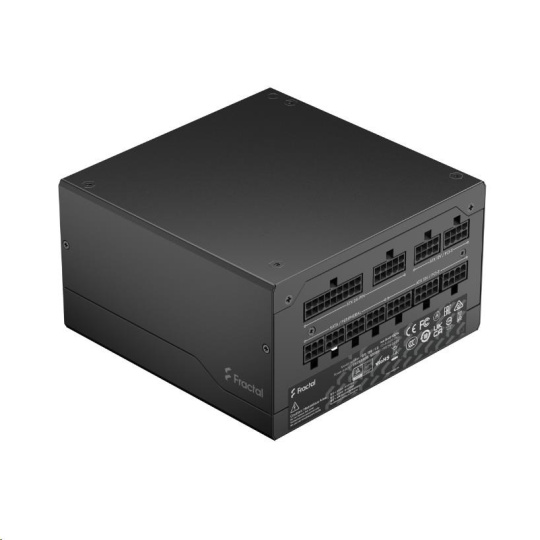

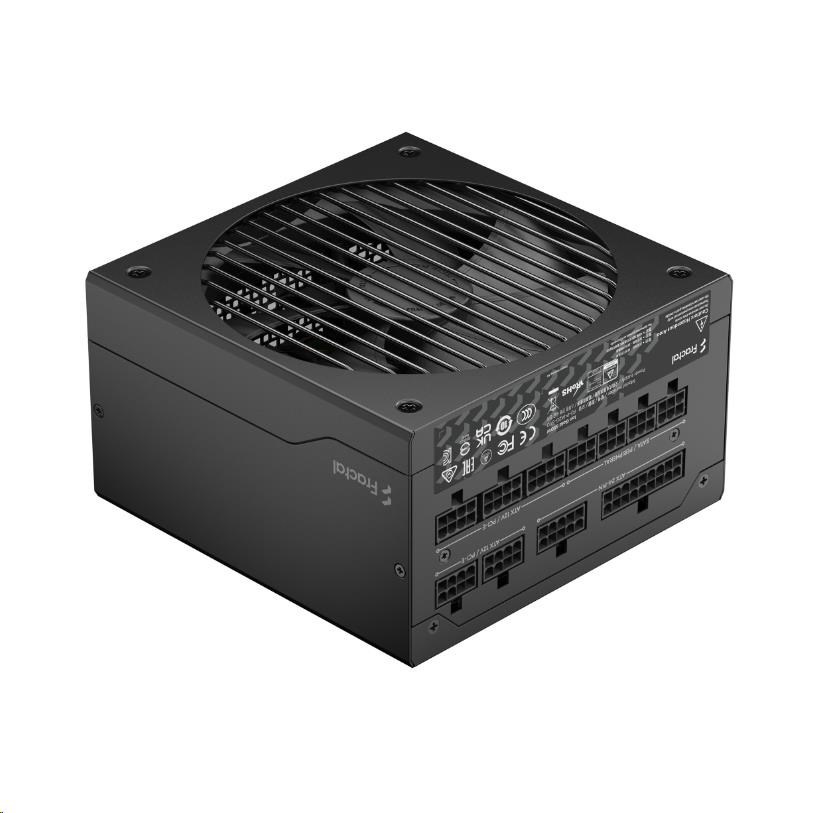

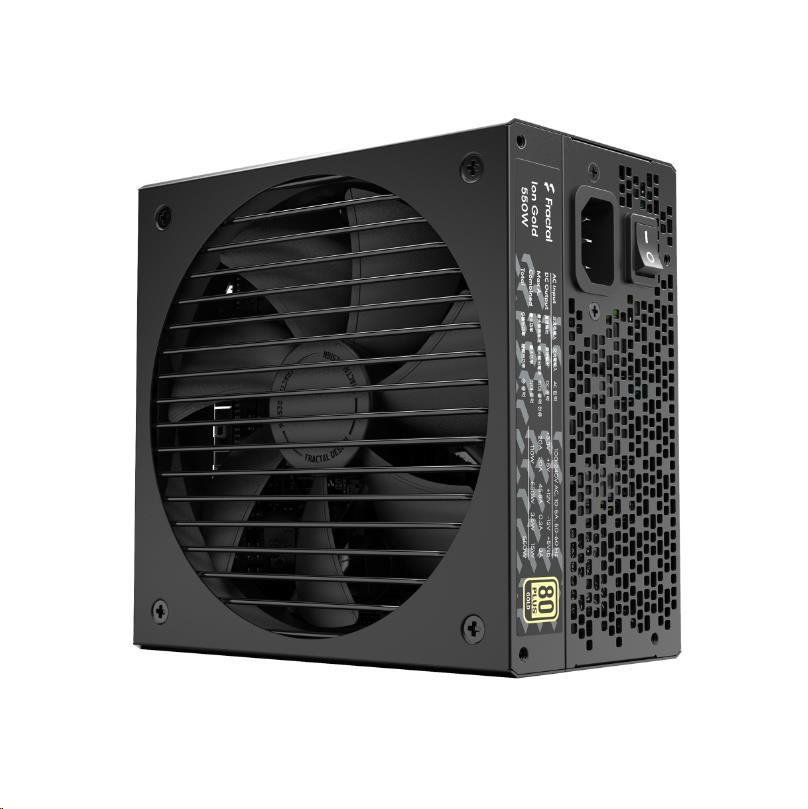

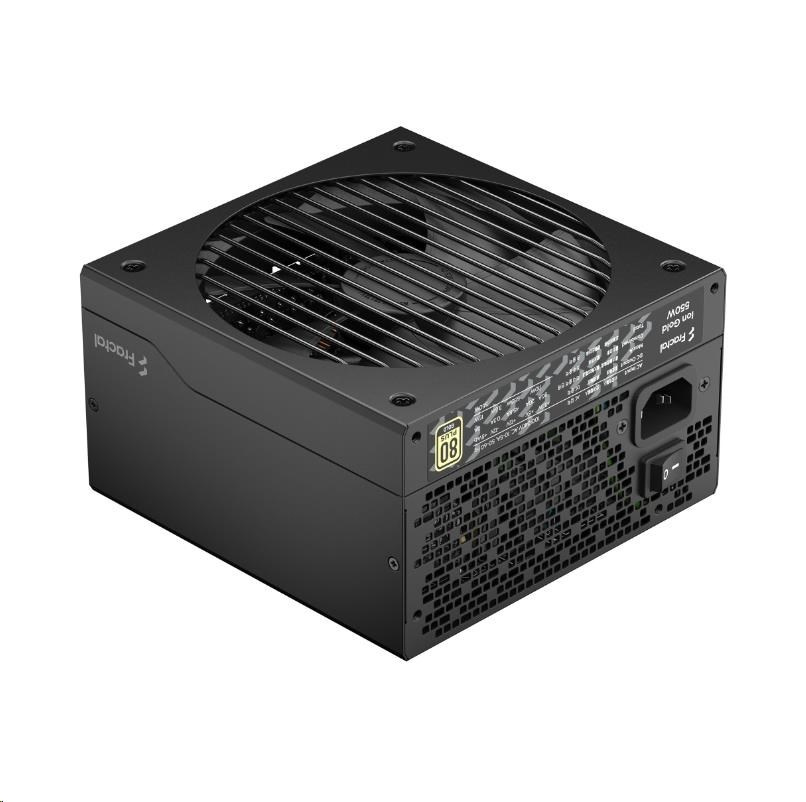

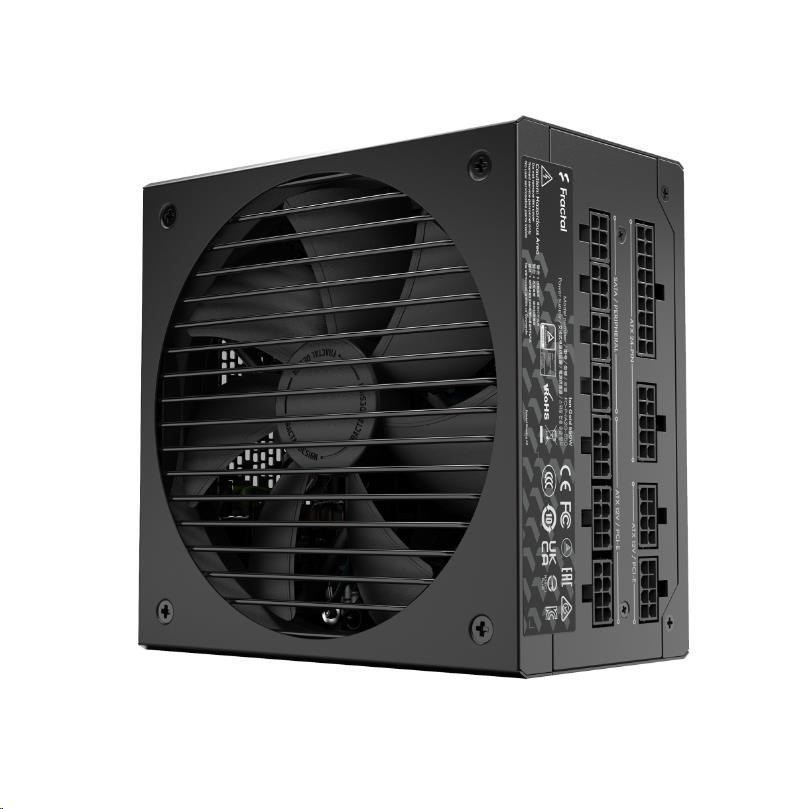

FRACTAL DESIGN zdroj Ion 550W GOLD, modular, 80+ Gold

Ion Gold 550W

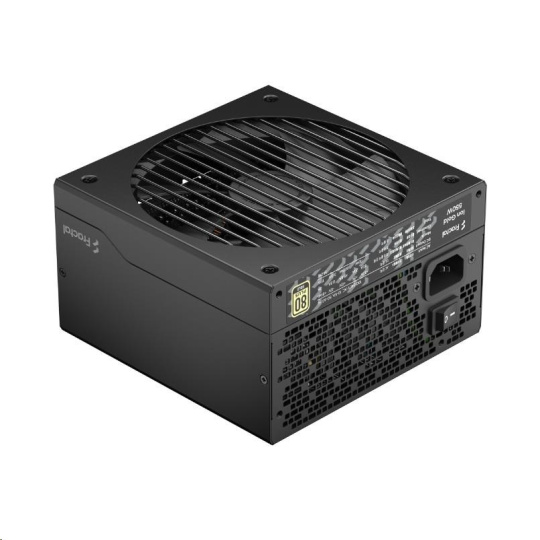

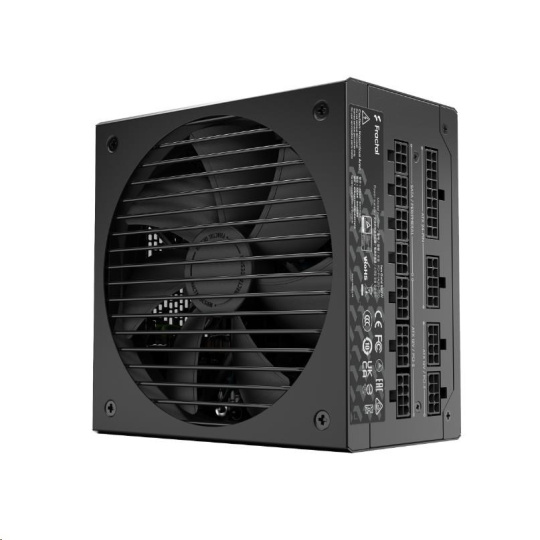

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

80PLUS® Gold Efficiency rating for reduced noise and energy consumption

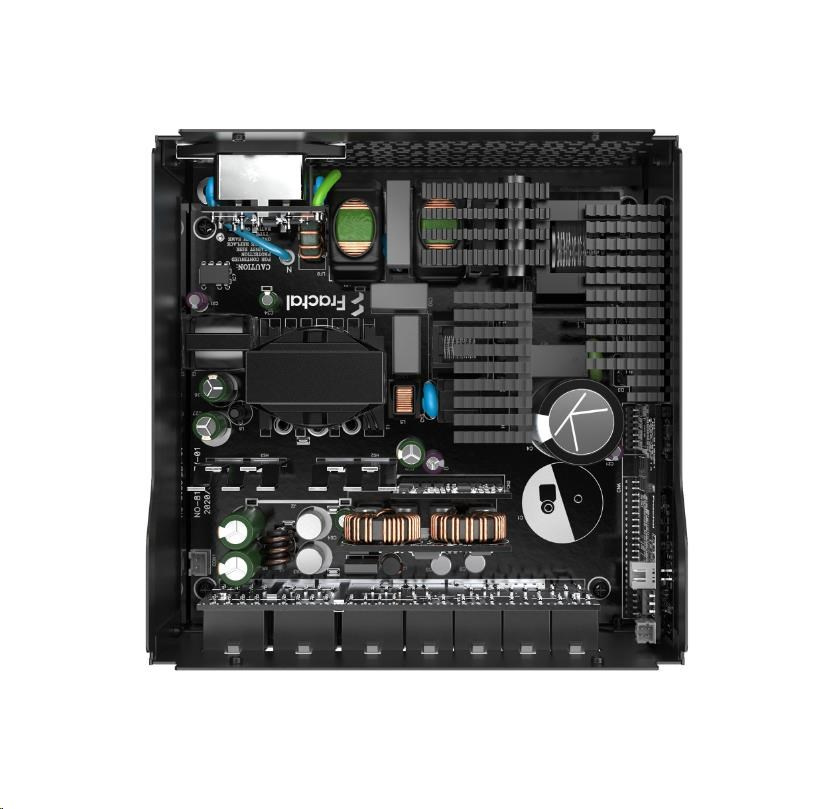

Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
Fully modular design for reduced clutter and maximum ease of installation

TECHNICAL SPECIFICATIONS

80PLUS® certification	Gold
Modular cables	Fully Modular

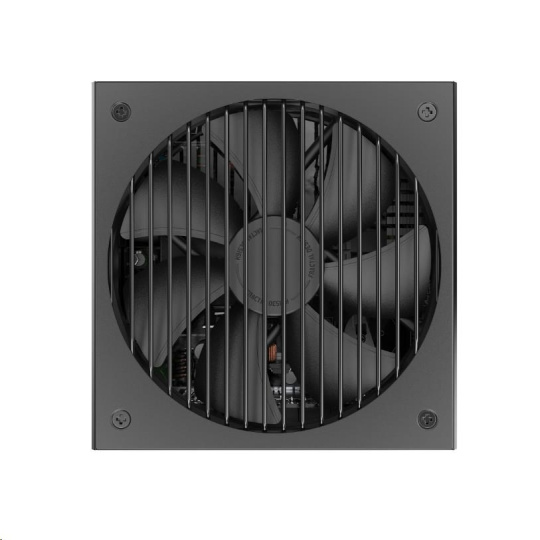

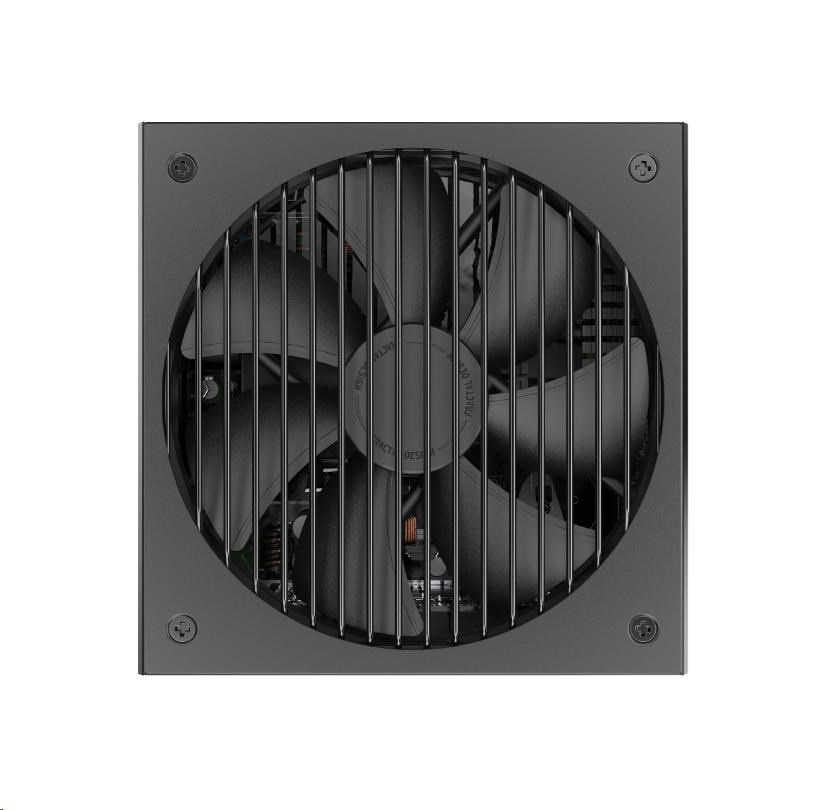

Fan type	140 mm LLS bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load)	40°C, 50°C at 80% load
Semi-passive operation	No

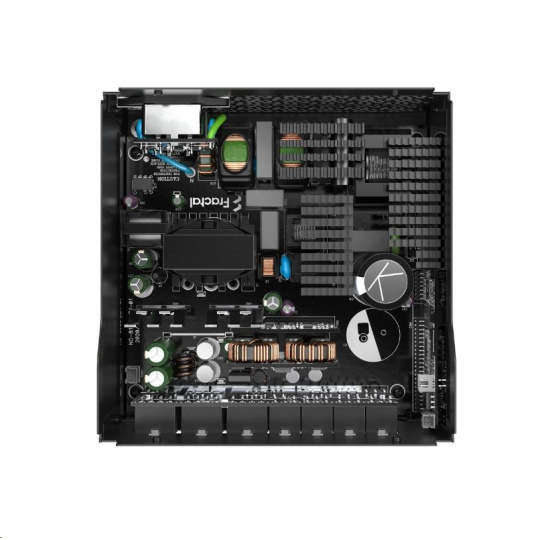

Capacitors	Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
Life expectancy	100,000 hours

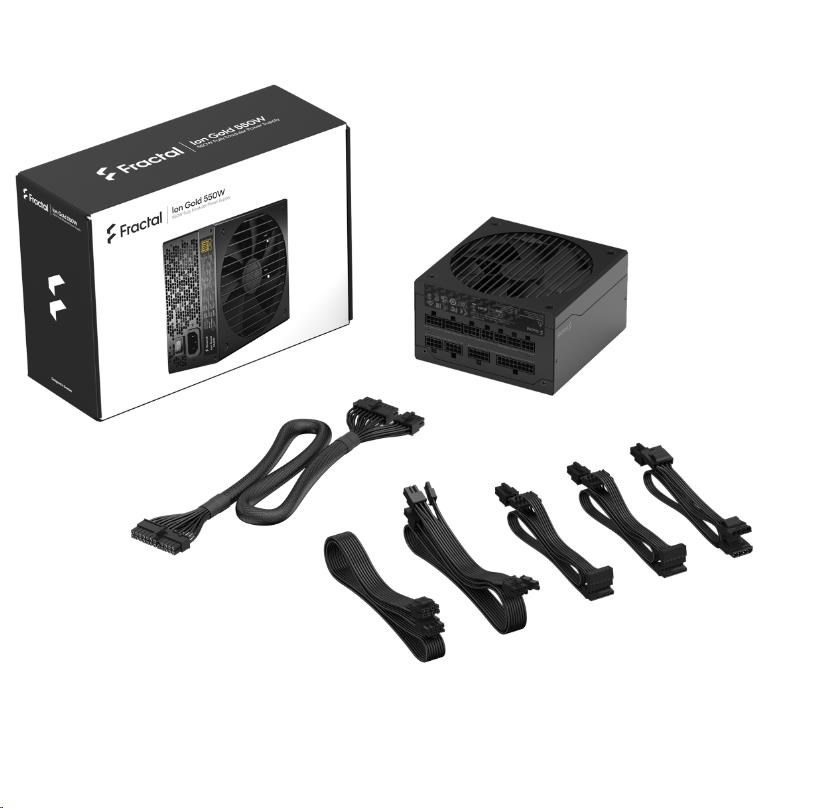

Cable type	Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
Input voltage	100-240V AC
Input frequency	50-60 Hz
Input current	10A/5A
Protection features	Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance	ATX12V 2.52; EPS12V 2.92
PSU color	Black
Sleep state compliance	C6/C7 compatible
Approvals & certifications	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Warranty	7 years

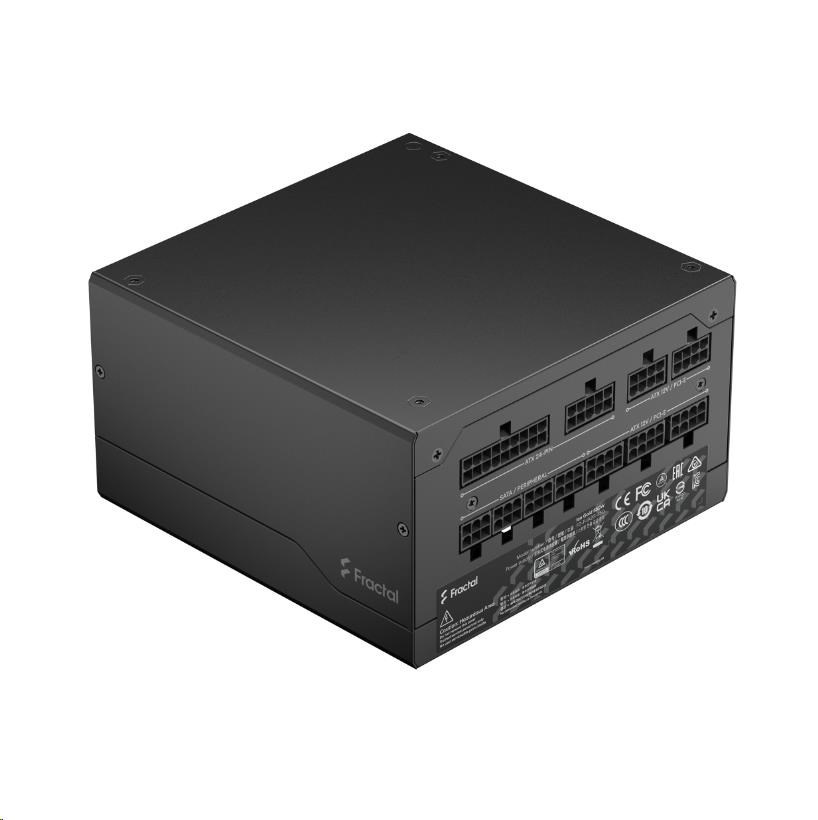

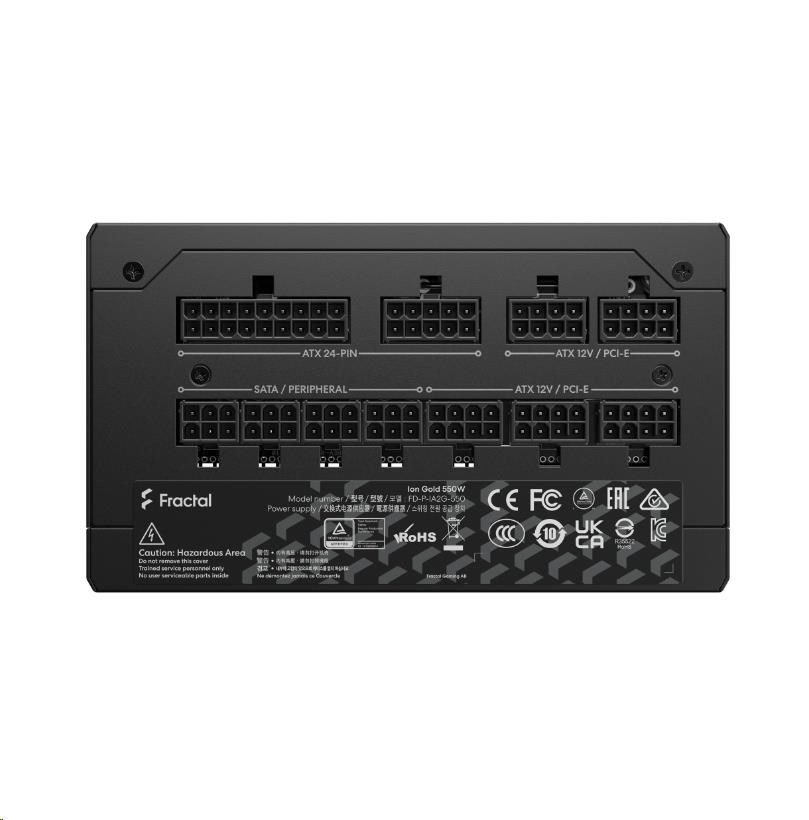

Connectors
ATX 24-pin	1
EPS/ATX12V	1
PCIe	2
SATA	6
Peripheral	6
DC Output
3.3V	20A
5V	20A
3.3V and 5V combined	110W
12V	45.8A
-12V	0.3A
+5Vsb	3A
Total Power	550W
Cable Configuration (length in mm between connectors)
ATX 24-pin	500
ATX 12V 4+4 pin	600
EPS12V 8-pin	N/A
PCIe 6+2 pin	550+150
SATA	500+150+150
Peripheral	500+150+150
