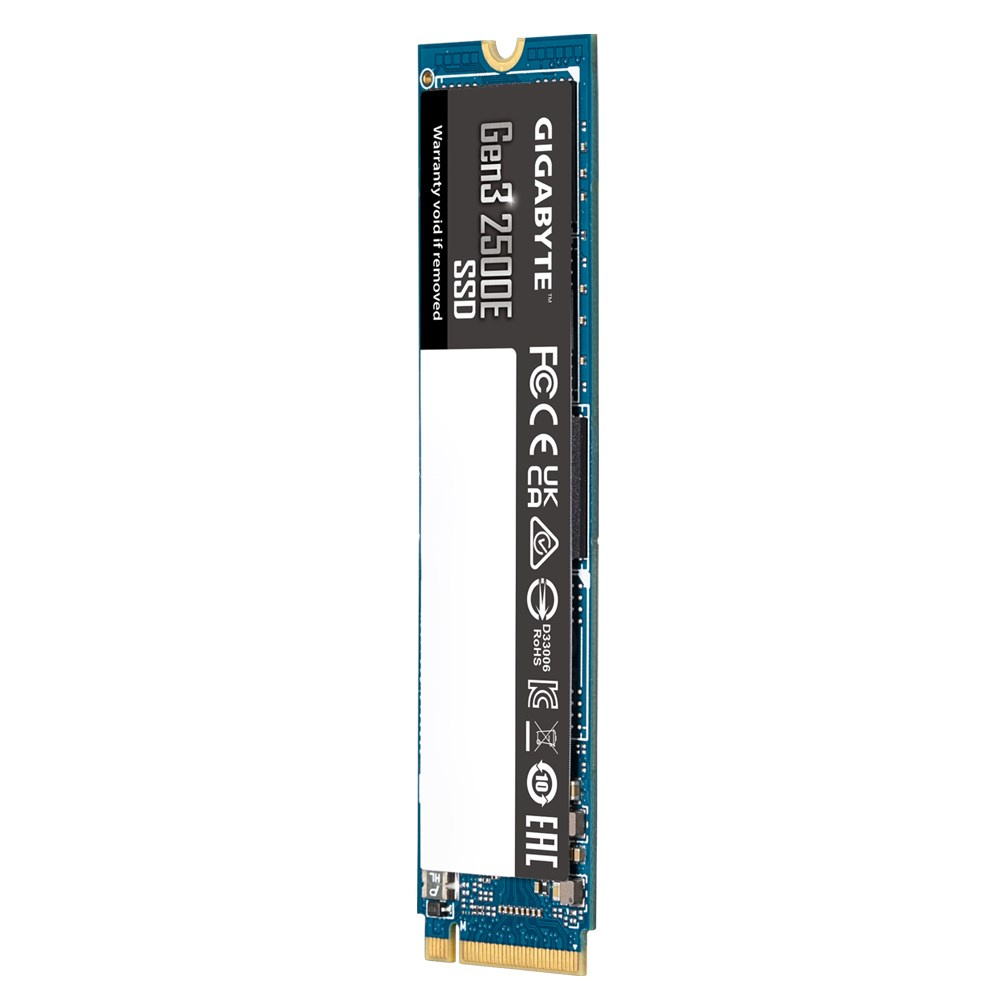

GIGABYTE Gen3 2500E SSD 500GB

• Form Factor: M.2 2280
• Interface: PCI-Express 3.0 x4, NVMe 1.3
• Total Capacity: 500GB
• Sequential Read Speed : up to 2300 MB/s
• Sequential Write speed : up to 1500 MB/s
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T support
• Energy-Efficient

Interface

PCIe 3.0x4, NVMe1.3 interface

Form Factor

M.2 2280

Total Capacity

500GB

External DDR Cache

N/A

Sequential Read speed

Up to 2300 MB/s

Sequential Write speed

Up to 1500 MB/s

Random Read IOPS

Up to 60K

Random Write IOPS

Up to 240K

Dimension

22 x 2.3 x 80 mm

Mean time between failure (MTBF)

1.5 million hours

Power Consumption (Active)

Average R : 2670mW
Average W : 3200mW

Power Consumption (Idle)

Idle : 30mW
L1.2 < 5mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

Warranty
1. Limited 3 years or 120TBW.
2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
