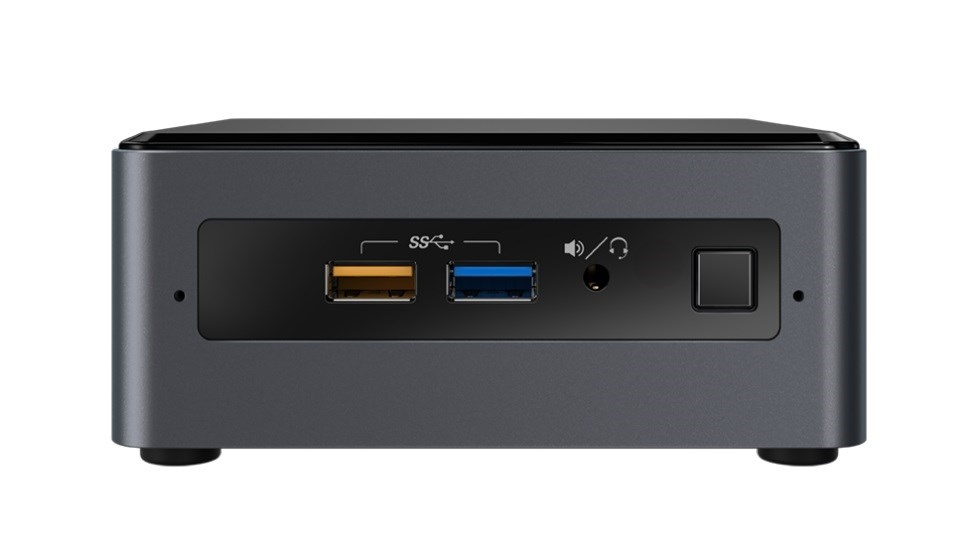

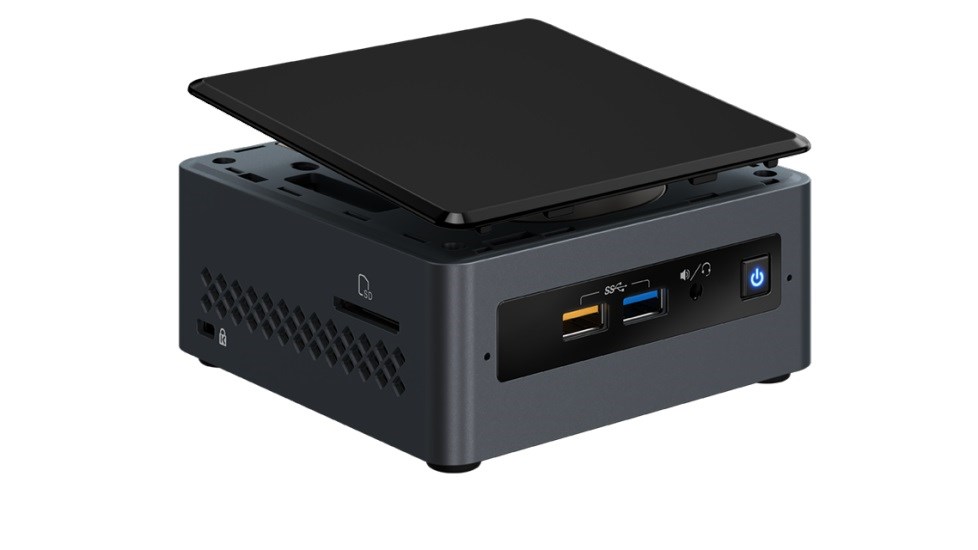

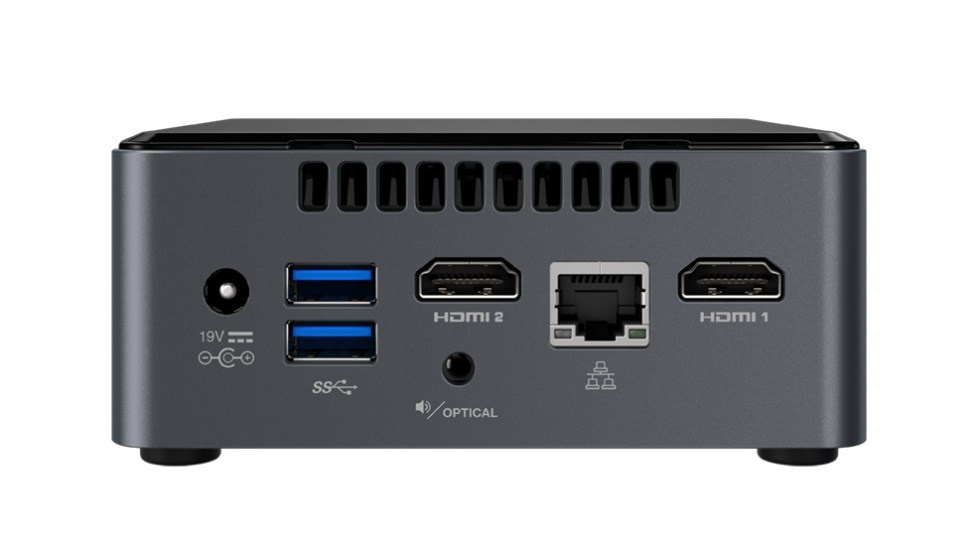

INTEL NUC Kit 7PJYHN2 Pentium/USB3/HDMI/WIFI/2,5", bez kabelu a audia
Popis a parametry
Diskuse
INTEL NUC Kit 7PJYHN2 Pentium/USB3/HDMI/WIFI/2,5", bez kabelu a audia
| Code Name | JUNE CANYON |
| Essentials | |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | 2.5" Drive |
| # of Internal Drives Supported | 1 |
| Lithography | 14 nm |
| TDP | 10 W |
| DC Input Voltage Supported | 12-19 VDC |
| Processor Included | Intel® Pentium® Silver J5005 Processor (4M Cache, up to 2.80 GHz) |
| Warranty Period | 3 yrs |
| Supplemental Information | |
| Embedded Options Available | No |
| Description | Other features: Includes SDXC card slot, dual microphones |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 8 GB |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 38.4 GB/s |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Integrated Graphics ‡ | Yes |
| Graphics Output | 2x HDMI 2.0a |
| # of Displays Supported ‡ | 2 |
| Expansion Options | |
| Removable Memory Card Slot | SDXC with UHS-I support |
| I/O Specifications | |
| # of USB Ports | 6 |
| USB Configuration | 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers |
| USB Revision | 2.0, 3.0 |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Total # of SATA Ports | 1 |
| Max # of SATA 6.0 Gb/s Ports | 1 |
| RAID Configuration | N/A |
| Audio (back channel + front channel) | no |
| Integrated LAN | 10/100/1000 |
| Integrated Wireless‡ | Intel® Wireless-AC 9462 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| S/PDIF Out Connector | TOSLINK |
| Additional Headers | CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL |
| Package Specifications | |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® vPro™ Technology ‡ | No |
| TPM | No |
| Intel® HD Audio Technology | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
.
ParametryPorovnání
Řada procesorů
Intel Pentium
Velikost paměti RAM
8 GB
Typ disku
SSD
Provedení počítače
Mini-PC
Model grafické karty
Intel UHD
Výbava PC
Wi-Fi
Výbava PC
BlueTooth
Rozhraní
USB 3.0
Rozhraní
HDMI
Počet jader
4
Frekvence CPU
1,5 GHz
Obsazené/celkemsloty RAM
0/2
Počet USB 3.2 Gen 1
4
Typ grafické karty
Intel
Typ paměti
DDR4 SODIMM
Výrobce CPU
Intel
Frekvence CPU max
2,8 GHz
Frekvence paměti
2400 MHz
TDP CPU
10W
Typ sestavy
Kancelářsky
