• Designed for most 37" - 70" flat and curved screens
• Weight capacity: 50 kg (110 lbs.)
• Swivel: +/- 180°
• Tilt: 0 to 25°
• Height-adjustable extension pole: 1060 to 1560 mm (42 to 61 in.)
• Post-leveling adjustment: +/- 3°
• Ceiling plate adjustment for sloped ceilings: +/- 60°
• Total dimensions, fully extended (L x W x H): 435 x 680 x 1778 mm (17.13 x 26.77 x 70 in.)
• Pole diameter upper part: 48 mm (1.89 in.)
• Pole diameter lower part: 40 mm (1.57 in.)
• Ceiling plate width: 200 mm (7.87 in.)
• Weight: 7 kg (15.43 lbs.)
• VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400

  Package Contents
• Full-Motion Height-Adjustable TV Ceiling Mount
• Installation hardware with instructions

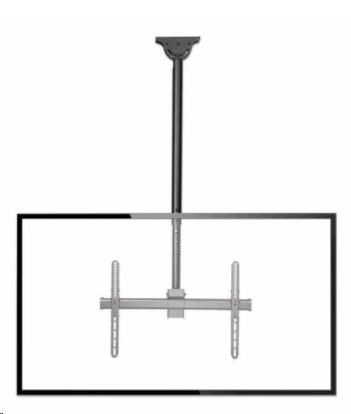

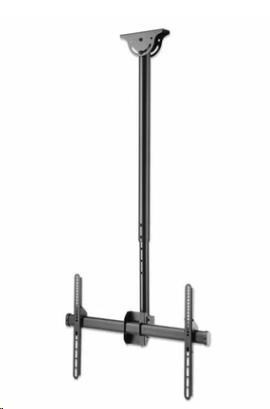

Full-motion height-adjustable TV Mount for sloped and flat ceilings to save wall and floor space

Upgrade viewing perspectives when wall and floor space is limited or low-level installations are impractical. This Manhattan TV Ceiling Mount holds a 37" to 70" LCD, LED or plasma display up to 50 kg (110 lbs.). It is supported by its powder-coated, heavy-duty steel construction for a secure and confident overhead installation.

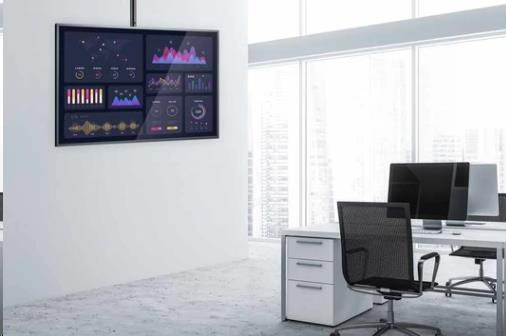

Keep your guests and co-workers informed and entertained

Designed for both residential and business applications, this mount is ideal for conference rooms, lobbies, entrances, meeting spaces, classrooms, hospitality, digital signage, video conferencing, surveillance and more.

Viewable from anywhere in the room

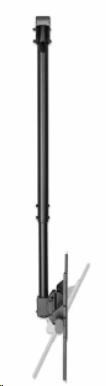

The full-motion mount lets you rotate your display around the pole 360° without using tools and can be tilted up to 25° towards your audience for optimum visibility. Such great options keep images, contrast and colors clear, sharp and defined with no glare.

Adjustable height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling between 1060 and 1560 mm (42 to 61 in.).

Easy installation

Simply attach the included vertical brackets with built-in hooks to the back of your TV and then hang your display securely onto the mount. The mount's +/-3 degree post-installation leveling adjustment feature ensures ideal positioning even after hanging.

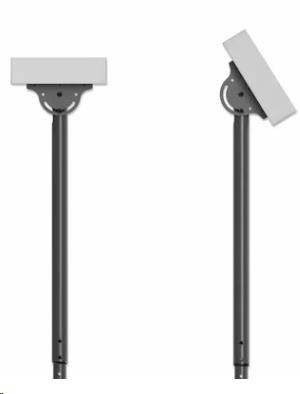

Suits flat and sloped ceilings

This Manhattan TV mount accommodates both ceiling types: You can adjust the ceiling plate +/- 60° to work with sloped and level (flat) surfaces.

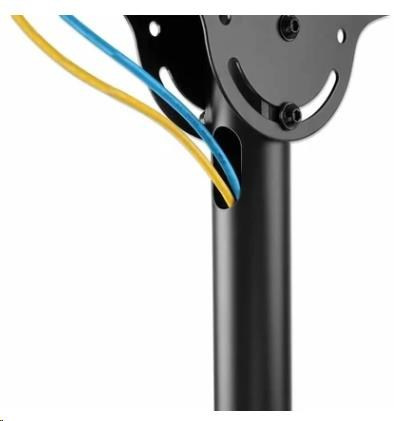

Clean-looking, clutter-free cable management

Internal cable management keeps your cords concealed and organized to give a professional look to the installation.

• Supports one 37" to 70" TV up to 50 kg (110 lbs.)
• Optimized views with 0 to 25° tilt, 360° swivel and +/- 3° post-installation leveling adjustment
• Ceiling plate with +/- 60° adjustment to suit sloped and flat ceilings
• Telescopic extension pole from 1060 to 1560 mm (42 to 61 in.)
• Heavy-duty steel construction with powder coating
• Internal cable management for a clutter-free appearance
• Easy hook-and-mount installation
• Saves wall and floor space; ideal for conference rooms, lobbies, classrooms, digital signage, surveillance and more
• Meets VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400
• Lifetime warranty
