MSI MB Sc LGA1151 MAG Z390 TOMAHAWK, Intel Z390, VGA, 4xDDR4

Socket (patice):Socket 1151; Formát:ATX; Integrovaná grafická karta; Chipset:Intel; Technologie paměti RAM:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:2; Podpora RAID:1, 5, 10; Rozhraní:HDMI, USB 2.0, USB 3.1, 3.5mm Jack, LAN, DisplayPort, USB Type-C; Další rozhraní:S/PDIF.... více
Běžná cena: 4 758  (-18%)
3 226.45 Kč bez DPH
Na dotaz
3 904 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 2647670
EAN: 4719072595036
Záruka: 36 Měsíc(ů)
Výrobce: MSI
Popis a parametry
Diskuse

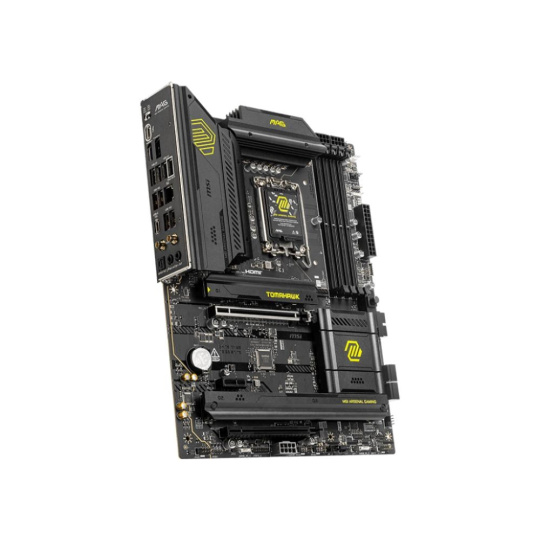

MSI MB Sc LGA1151 MAG Z390 TOMAHAWK, Intel Z390, VGA, 4xDDR4

MAG Z390 TOMAHAWK


Military style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

  • Supports DDR4 Memory, up to 4400(OC) MHz

  • Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ensures even high-end processors to run in full speed.

  • Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready

  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2

  • Set Core Power Free: Core Boost, 8+4 pin CPU power connector, DDR4 Boost

  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.



TECHNICAL SPECIFICATIONS







































PROCESSOR Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® Z390 Chipset
MEMORY

  • 4 x DDR4 memory slots, support up to 128GB

  • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*

  • Supports Dual-Channel mode

  • Supports non-ECC, un-buffered memory

  • Supports Intel® Extreme Memory Profile (XMP)


SLOTS

  • 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)

  • 2 x PCIe 3.0 x1 slots

  • 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only


ONBOARD GRAPHICS

  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz

  • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz


MULTI-GPU

  • Supports 2-Way AMD® CrossFire™ Technology


STORAGE

Intel® Z390 Chipset



  • 6x SATA 6Gb/s ports

  • 2x M.2 slots (Key M)
    * M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    * M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    * Intel® Optane™ Memory Ready


RAID

Intel® Z390 Chipset



  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices


USB

Intel® Z390 Chipset



  • 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)

  • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors

  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)


AUDIO

Realtek® ALC892 Codec



  • 7.1-Channel High Definition Audio

  • Supports S/PDIF output


LAN

  • 1 x Intel® I219-V Gigabit LAN controller

  • 1 x Intel® I211-AT Gigabit LAN controller


INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector

  • 1 x 8-pin ATX 12V power connector

  • 1 x 4-pin ATX 12V power connector

  • 6 x SATA 6Gb/s connectors

  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

  • 1 x 4-pin CPU fan connector

  • 1 x 4-pin Water Pump connector

  • 5 x 4-pin system fan connectors

  • 1 x Serial port connector

  • 1 x Front panel audio connector

  • 2 x System panel connectors

  • 1 x Chassis Intrusion connector

  • 1 x TPM module connector

  • 2 x 4-pin RGB LED connectors

  • 1 x 3-pin RAINBOW LED connector


BACK PANEL PORTS

  • PS/2 Combo Port

  • LAN Port

  • HD Audio Connectors

  • USB 2.0 Port

  • DisplayPort

  • HDMI Port

  • USB 3.1 Gen2 Type A

  • USB 3.1 Gen2 Type A+C

  • Optical S/PDIF OUT


DIMENSIONS

  • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)

  • ATX Form Factor


MOUNTING 9 mounting holes
OPERATING SYSTEM

  • Support for Windows® 10 64-bit


MORE INFO https://www.msi.com/Motherboard/MAG-Z390-TOMAHAWK/Specification

.
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1151
Integrovaná grafická karta
Ano
Chipset
Intel
PCI express 16x
Více než 1
Integrovaná LAN karta
2
Podpora RAID
10
Další rozhraní
S/PDIF
Rozhraní
3.5mm Jack
Formát
ATX
