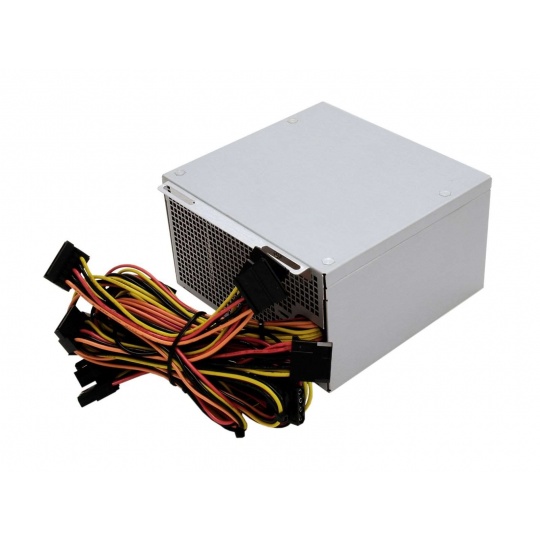

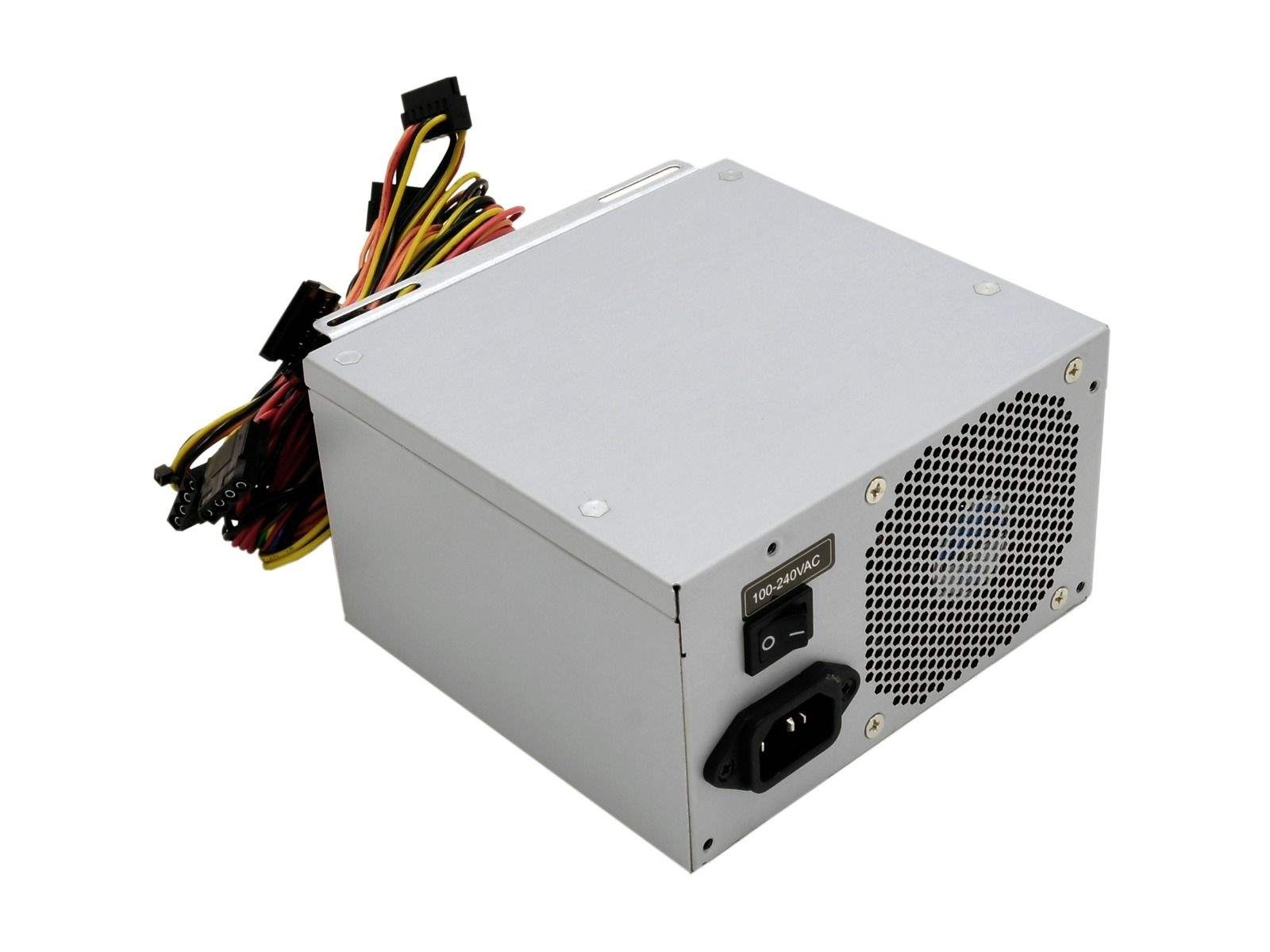

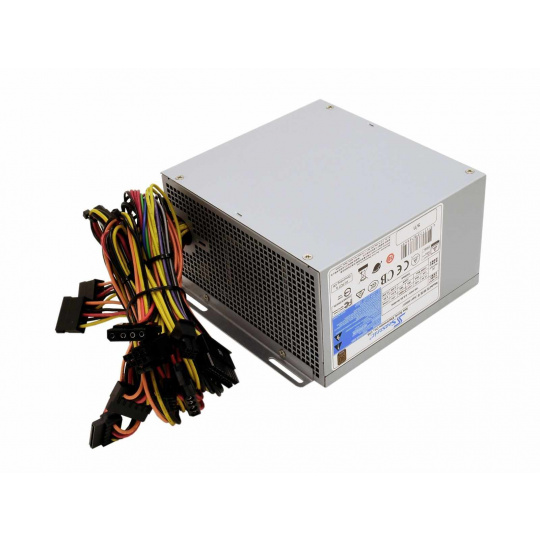

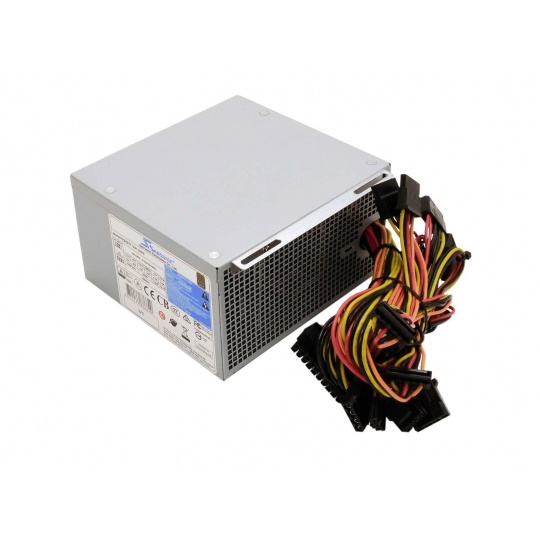

SEASONIC zdroj 500W SSP-500ES2, 80+ Bronze

Name: SEASONIC zdroj 500W SSP-500ES2, 80+ Bronze
Brand: Seasonic
SKU: 522279
Price: 1849 CZK
Availability: OutOfStock

-23%

Kód: 522279

EAN: 4711173876595

Záruka: 36 Měsíc(ů)

Výrobce: Seasonic

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse

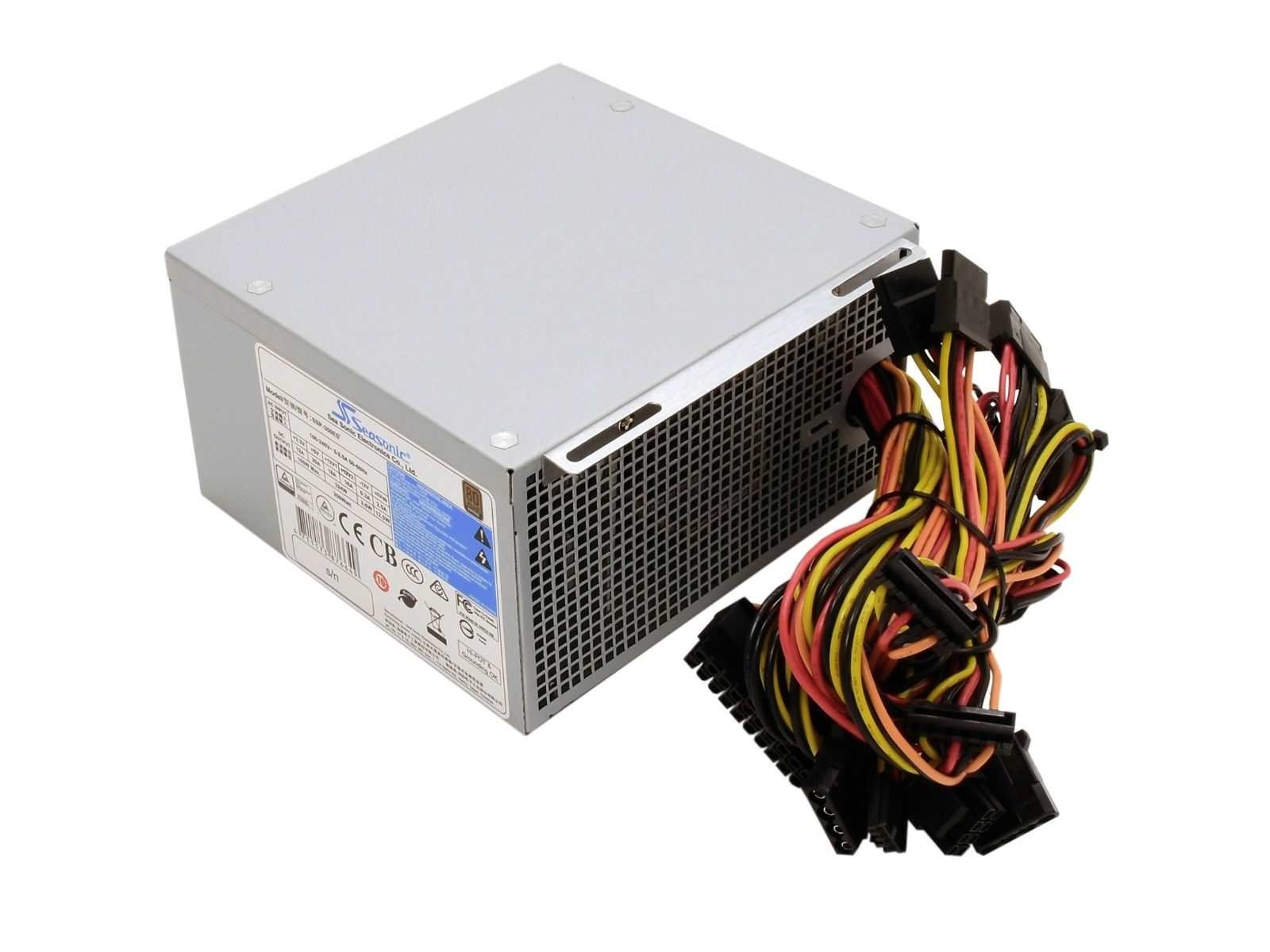

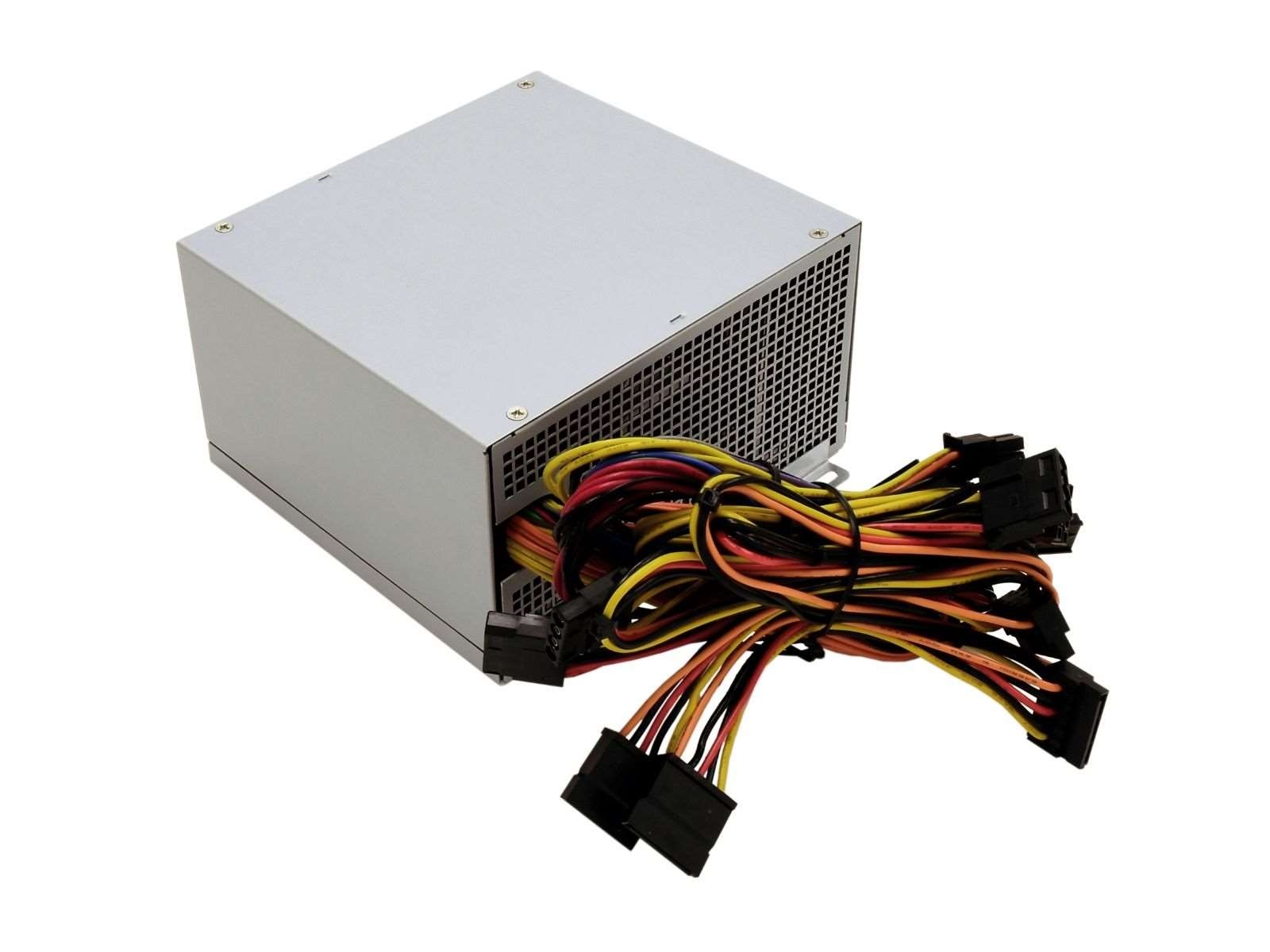

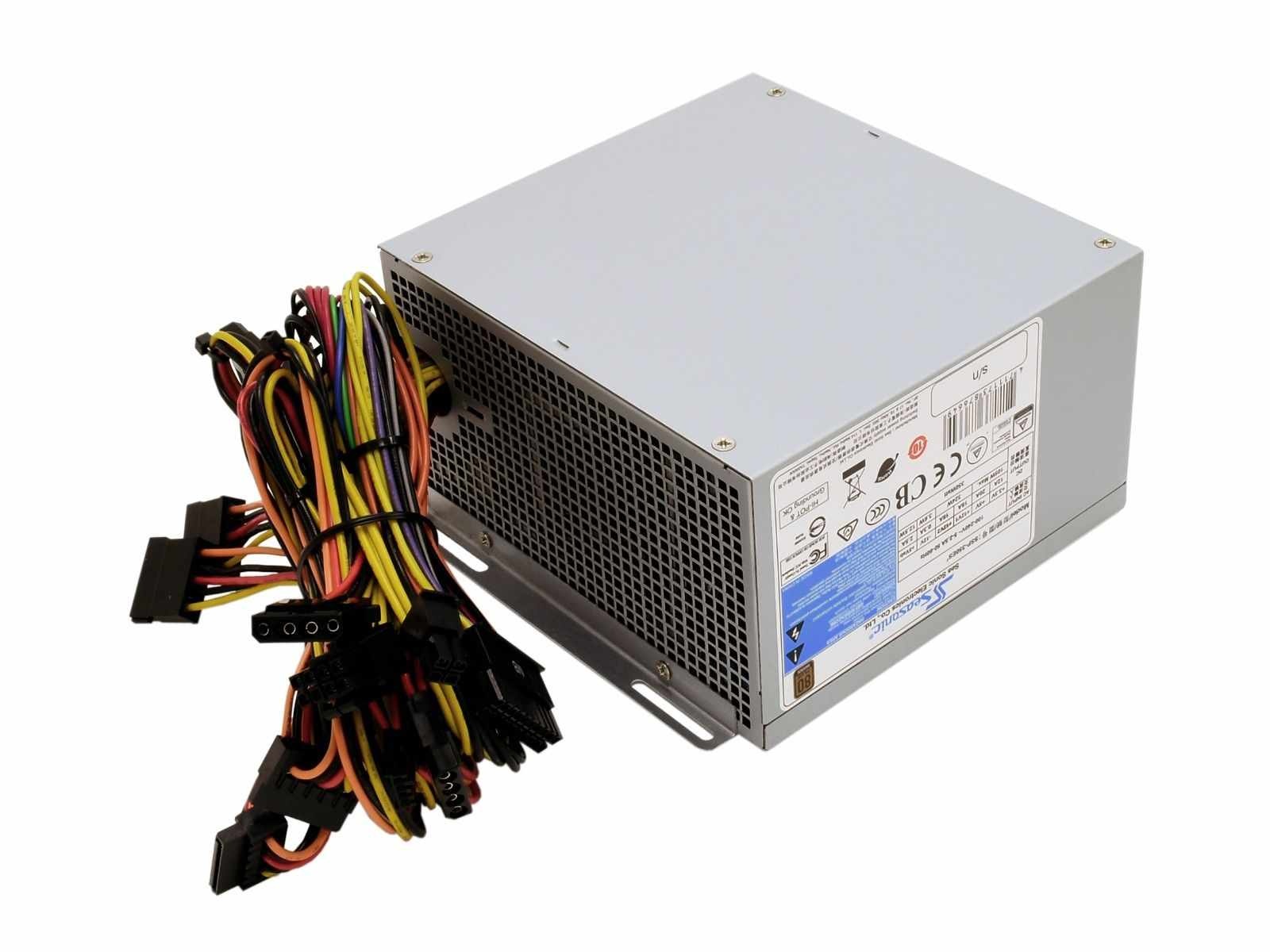

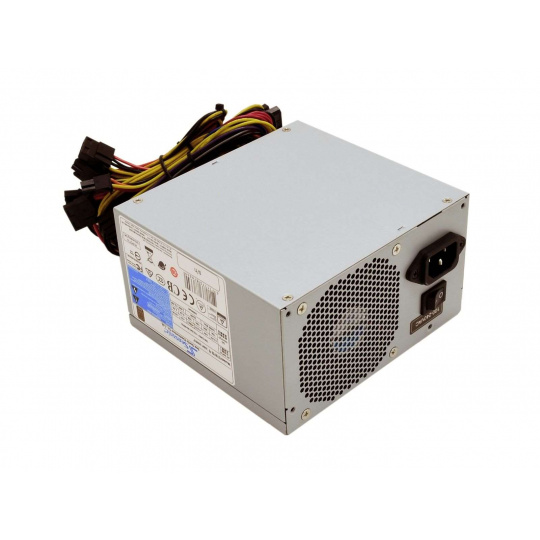

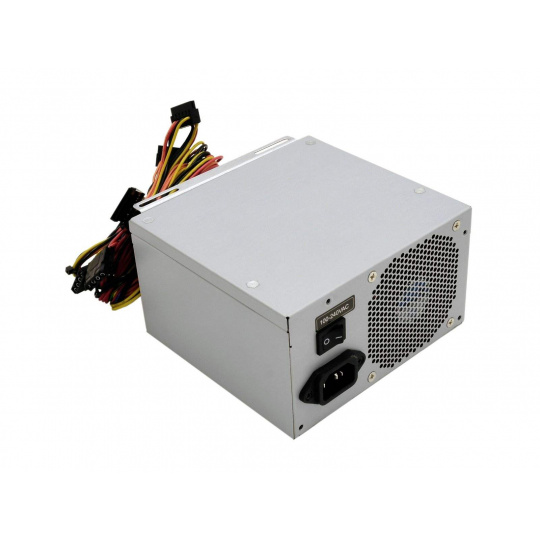

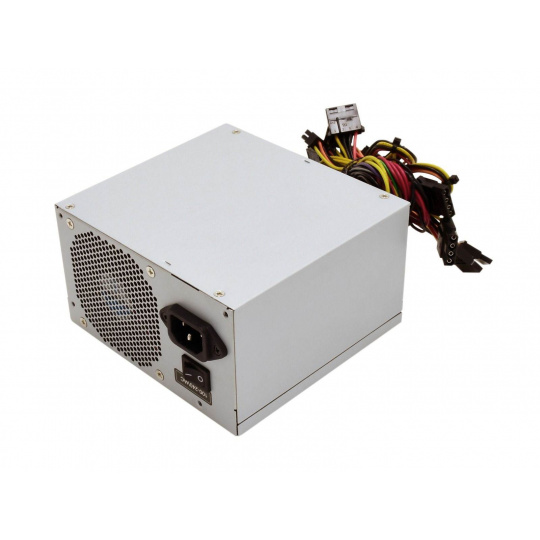

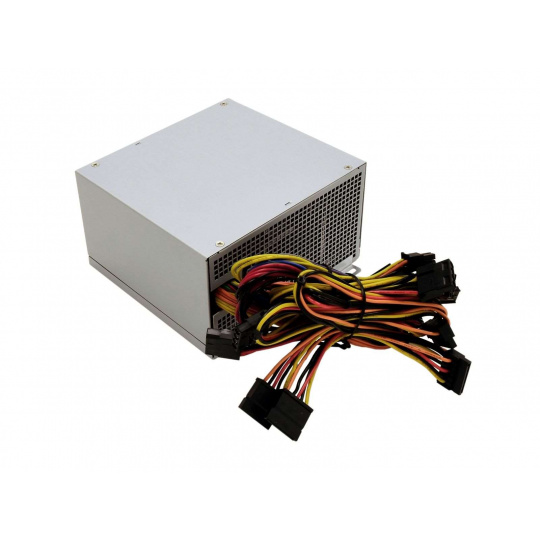

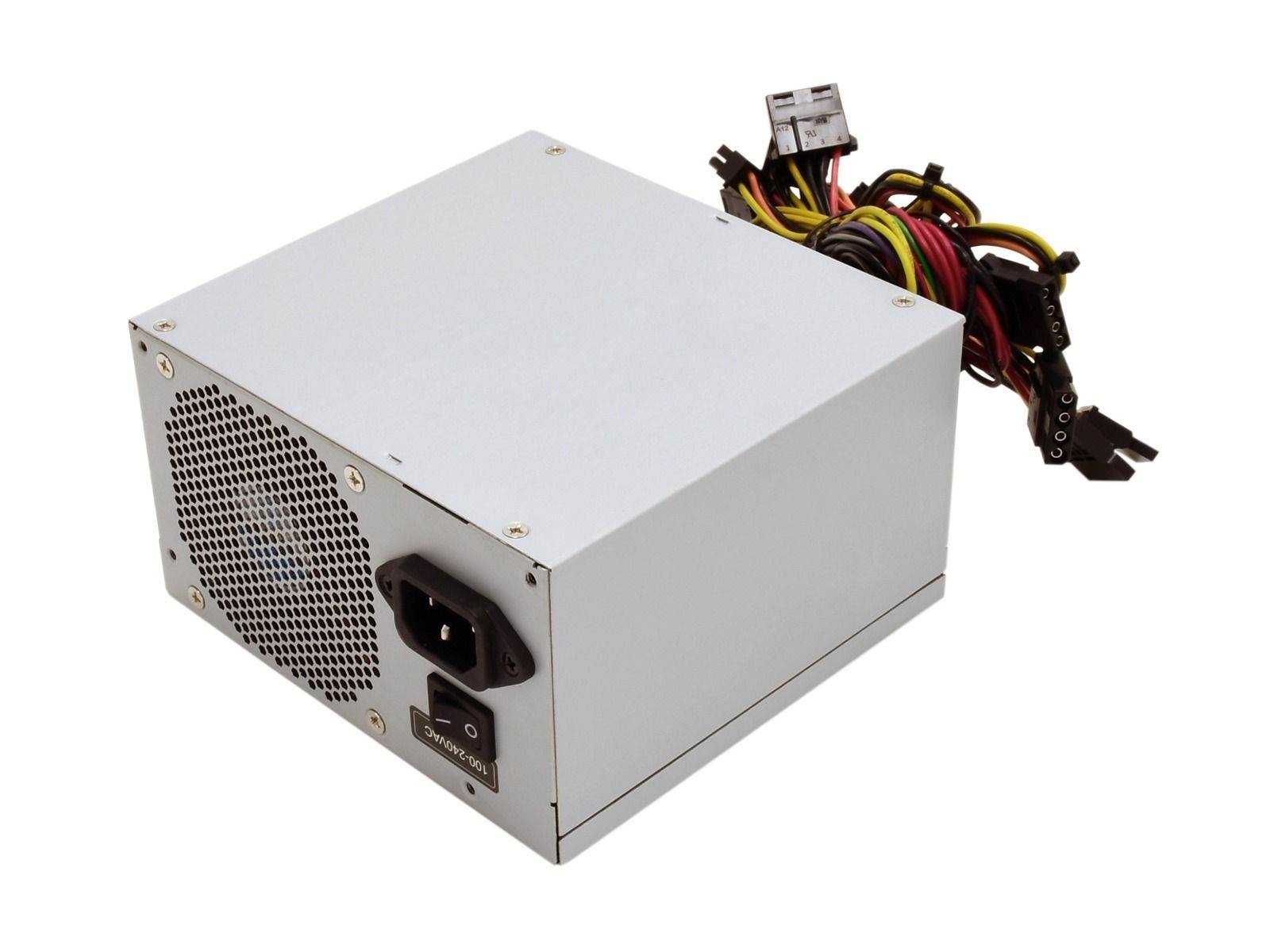

SEASONIC zdroj 500W SSP-500ES2, 80+ Bronze

ET2 ATX Power Supply

This Seasonic industrial power supply is version 12 V v.2.3 compliant and 80 PLUS® Bronze rated. Its double forward converter circuit, super low noise fan control and great protection features make it a dependable choice for a wide range of systems. This unit is PCIe and SATA cable ready and with its full AC input range. It is a stable, efficient and reliable power supply, ready to be used in any ATX form factor build. The newly released ES2 complies fully to the new safety standard of IEC 62368-1.

Specifications

SSP-500ES2

Specifications
Input frequency	50 / 60 Hz
Efficiency	80 PLUS Bronze
Line regulation	± 1 % (typical)
Load regulation	± 5 % (typical)
Cross regulation	± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan)	> 100,000 hours
Active Power Factor Correction	99 % (typical)

DC Outputs
+3.3 V	+5 V	+12 V1	+12 V2	-12 V	+5 V_sb	Total continuous power	Input Type
24 A	24 A	18 A	18 A	0.3 A	2.5 A	500 W	100–240 VAC
130 W (max.)		456 W (max.)		3.6 W	12.5 W	500 W	100–240 VAC
