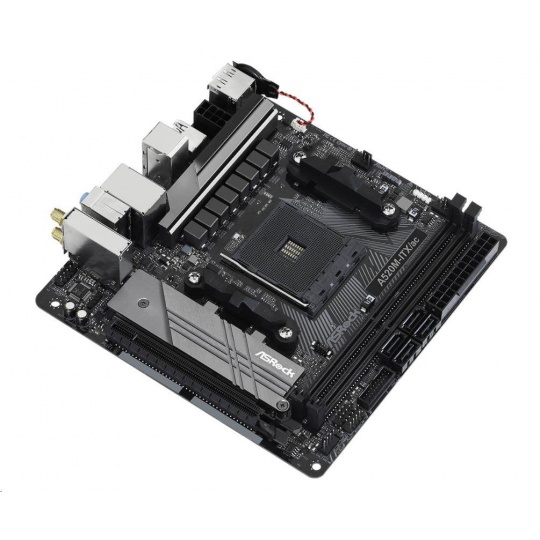

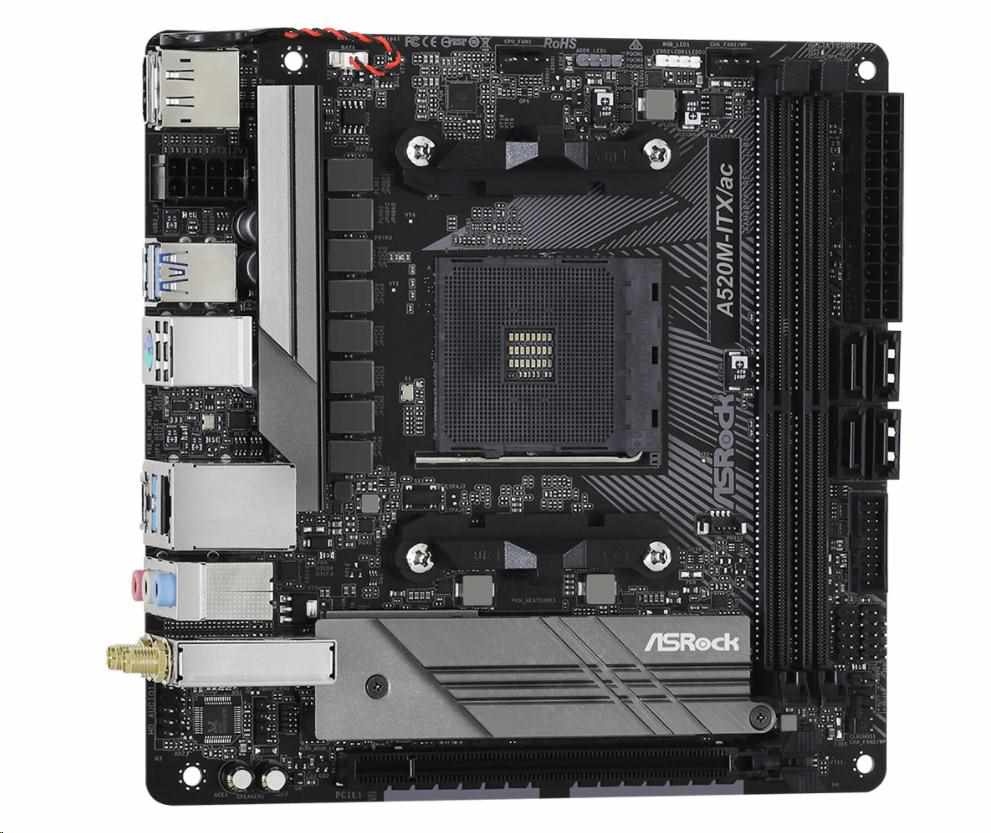

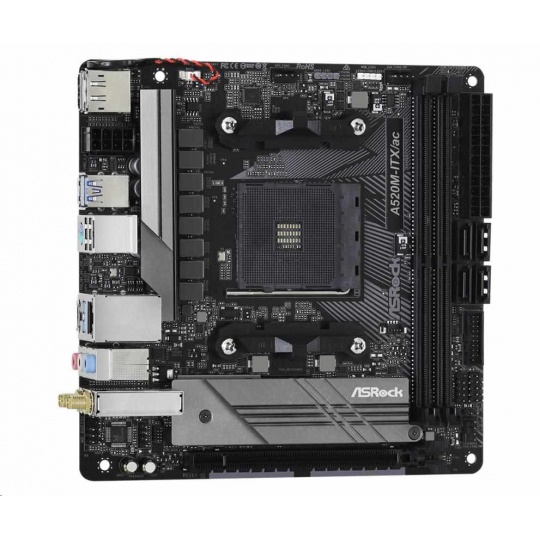

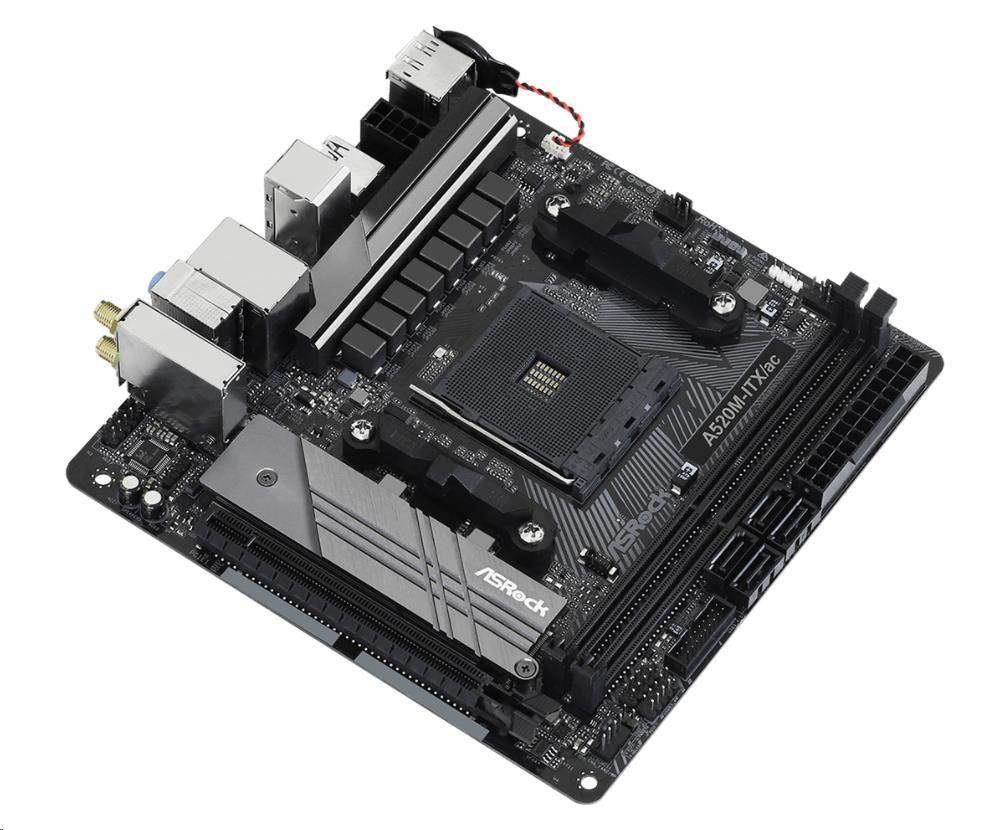

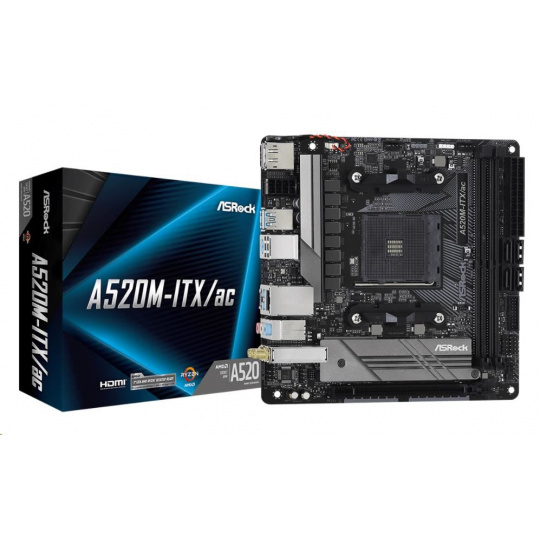

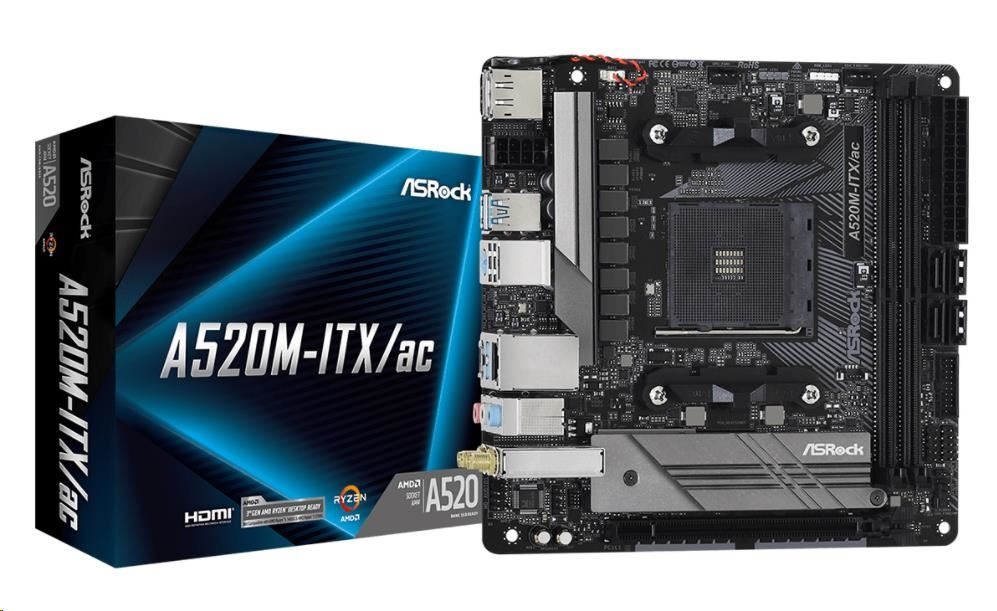

ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket AM4

Chipset

AMD

Chipset

AMD A520

PCI Express x16

Podpora RAID

COM port

LPT port

Formát základní desky

Mini-ITX

3.5mm Jack

Ano

Bezdrátové připojení

Wi-Fi

Bezdrátové připojení

WiFi + Bluetooth

Pro procesory

AMD

Počet paměťových slotů

DisplayPort

TPM

USB 2

USB 3

M.2 slot

SATA 3

HDMI

Led Header

Ano

USB C

LAN

1Gbit/s

Tato položka nebyla doposud diskutována. Pokud chcete být první, klikněte na tlačítko Přidat příspěvek

ASRock MB Sc AM4 A520M-ITX/AC, AMD A520, 2xDDR4, HDMI, DP

Unique Feature	ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB Intel® 802.11ac WiFi ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)* - Digi Power design - 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD A520
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft® PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) *AMD Ryzen series CPUs (Matisse) supports PCIe riser cards to extend x8/x8 slots Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- Intel® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 + High speed class II
Connector	- 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Supports in total up to 12V/3A, 36W LED Strip Supports in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection

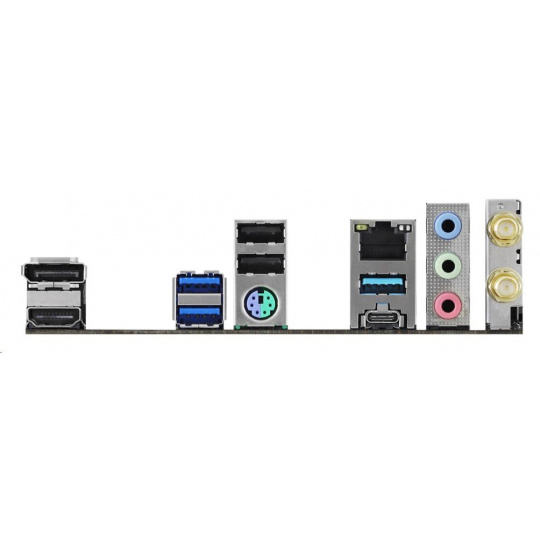

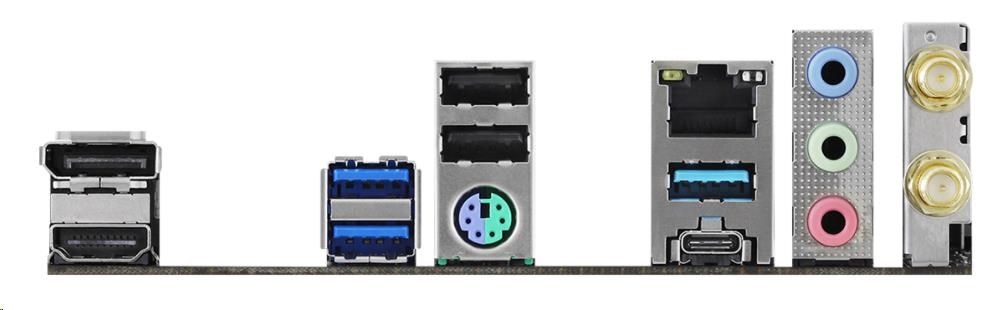

Rear panel I/O	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas
Hardware Monitor	- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System	- Microsoft® Windows® 10 64-bit
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
