ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA
ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA

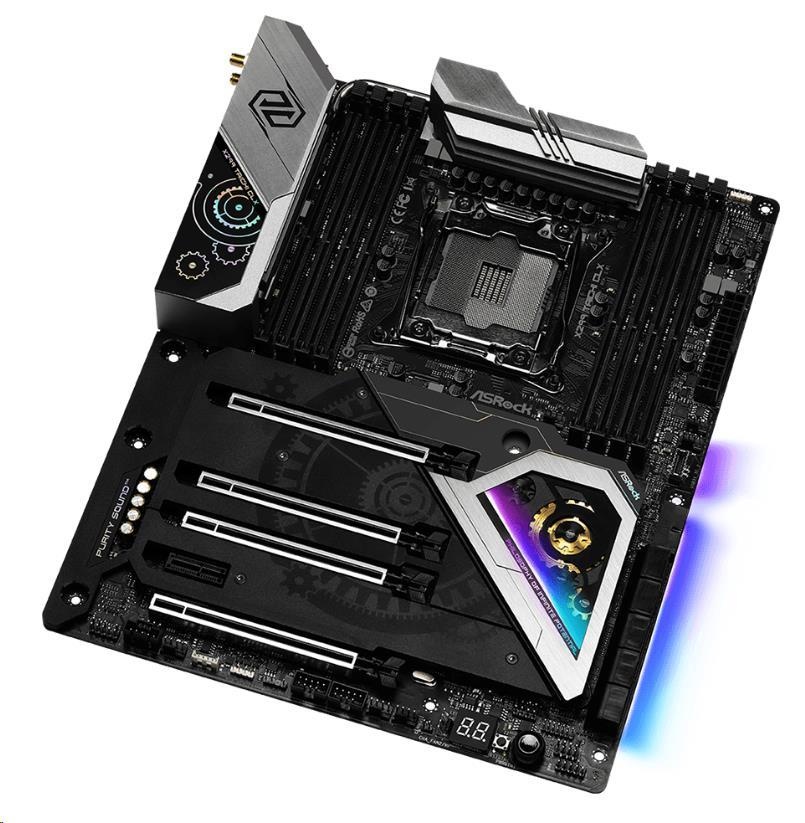

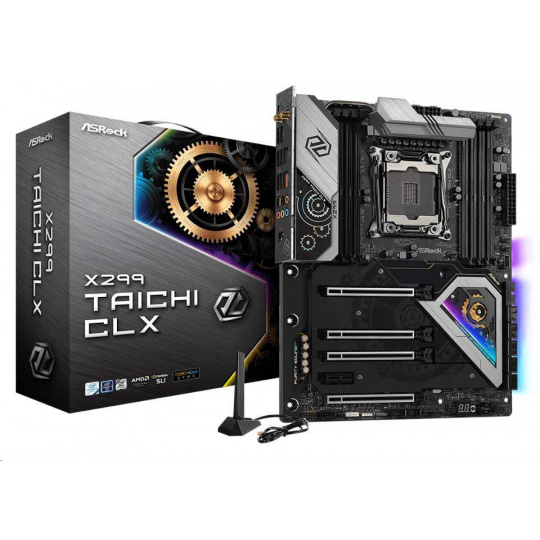

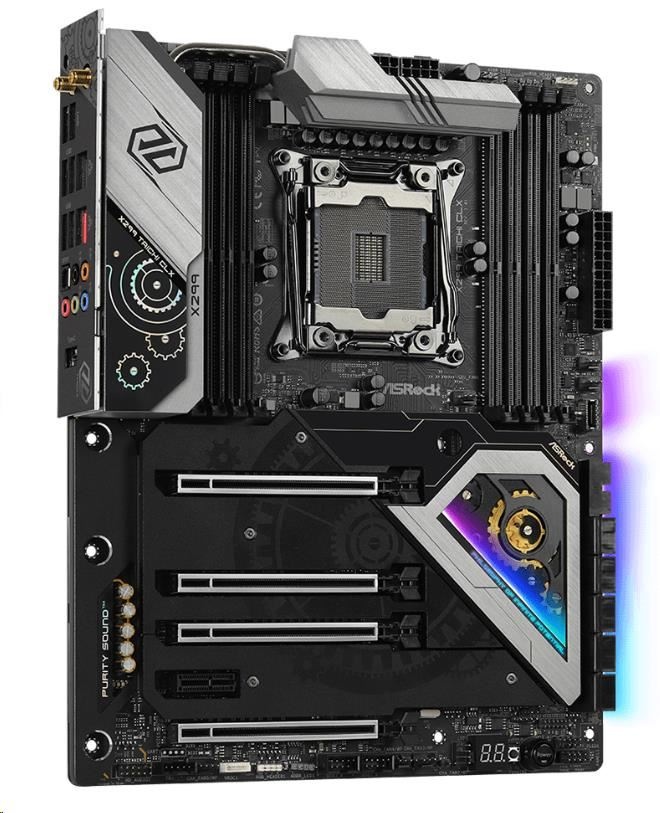

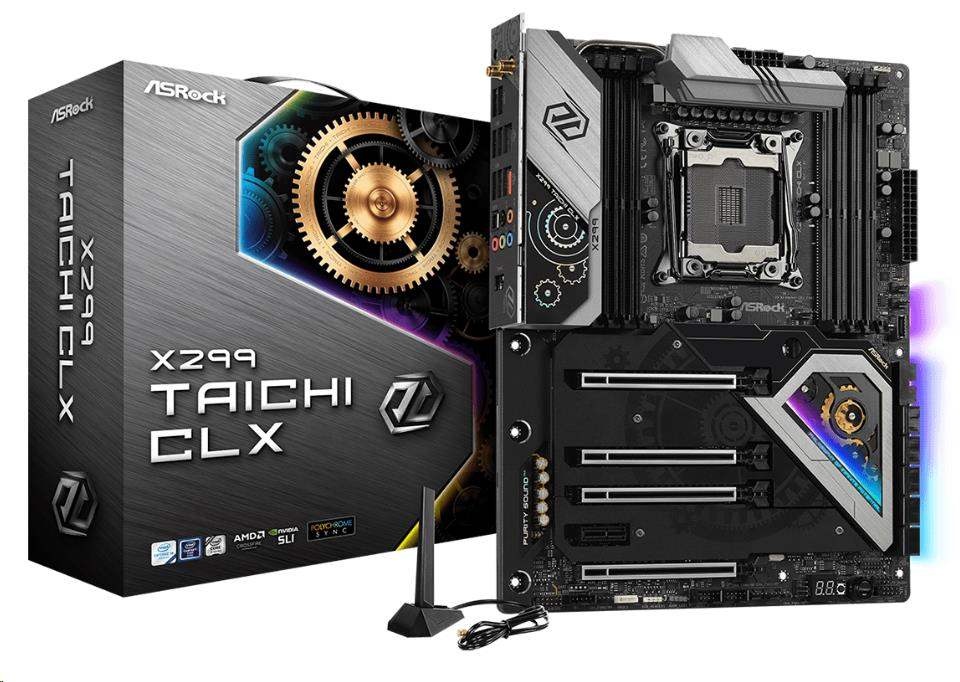

X299 Taichi CLX
- Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket
- 13 Power Phase Design, Dr. MOS
- Supports DDR4 4200+(OC)
- 4 PCIe 3.0 x16, 1 PCIe 3.0 x1
- NVIDIA® 3-Way SLI., AMD 3-Way CrossFireX.
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound. 4 & DTS Connect
- 10 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 2 Ultra M.2 (PCIe Gen3 x4)
- 1 USB 3.2 Gen2x2 20Gb/s Type-C
- 1 USB 3.2 Gen2 10Gb/s Type-C (Front)
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Realtek 2.5 Gigabit LAN, Intel® Gigabit LAN
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
- ASRock Polychrome SYNC
- Hyper BCLK Engine III
TECHNICAL SPECIFICATIONS
| Unique Feature | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock Type C USB 3.2 Gen2x2 Port (20 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Dr. MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Matte Black PCB - High Density Glass Fabric PCB - 8 Layer PCB - 2oz Copper PCB 2.5G LAN Intel® 802.11ax WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | - Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket (Cascade Lake-X, Skylake X Refresh and Skylake X) |
| Chipset | - Intel® X299 |
| Memory | - Quad Channel DDR4 Memory Technology *The maximum memory frequency supported may vary by processor type. |
| Graphics | - n/a |
| Slots | - 4 x PCI Express 3.0 x16 Slots* *If you install CPU with 48 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x8. If a M.2 PCI Express module is installed on M2_1 or M2_2, PCIE2 will downgrade to x4 mode. If M.2 PCI Express modules are installed on M2_1 and M2_2, PCIE2 will be disabled. **3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 48 lanes or 44 lanes. |
| Storage | - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug* *If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled. **M2_2 is only supported with CPU with 48 lanes. |
| LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG): - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V): - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless LAN | - Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 2.4Gbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO |
| Connector | - 1 x Virtual RAID On CPU Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type). |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |

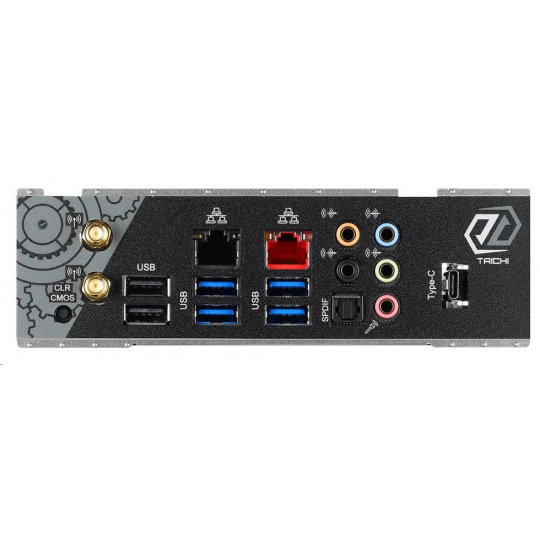

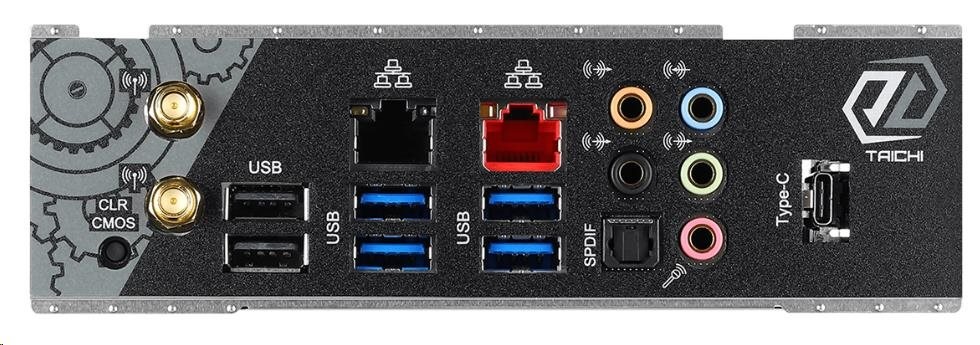

| Rear panel I/O | - 2 x Antenna Ports *Ultra USB Power is supported on USB3_3_4 ports. |
| Software and UEFI | Software *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| BIOS | - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCSA, CPUPLL, CLK VDD Voltage Multi-adjustment |
| Accessories | - Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 3 x Screws for M.2 Sockets - 3 x Standoffs for M.2 Sockets |
| Hardware Monitor | - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA |
| Operating System | - Microsoft® Windows® 10 64-bit |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
.
