ASUS MB Sc AM4 PRIME B450M-K II, AMD B450, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX

Socket (patice):Socket AM4; Chipset:AMD; Technologie paměti RAM:DDR4; Formát základní desky:micro ATX; Podpora RAID:1, 10; PCI Express x16:1; 3.5mm Jack.... více
Běžná cena: 2 039  (-13%)
1 470.25 Kč bez DPH
Skladem > 5 ks
1 779 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 431191
EAN: 4718017932387
Záruka: 36 Měsíc(ů)
Výrobce: ASUS
Popis a parametry
Diskuse

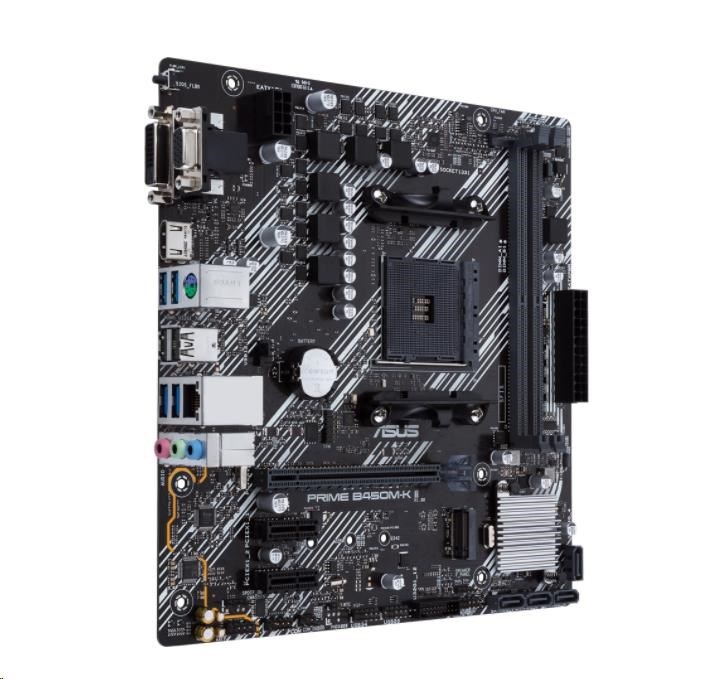

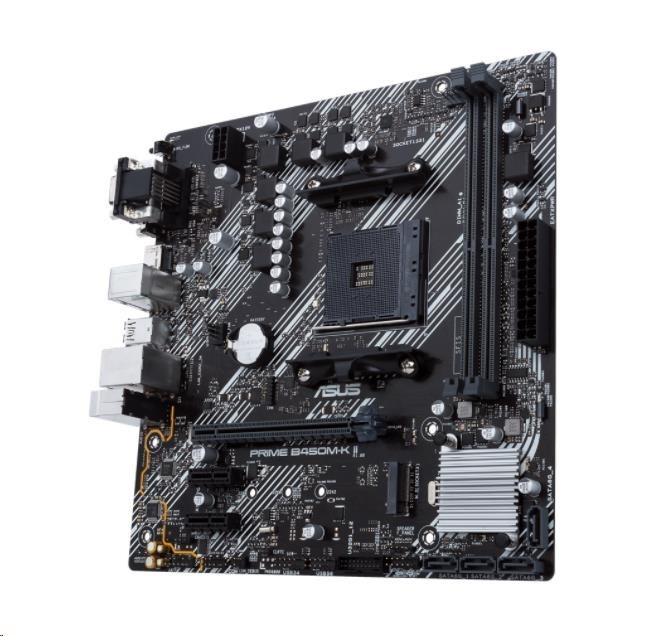

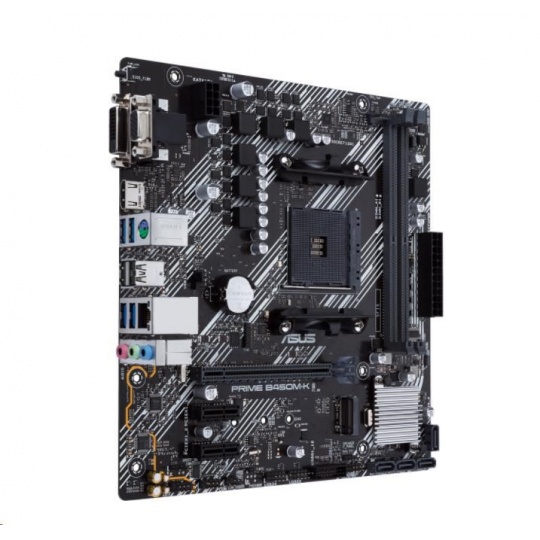

ASUS MB Sc AM4 PRIME B450M-K II, AMD B450, 2xDDR4, 1xHDMI, 1xDVI, 1xVGA, mATX

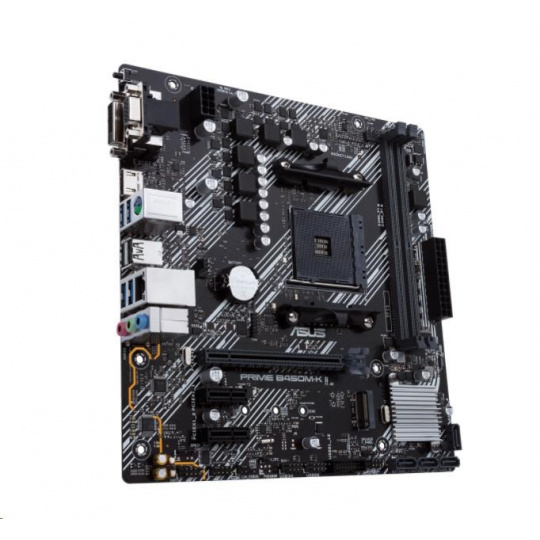

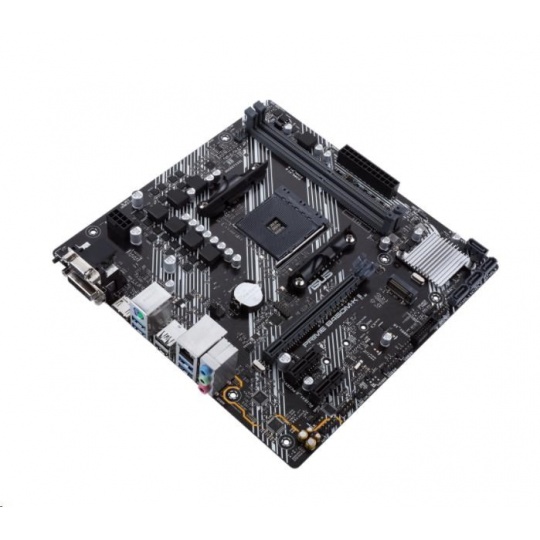

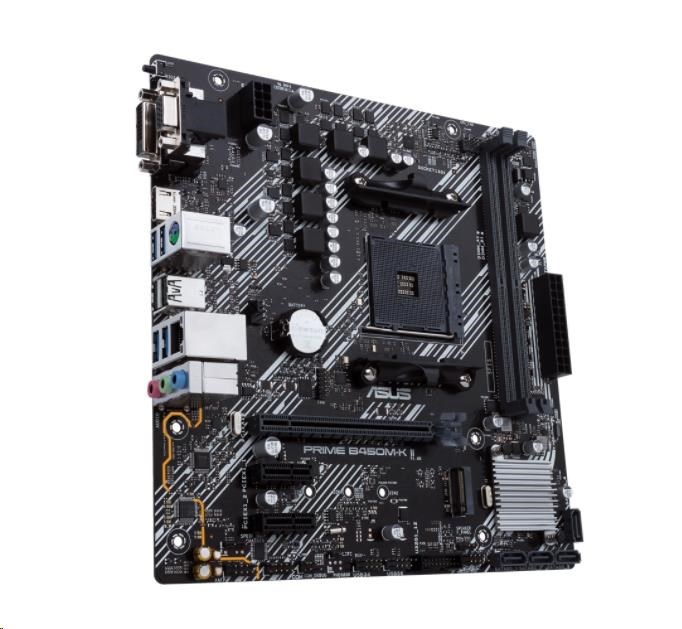

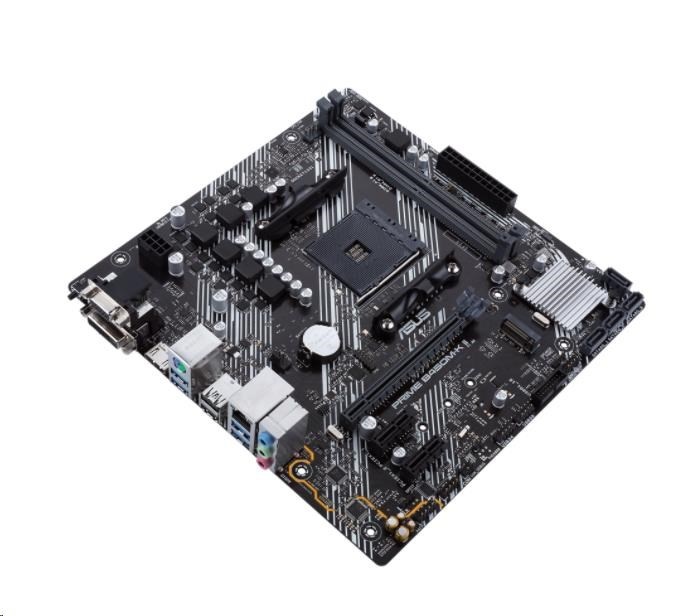

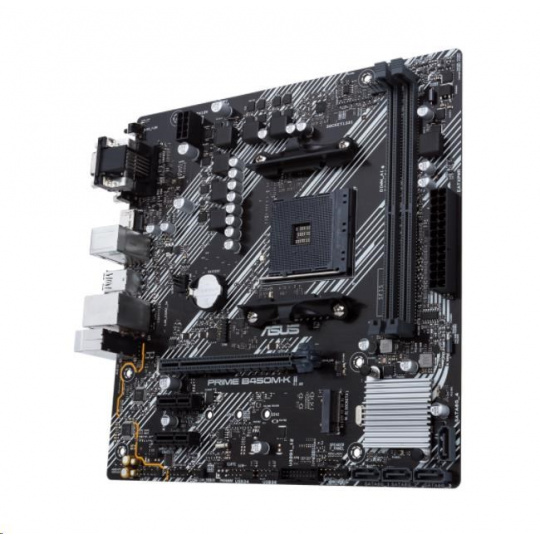

PRIME B450M-K II

AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A, BIOS FlashBack™

  • Comprehensive cooling: PCH heatsink, and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
  • LED illumination: Lighting control for both PCIe slot and audio trace paths


TECHNICAL SPECIFICATIONS

CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
* Refer to www.asus.com for CPU support list
Chipset AMD B450
Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
1 x D-Sub
1 x DVI-D
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.
Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1
Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN Realtek® RTL8111H
ASUS LANGuard
Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports Rear USB Port (Total 6)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port (Total 6)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
PC Cleaner
- EZ update
- System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
ASUS Lighting Control

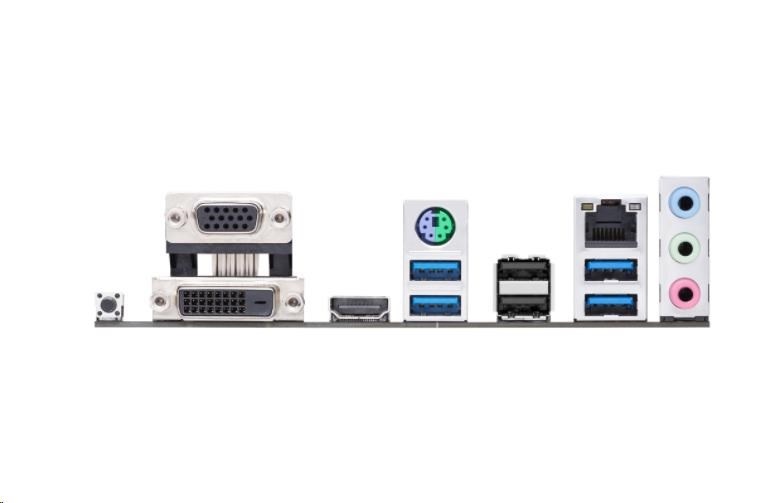

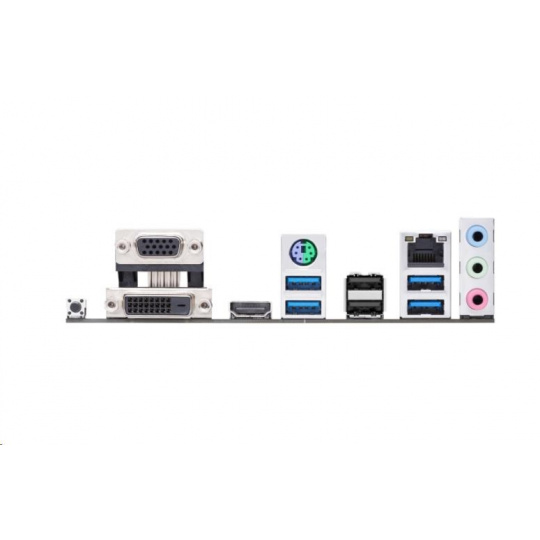

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector

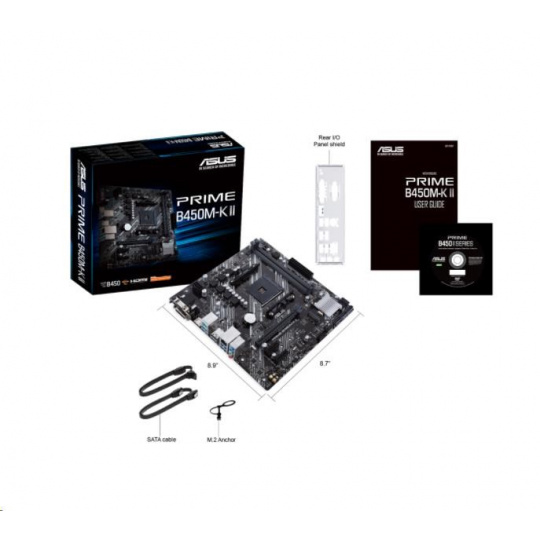

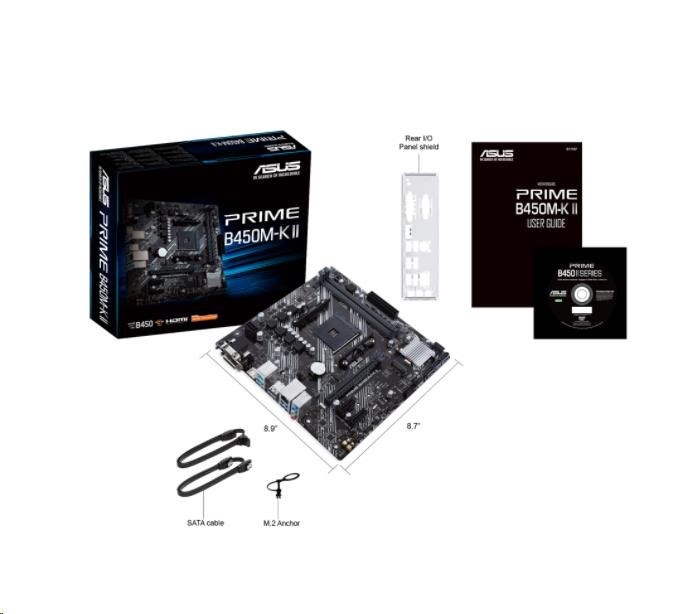

Accessories User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Operating System Windows® 10 64-bit
Windows® 7 64-bit *
Form Factor mATX Form Factor
8.9 x 8.7 inch (22.6 x 22.1 cm)
Note *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Chipset
AMD
PCI Express x16
1
Podpora RAID
1
Podpora RAID
10
Formát základní desky
micro ATX
3.5mm Jack
Ano
