CHIEFTEC zdroj iARENA ECO GPE-600S, 600W, 120mm fan, PFC, účinnost >85%, Bronze, Retail

Výkon zdroje (ve W):600; Formát zdroje:ATX; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Efektivita zdroje:85+.... více
Běžná cena: 2 009  (-26%)
1 230.58 Kč bez DPH
Skladem > 5 ks
1 489 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 1022472
EAN: 4710713234192
Záruka: 24 Měsíc(ů)
Výrobce: Chieftec
Popis a parametry
Diskuse

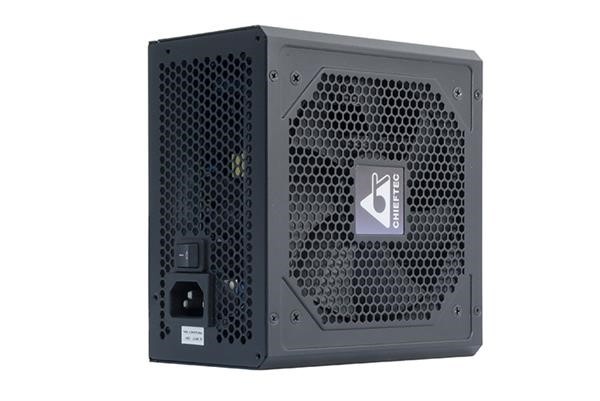

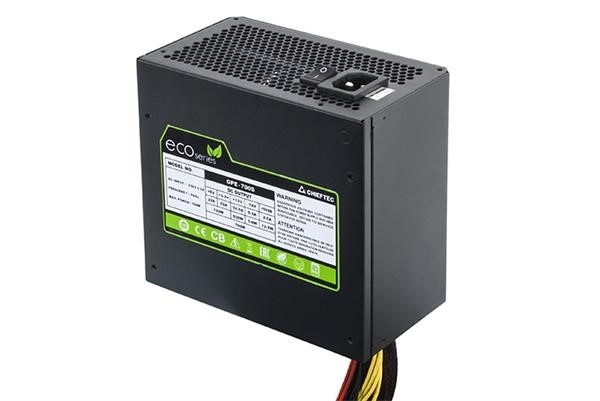

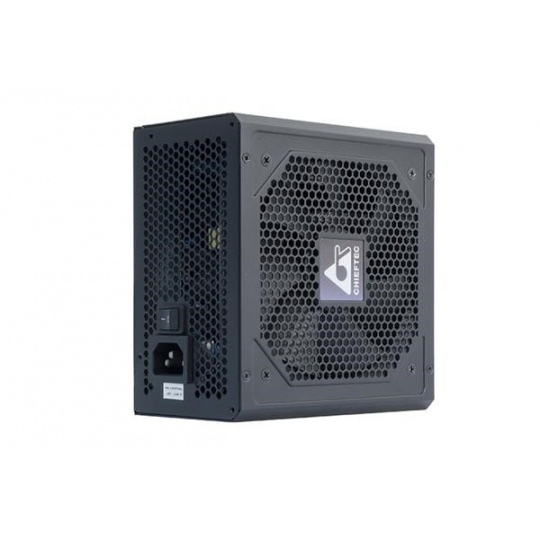

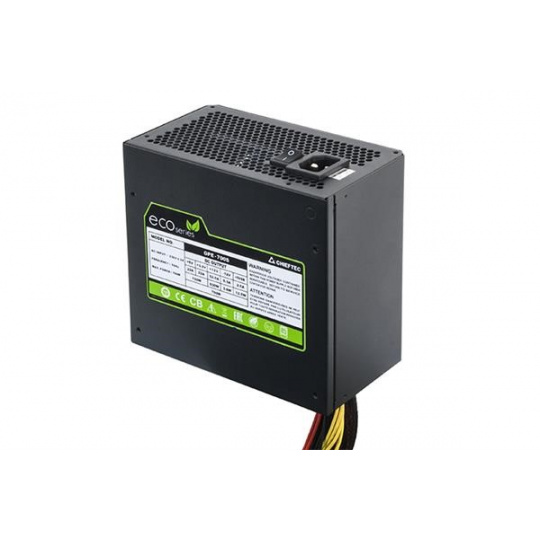

CHIEFTEC zdroj iARENA ECO GPE-600S, 600W, 120mm fan, PFC, účinnost >85%, Bronze, Retail

The name ECO stands for maximum efficiency, ecological values and a new era of Power Supplies so that while in R & D, all relevant factors were considered accordingly, resulting in an absolute value-added solution for both home and office solutions. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures. The efficiency of the four new power supplies at loads of 20%, 50% and 100% lies by a stable and solid 85%, thereby defining the Power Supply to fulfill all ENERGY STAR 5,0 requirements as stipulated by the EU.

Owing to the future-oriented and effective layout of the PCBs, Green IT projects are realized cost efficiently with ease. The performance scale of the four new ECO power supplies range as follows: 400W (GPE-400S), 500W (GPE-500S), 600W (GPE-600S) and 700W (GPE-700S). All power supplies comply with the latest ATX 12V 2.3 specifications and meet the Haswell requirements. The cable lengths are very generous and a vast amount of connectors are given. The latest “state-of-the-art” +12V single rail technology is implemented which ensures that power hungry components such as multi-GPUs are serviced with a stable power flow. Even under full load, the large 120mm low noise fan rotates at max. 1500RPM and is barely audible.

The ECO series come in an eye-catching retail box including the European power cable.

Connectors:

24PIN

SATA

MOLEX

4PIN 12V

8PIN EPS (4+4)

6+2 PCIe

GPE-400S

1

4

2

1

x

x

GPE-500S

1

4

2

1

x

1

GPE-600S

1

6

2

x

1

2

GPE-700S

1

6

2

x

1

2

Technical specifications:

GPE-400S

GPE-500S

GPE-600S

GPE-700S

AC Input:

230V 3A

230V 5A

230V 6,3A

230V 6,3A

Frequency:

50 Hz

50 Hz

50 Hz

50 Hz

+5V:

15A

20A

22A

22A

+3,3V:

21A

21A

22A

22A

+5V & +3,3V combined:

103W

103W

120W

130W

+12V 1:

30A

37,5A

45A

52,5A

P.F.:

>0,9

>0,9

>0,9

>0,9

-12V:

0,3A

0,3A

0,3A

0,3A

+5VSB:

2,5A

2,5A

2,5A

2,5A

Maximum Load:

400W

500W

600W

700W

.
ParametryPorovnání
*Výkon zdroje (ve W)
600
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
Molex
Konektory
SATA 15-pin
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
85+
Modulární kabeláž
Ne
Výkon zdroje (W)
600
