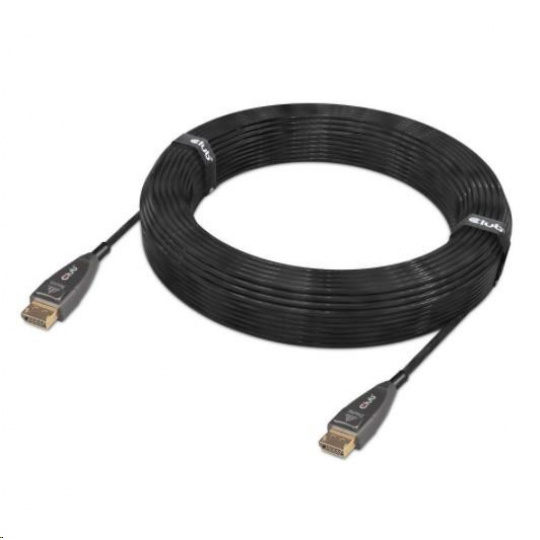

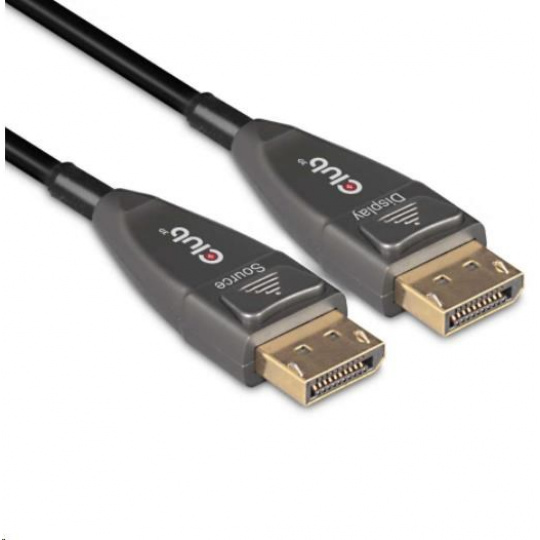

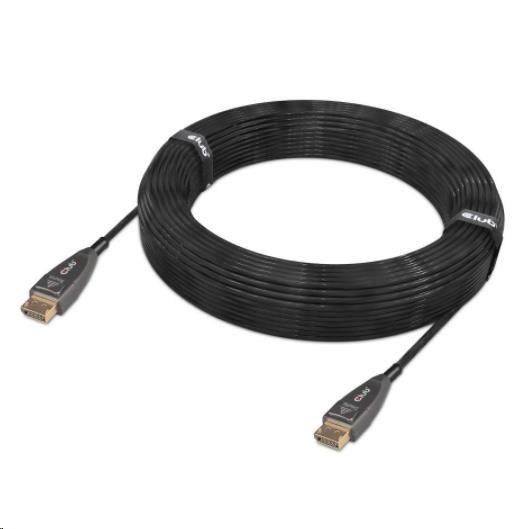

Club3D Kabel DisplayPort 1.4 Active Optical Unidirectional 4K120Hz 8K60Hz (M/M), 20m
DisplayPort 1.4 Active Optical Cable Unidirectional 4K120Hz 8K60Hz M/M 20m/65.62ft
The Club 3D CAC-1079 is an Active Optical Unidirectional DisplayPort™ Cable that allows support for 8.1Gbps per channel. It supports 4K at 120Hz resolution as well as 8K at 60Hz and HDR formats. This optical fiber cable can be applied to outdoor displays, LED signboards, home cinema displays, conference rooms, medical imaging equipment or security systems to transfer audio and video signals.
This product has many features that enable it to perform in a superior manner. Among those features you will find:
- Support 4K at 120Hz or 8K at 60Hz and HDR formats • Supports HBR3, HDCP1.4/2.2
- Supports DP 1.4 standard with bandwidth of up to 8.1Gps per channel - total bandwidth of 32.4Gbps
- Support length of 20m/65.62ft*
- Maximum Pixel clock frequency is 810 Mhz
- OD 4.8 mm

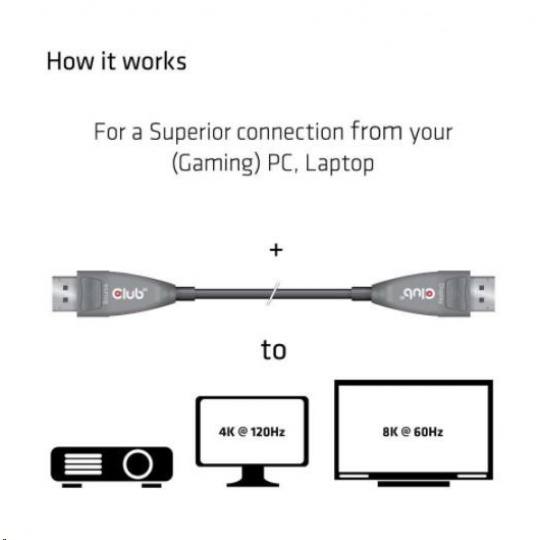

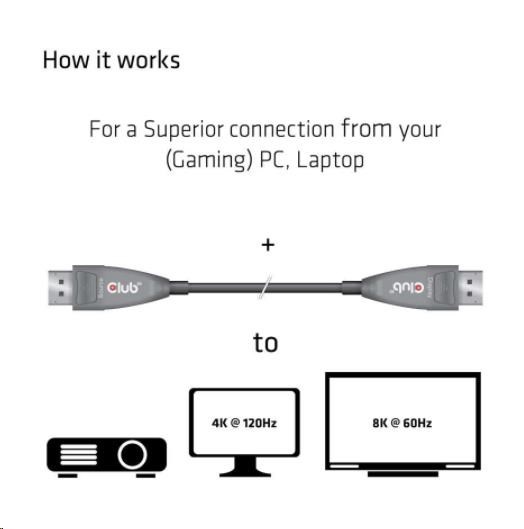

- Uni-directional - Meaning Source and Display Only
- This cable is Hybrid which means it is downwards compatible to other DisplayPort™ versions
- No external power supply is required
- Plug and Play no driver software required
*A maximum of 100m/328ft - please contact Club 3D
TECHNICAL SPECIFICATIONS
| OS Support | All |
| In the box | DisplayPort™ 1.4 Active Optical Cable Uni-directional 4K120Hz 8K60Hz M/M 20m/65.62ft |
| Available Interfaces | Input: DisplayPort™ 1.4, Source Connection Male Output: DisplayPort™ 1.4, Display Connection Male |
| Box size | 23 x 23 x 5 cm / 9 x 9 x 1.97 inch |
| Cable Length approx. | 20 m / 65.62 ft |

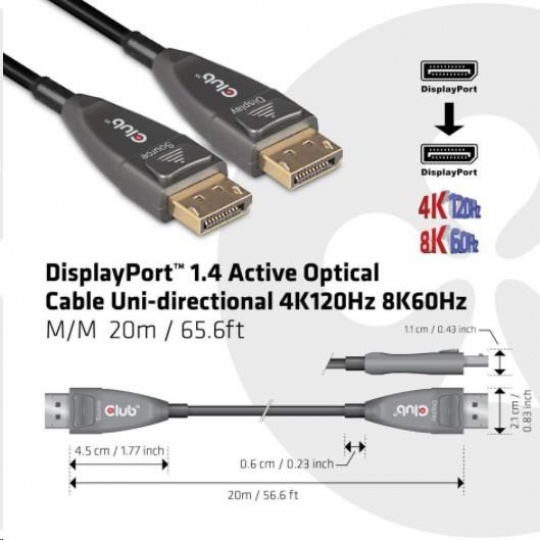

| Connector Dimensions | 4.5 x 2.1 x 1.1 cm / 1.77 x 0.83 x 0.43 inch |
| Cable Weight | 656 gr / 23.14 oz |
| Box Weight | 110 gr / 3.88 oz |
| LDPE Bag Weight | 11 gr / 0.39 oz |
| Total Weight | 777 gr / 27.4 oz |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.ParametryPorovnání
Input
DisplayPort
Output
DisplayPort
