TP-Link OMADA switch SG6428X (24xGbE,4xSFP+,2xUSB2.0,2xconsole)

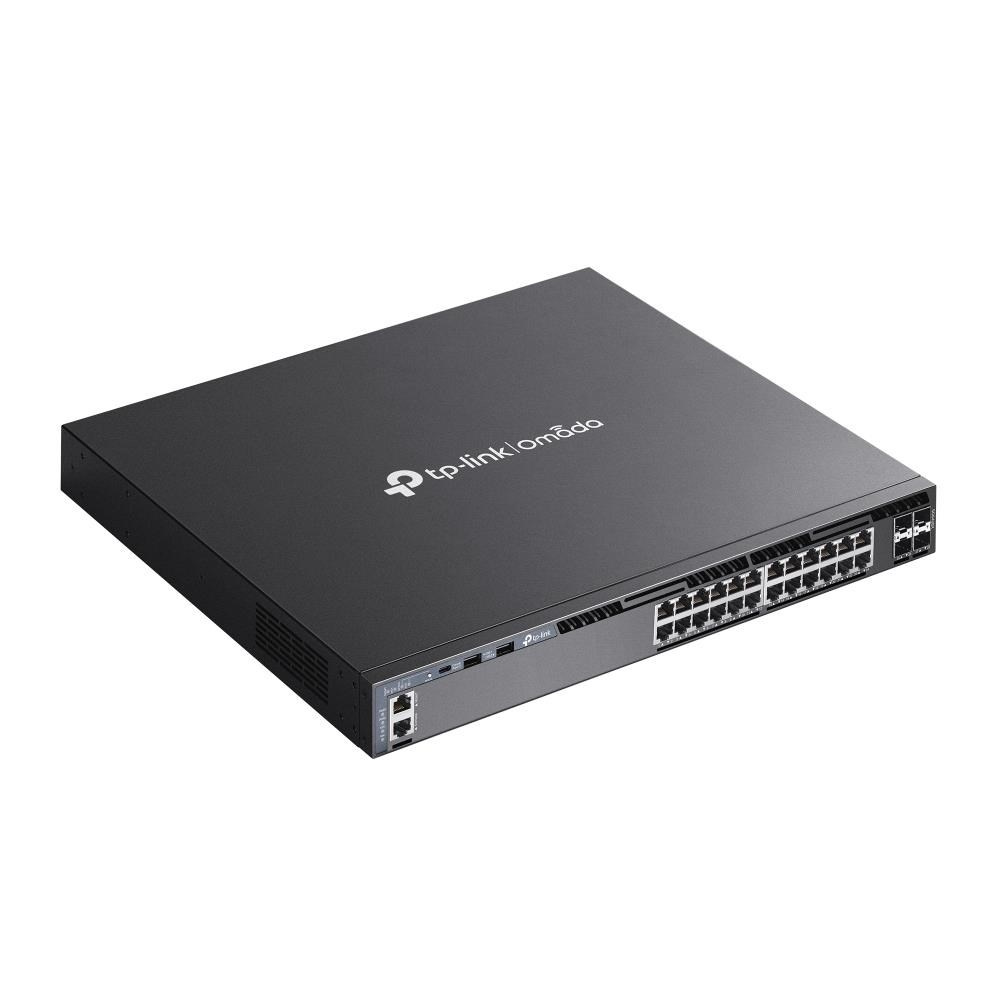

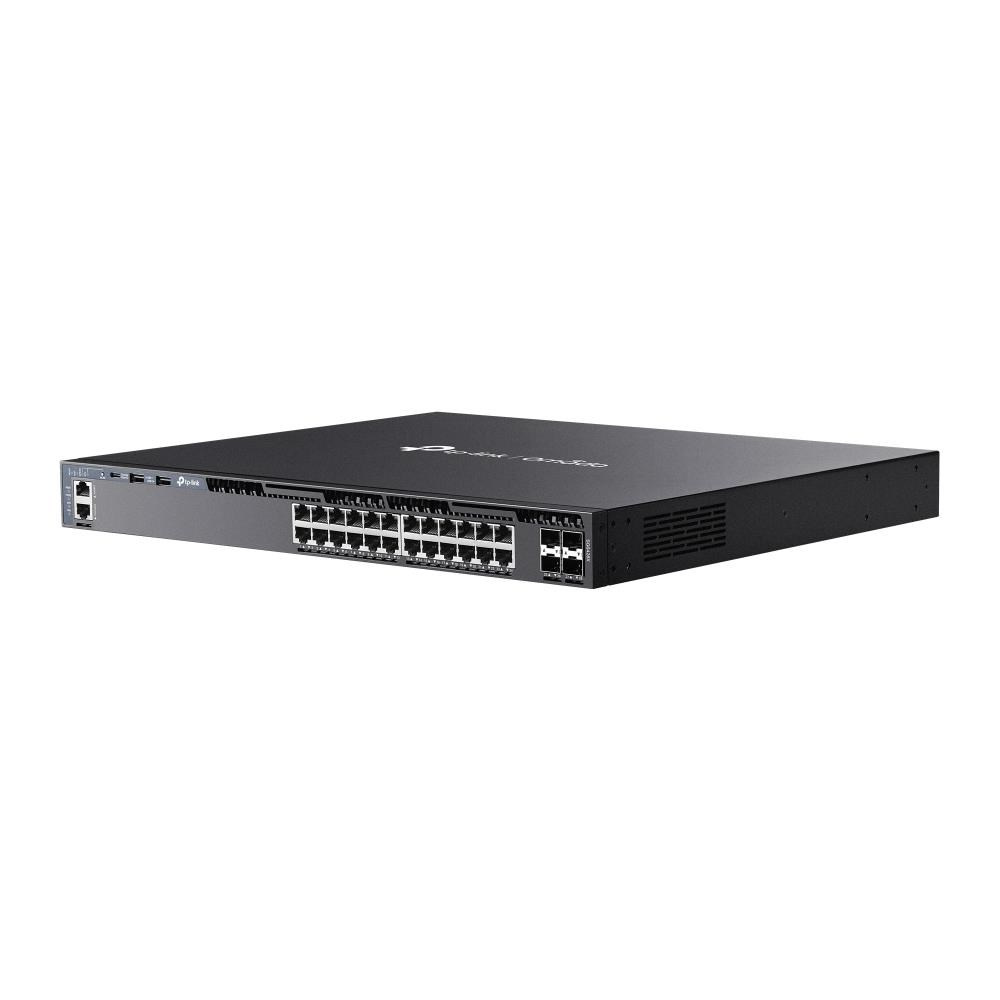

TP-Link OMADA switch SG6428X
Omada 24portový gigabitový stohovatelný spravovaný switch L3 se 4 sloty 10G
- 24× gigabitových portů RJ45 a 4× 10 Gb/s slotů SFP+
- Přepínací kapacita 128 Gb/s na jednotku
- Fyzické stohování pro integrovanou redundanci a výkonnost
- Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
- Vysoká dostupnost díky dvěma interním pevným zdrojům napájení, VRRP a ERPS
- Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
- Samostatná správa přes web, CLI, SNMP a RMON
Více informací o TP-Link PoE technologii >
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-l3-l2-managed/sg6428x
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port |
| Fan Quantity | Four Internal Fixed Fans |
| Power Supply | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) |
| Dimensions ( W x D x H ) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
| Mounting | Rackmountable |
| Max Power Consumption | 28.4 W (220 V/50 Hz) |
| Max Heat Dissipation | 96.91 BTU/hr (220 V/50 Hz) |
| PERFORMANCE | |
| Switching Capacity | 128 Gbps per Unit |
| Stacking | • Stacking Number: 8 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 80 Gbps (4 stack ports) |
| Packet Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 3 MB |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 256, IPv6: Max 256 • Static Routing - Max 1,024, IPv6: Max 512 • Host Route Table: Max 6,100 entries • RIP: Version v1/v2, Max 8,190 • OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 • VRRP: Version v2/v3, Max 64 groups • ECMP: 256 entries, max 32 ECMP Nexthops per Destination • Static ARP: 512 static entries • Dynamic ARP: 7,680 dynamic entries • Proxy ARP • DHCP Server: - Max 8K IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • Supports 2,048 IGMP groups • ERPS • Mirroring • RSPAN • MAC Address Table • PIM-DM (IPv4) • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 200 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • VLAN VPN • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • EEE |
| OTHERS | |
| Package Contents | • SG6428X Switch • 2× Power Cords • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
Technologie
Gigabit ethernet + 10 Gigabit optika
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Rozšiřitelnost
Provedení
Rack mounted 19"
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Funkce
Stohovatelnost
Funkce
L3
Ventilátor
Ano
Počet portů LAN
24
Přenosová rychlost LAN (Mb/s)
1000
Maximální počet portů
28
Počet SFP+ portů
4
