TP-Link OMADA switch SG2210P (8xGbE, 2xSFP, 8x PoE+, 61W, fanless)

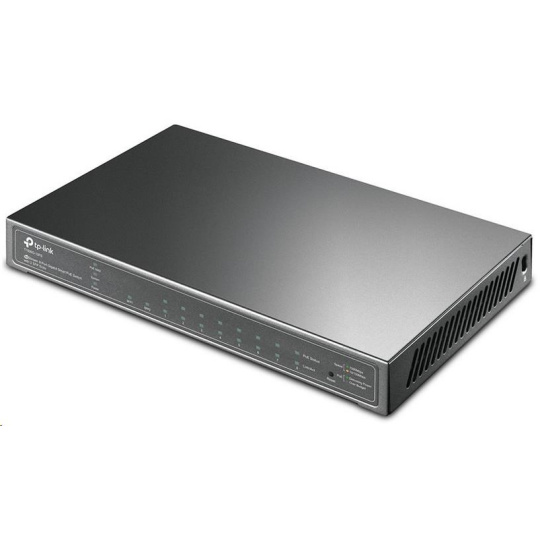

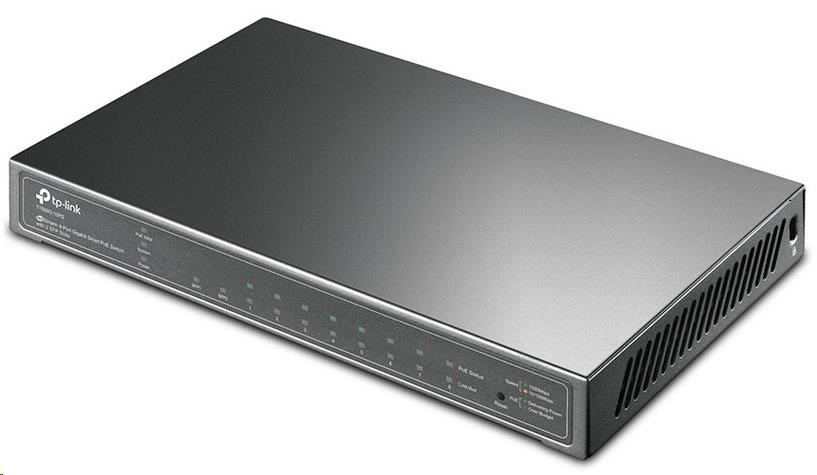

TP-Link OMADA switch SG2210P
10portový gigabitový inteligentní switch s 8 porty PoE+ a 2 SFP porty
- PoE s rozpočtem napájení 61 W: 8 portů PoE+ vyhovujících standardu 802.3af/at s celkovým napájecím výkonem 61 W.
- Plně gigabitové porty: 8 gigabitových portů PoE+ a 2 sloty SFP poskytují vysokorychlostní připojení.
- Integrováno do platformy Omada SDN: Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování
- Centralizovaná správa: Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Robustní strategie zabezpečení: Funkce vázání na adresu IP-MAC, ACL, zabezpečení portů, ochrana proti útokům DoS, funkce Storm Control, funkce DHCP Snooping, ověřování protokolem 802.1X a Radius a další funkce.
- Optimalizované hlasové a video aplikace: L2/L3/L4 QoS a funkce IGMP Snooping.
- Samostatná správa: Webové rozhraní, CLI (Telnet, SSH), SNMP, RMON a funkce Dual Image přináší pokročilé možnosti správy.
Více informací o technologii TP-Link PoE >
Zjistit více o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2210p/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |

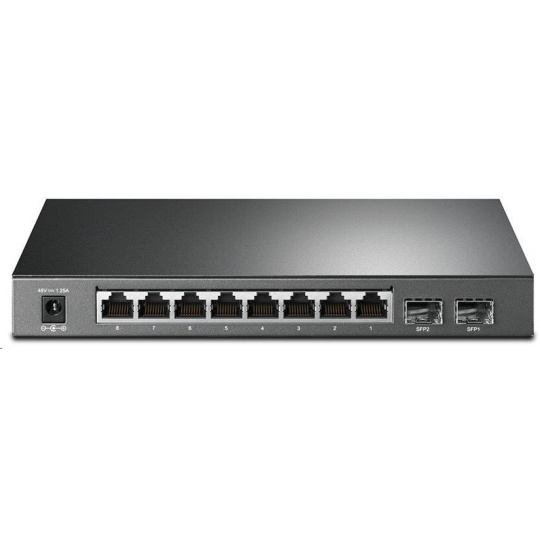

| Interface | 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60Hz External Power Adapter(Output: 53.5VDC/1.31A) |
| Power Consumption | • 10.3 W (220 V/50 Hz) (no PD connected) • 76.5 W (220 V/50 Hz) (with 61 W PD connected) |
| PoE Ports (RJ45) | • Standard: 802.3af/at compliant • PoE Ports: 8 Ports • Power Supply: 61 W* |
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| Mounting | Desktop / Wall-Mounting |
| Max Power Consumption | • V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected) • V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected) • V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected) |
| Max Heat Dissipation | • V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected) • V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected) • V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Bandwidth/Backplane | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Management | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) • OC300 • OC200 • Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller |
| Cloud Access | Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) • OC300 • OC200 • Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2210P Power Adapter Installation Guide Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
.
ParametryPorovnání
Maximální počet portů
10
Technologie
Gigabit Ethernet 1000Mbps
Management
SNMP/RMON
Management
Web
Vlastnosti switche
Funkce POE po portech
Provedení
Desktop
Přenosová rychlost LAN (Mb/s)
1000
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
VLAN (virtual local area network)
Funkce
QoS (Quality of service)
Funkce
Web management/Smart switch
Počet SFP portů
2
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3af
Počet portů LAN
8
Ventilátor
Ne
Počet PoE+ portů
8
PoE budget (W)
61
Počet portů LAN
8
Maximální počet portů
10
Počet SFP portů
2
Počet PoE+ portů
8
