TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

Name: TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)
Brand: TP-link
SKU: 324281
Price: 1509 CZK
Availability: InStock

-13%

Kód: 324281

EAN: 8885020620931

Záruka: 60 Měsíc(ů)

Výrobce: TP-link

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse (0)

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

ParametryPorovnání

Technologie

Gigabit Ethernet 1000Mbps

Management

Web

Provedení

Desktop

Funkce

PoE (Power over ethernet)

Funkce

QoS (Quality of service)

Funkce

VLAN (virtual local area network)

Funkce

DHCP snooping

Funkce

Web management/Smart switch

Podporované standardy PoE

802.3af

Podporované standardy PoE

802.3at

Ventilátor

Počet portů LAN

Maximální počet portů

PoE budget (W)

Počet PoE+ portů

Tato položka nebyla doposud diskutována. Pokud chcete být první, klikněte na tlačítko Přidat příspěvek

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

HARDWARE FEATURES
Interface	• 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless

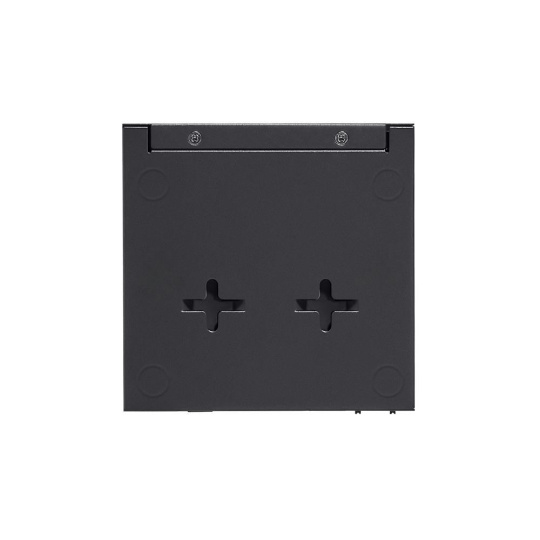

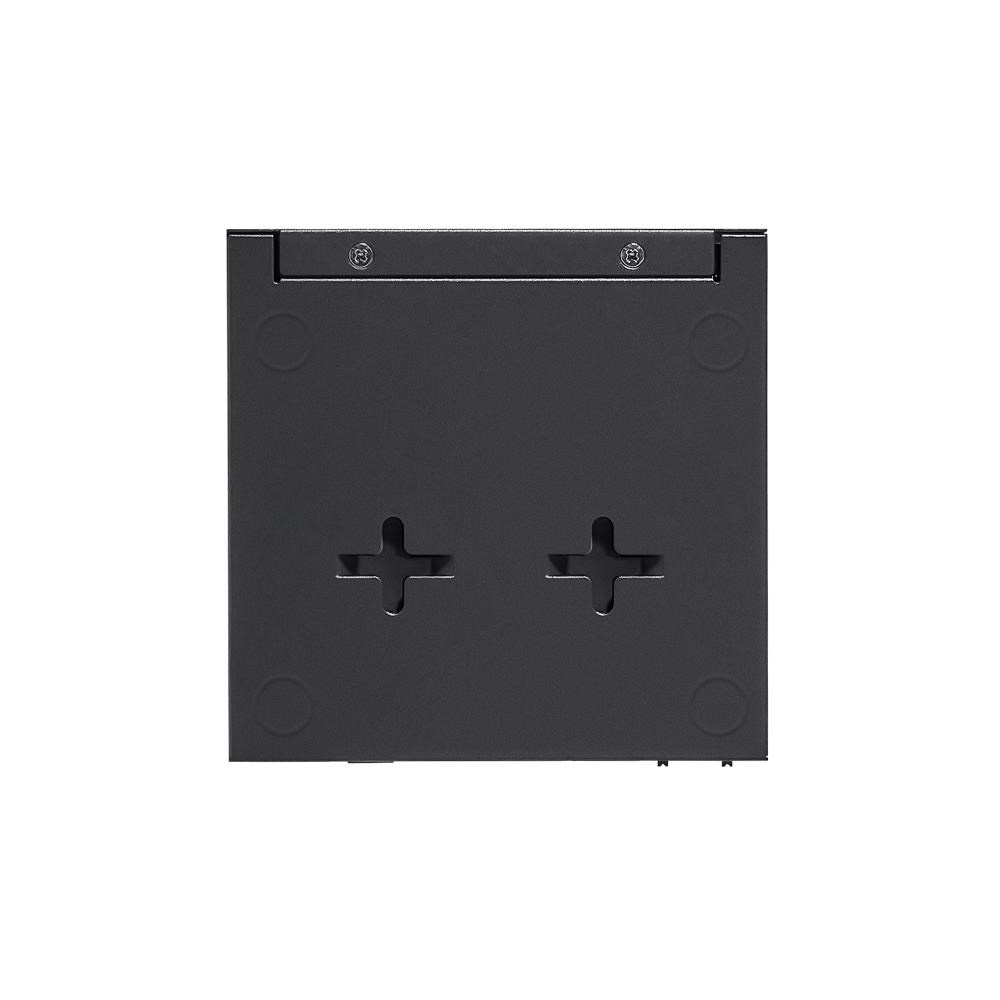

Installation	• Desktop • Wall Mount
Physical Security Lock	?

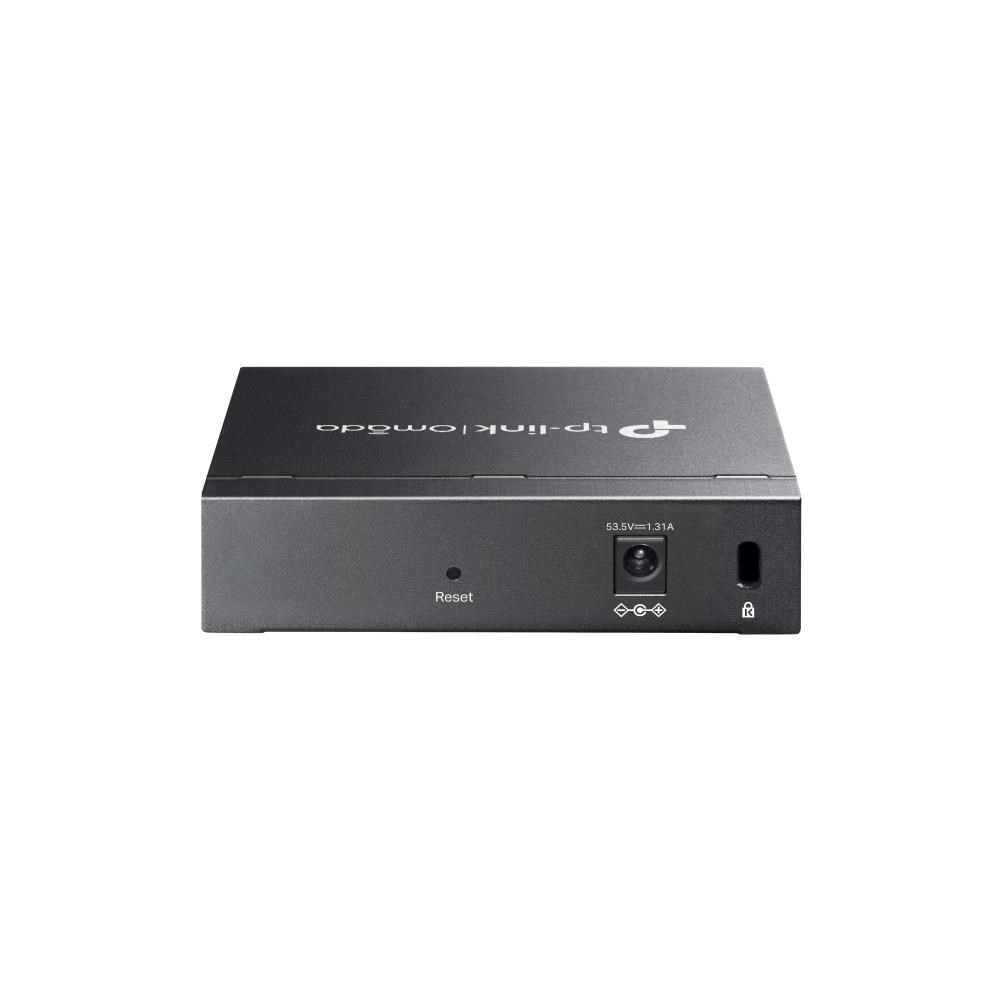

Power Supply	DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45)	• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65 W available for all PoE+ ports, 30W max per port • PoE Auto Recovery‡ • Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	3.9×3.9×1.0 in (100×98×25 mm)
PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
MANAGEMENT
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Contents	• ES205GP • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

Vaše jméno:
Váš e-mail:
Váš vzkaz:

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)

TP-Link OMADA switch ES205GP

Omada 5portový gigabitový Easy Managed Switch se 4 porty PoE+

TP-Link OMADA switch ES205GP (5xGbE,4xPoE+,65W, fanless)
