TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)

Name: TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)
Brand: TP-link
SKU: 324482
Price: 3309 CZK
Availability: InStock

-13%

Kód: 324482

EAN: 1210002602402

Záruka: 60 Měsíc(ů)

Výrobce: TP-link

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

Diskuse (0)

TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)

ParametryPorovnání

Technologie

Gigabit ethernet + Gigabit optika

Management

SNMP/RMON

Management

Web

Vlastnosti switche

Funkce POE po portech

Provedení

Desktop

Funkce

QoS (Quality of service)

Funkce

VLAN (virtual local area network)

Funkce

PoE (Power over ethernet)

Funkce

DHCP snooping

Funkce

Web management/Smart switch

Podporované standardy PoE

802.3af

Podporované standardy PoE

802.3at

Ventilátor

Počet portů LAN

Maximální počet portů

Počet SFP portů

PoE budget (W)

Počet PoE+ portů

Tato položka nebyla doposud diskutována. Pokud chcete být první, klikněte na tlačítko Přidat příspěvek

TP-Link OMADA switch SG2206MP (5xGbE,1xSFP,4xPoE+,63W,fanless)

HARDWARE FEATURES
Interface	• 4× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP Slot
Physical Security Lock	?

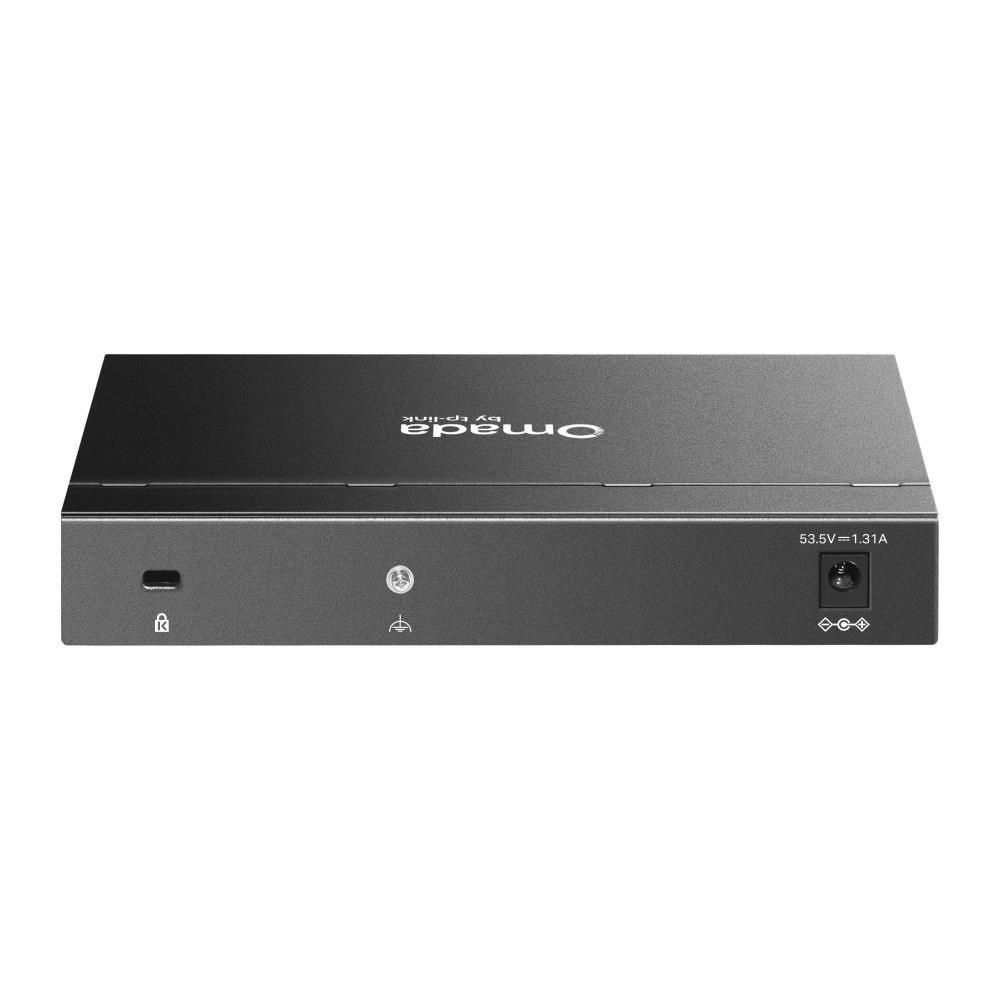

Power Supply	53.5 VDC / 1.31 A
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 4 Ports • PoE Power Budget: 63 W* • Fast PoE • Perpetual PoE
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Mounting	Desktop / Wall Mounting
Max. Power Consumption	73.7 W (110V/60Hz) (with 63 W PD connected)
Max. Heat Dissipation	250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)
PERFORMANCE
Switching Capacity	12 Gbps
Packet Forwarding Rate	8.93 Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	• 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED • Spanning Tree - STP (802.1d) - RSTP (802.1w) - MSTP (802.1s) - STP Security: TC Protect, BPDU Filter/Protect, Root Protect
L2 Multicast	• 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
VLAN	• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 16 Entries • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Support up to 230 entries • Time-Range • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding
Security	• IP-MAC-Port Binding • AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection - ND Snooping • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
MIBs	• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • IEEE 802.1az Energy Efficient Ethernet (EEE) • SNTP • System Log • Digital Diagnostic Monitoring (DDM) • Operation Administration and Maintenance (OAM)
OTHERS
Certification	CE, FCC, RoHS
Package Content	• SG2206MP • Power Adapter • Power Cord • Rackmount Kit • Rubber Feet • Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5–40 ? (23–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH, non-condensing • Storage Humidity: 5–90% RH, non-condensing
